ENGINE AND PERIPHERALS
Overhauling the engine
10
10-49

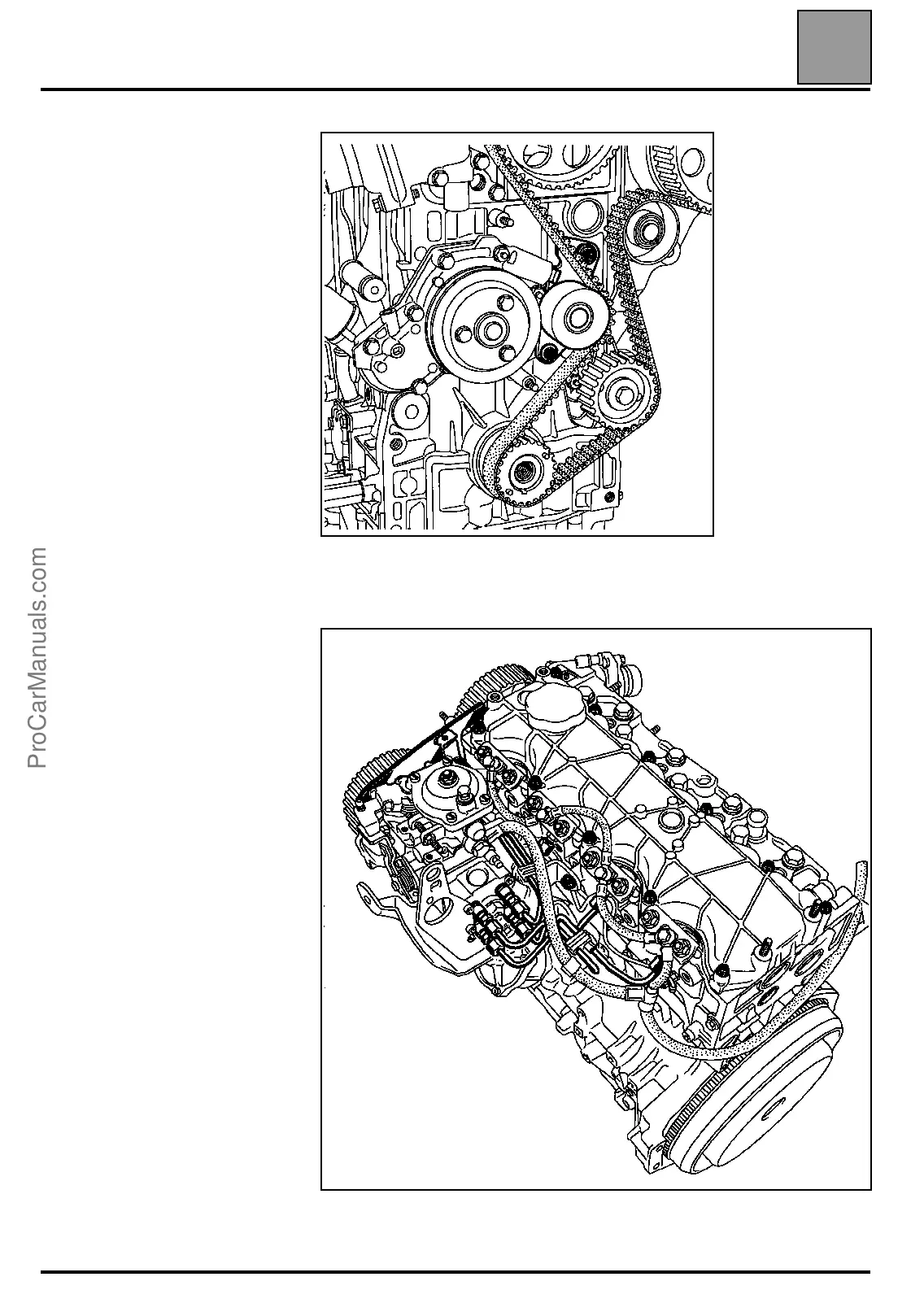

Remove the TDC setting rod
Mot. 861 or Mot. 1054.
Slacken and then re-tighten the
tensioner in order to remove the
timing belt.
Remove:
– the fuel return pipes,
– the high pressure pipes on the
injection pump using Mot. 1383,
– the cold start coolant pipe,
– the injection pump rear
mounting bolt on the cylinder
head,
– the timing cover support,
– the rocker box cover.
