ENGINE AND PERIPHERALS
Overhauling the engine
10
10-96

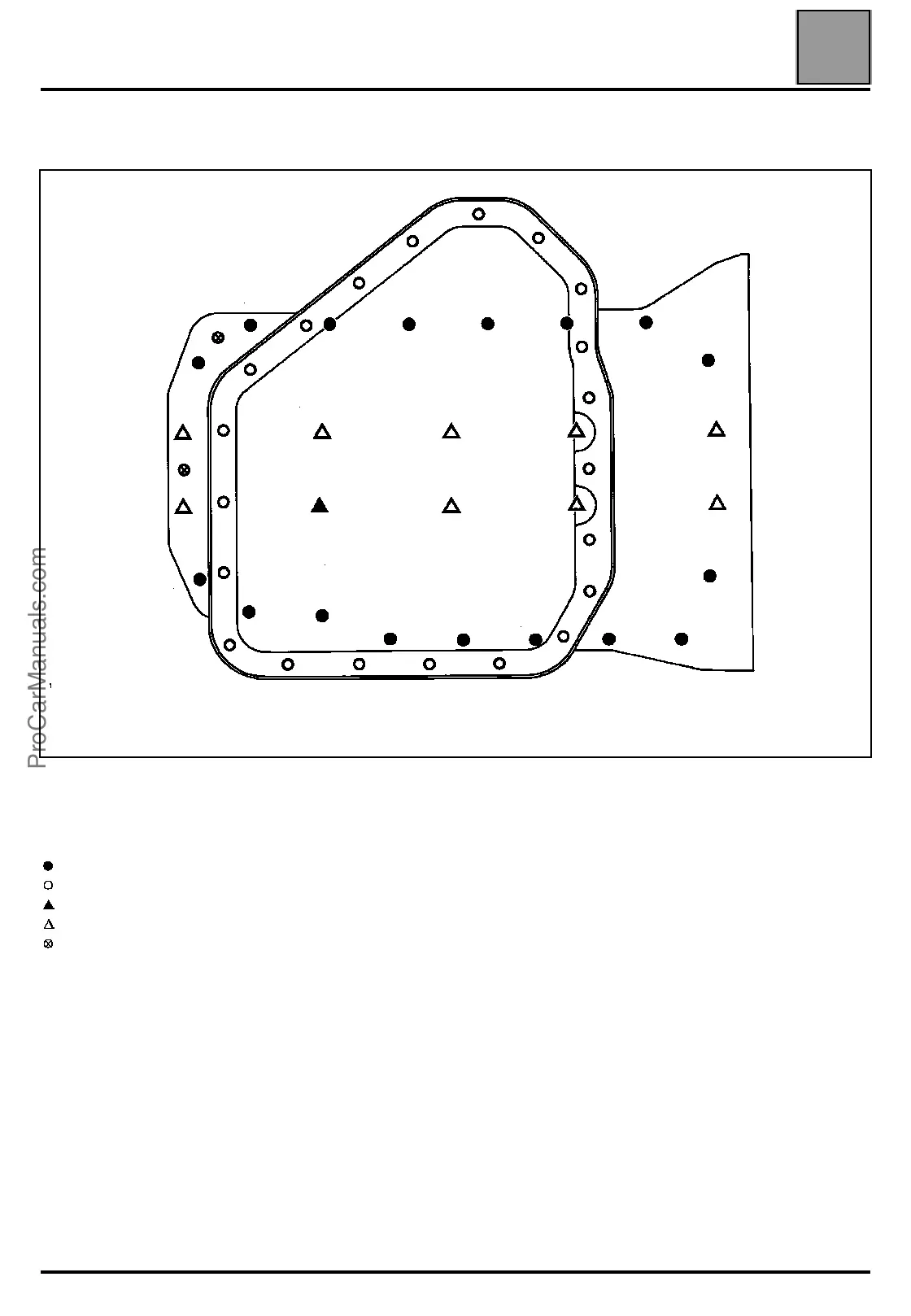

Marking of the bolts fitting the plate to the cylinder block plate and the sump to the plate.
NOTE: the plate gasket is fitted dry.
Four types of bolt marked as follows:
: 17 bolts (M7 x 100-50), tightening torque: 1.2 to 1.8 daNm
: 21 bolts (M6x100-16), tightening torque: 0.7 to 1.1 daNm
: 1 bolt (M10x150-40), tightening torque: 3.2 to 4.8 daNm
: 9 bolts (M10x150-75), tightening torque: 3.2 to 4.8 daNm
: bolt not used
Fit and tighten the oil pump body (4 to 4.5 daNm).
(Ensure that the drive shaft and pinions are correctly positioned).
Remove the threaded centring rods and fit the bolts.
