TOP AND FRONT OF ENGINE
Timing belt
11
15106S
15163-2S

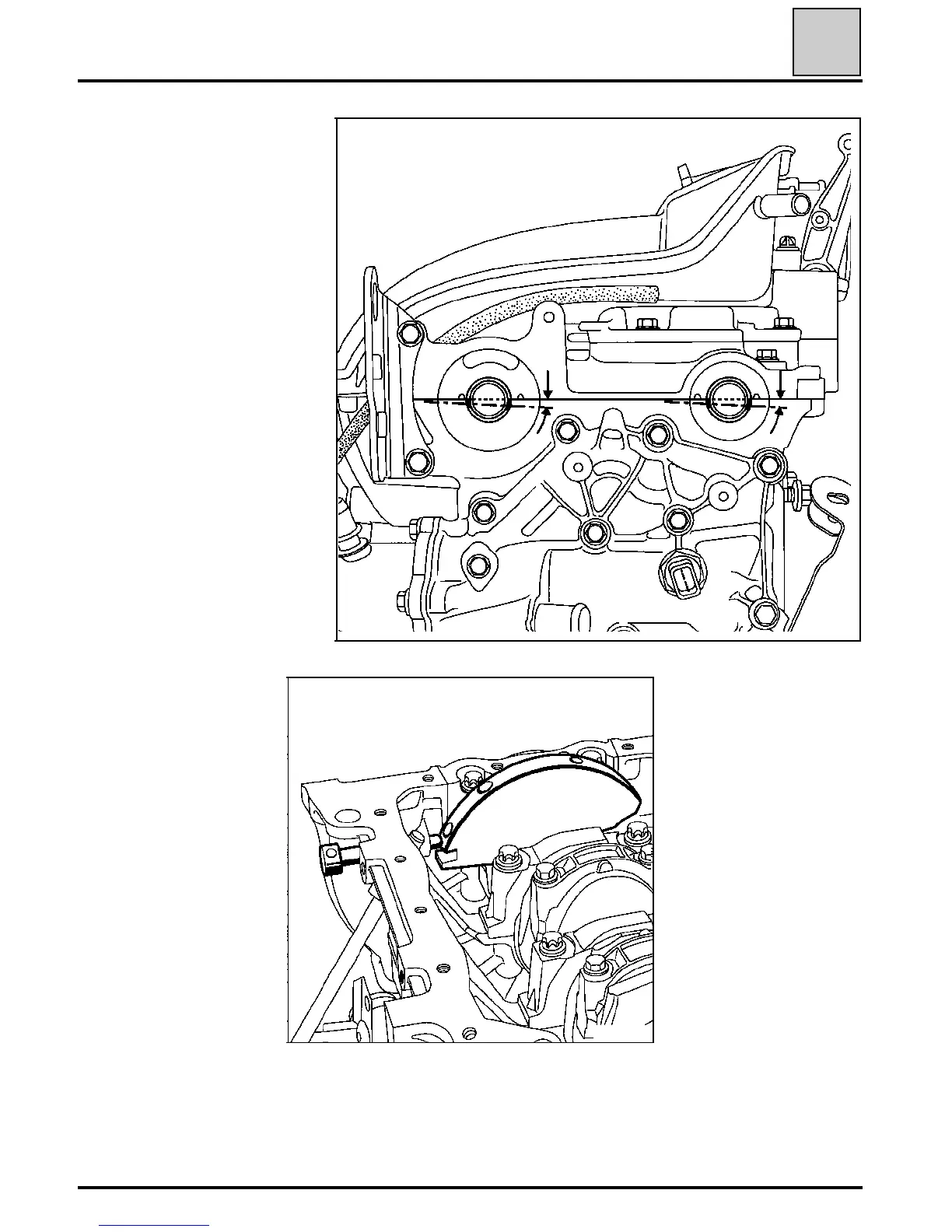

Positioning the timing at the
setting point
Procedure
Position the camshaft grooves
downwards and almost hori-
zontal as indicated below,
then insert the Top Dead
Centre pin Mot. 1054 to be
between the balancing hole
and the crankshaft setting
groove.
11-3
