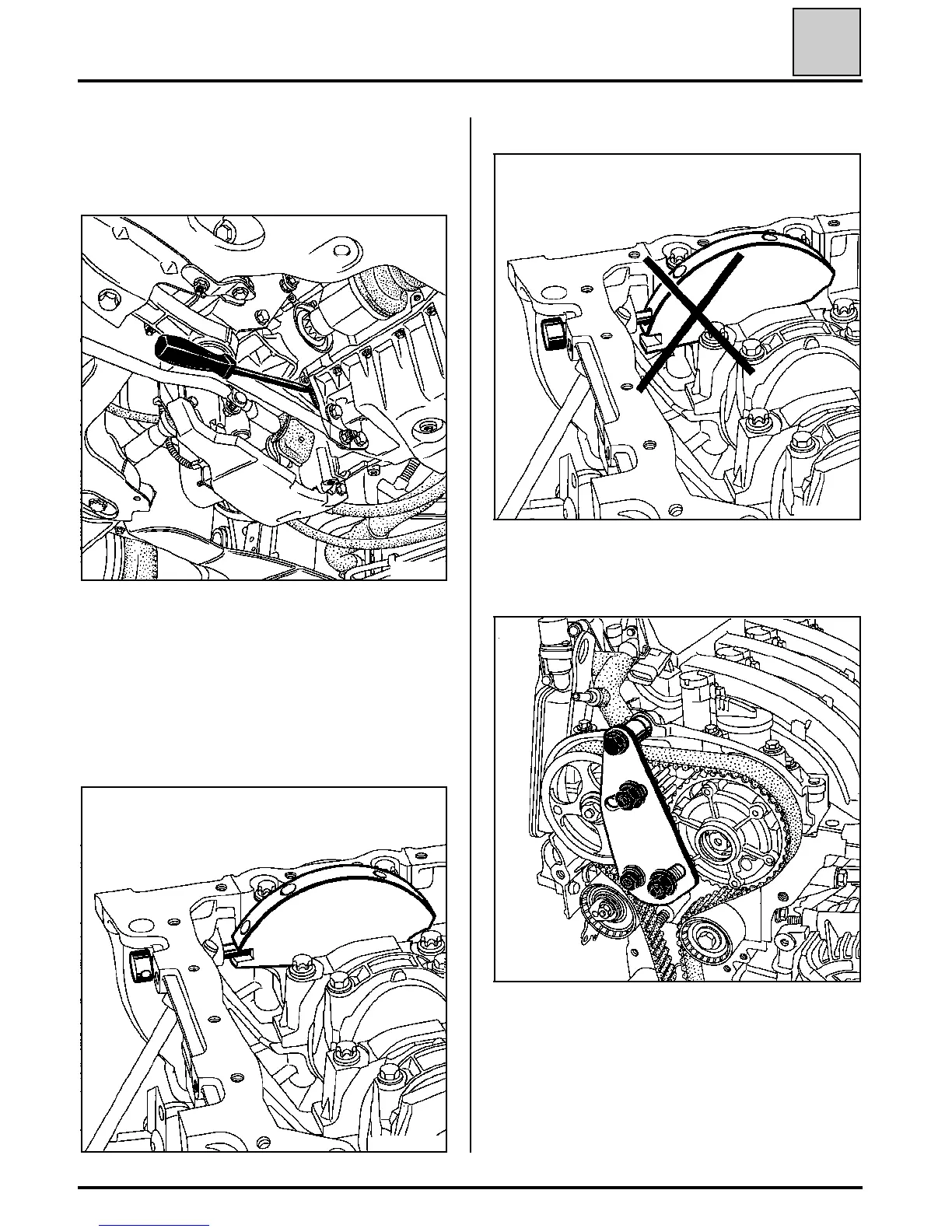

TOP AND FRONT OF ENGINE
Timing belt
11
15303S
15163-1S
Incorrect position
15163S
Fit the camshaft pulley immobilising tool Mot.
1509 fitted with the accessory Mot. 1509-01.
16019-6S
Pin the crankshaft using the marks made earlier
between the camshaft pulleys and the camshaft
bearing cap housing. The marks must be aligned
as this ensures that the pin is in the pin hole and
not in the crankshaft balancing hole.
Correct position
Immobilise the engine flywheel using tool Mot.
582-01 or a large screwdriver, then turn the acces-
sories crankshaft pulley bolt through an angle of
115°± 15°.
11-17
