TOP AND FRONT OF ENGINE
Timing belt
11
15106-1S
15104R
16019-7R
Checking the setting
Ensure that the tensioner
marks are positioned correctly
before checking the timing set-
ting.

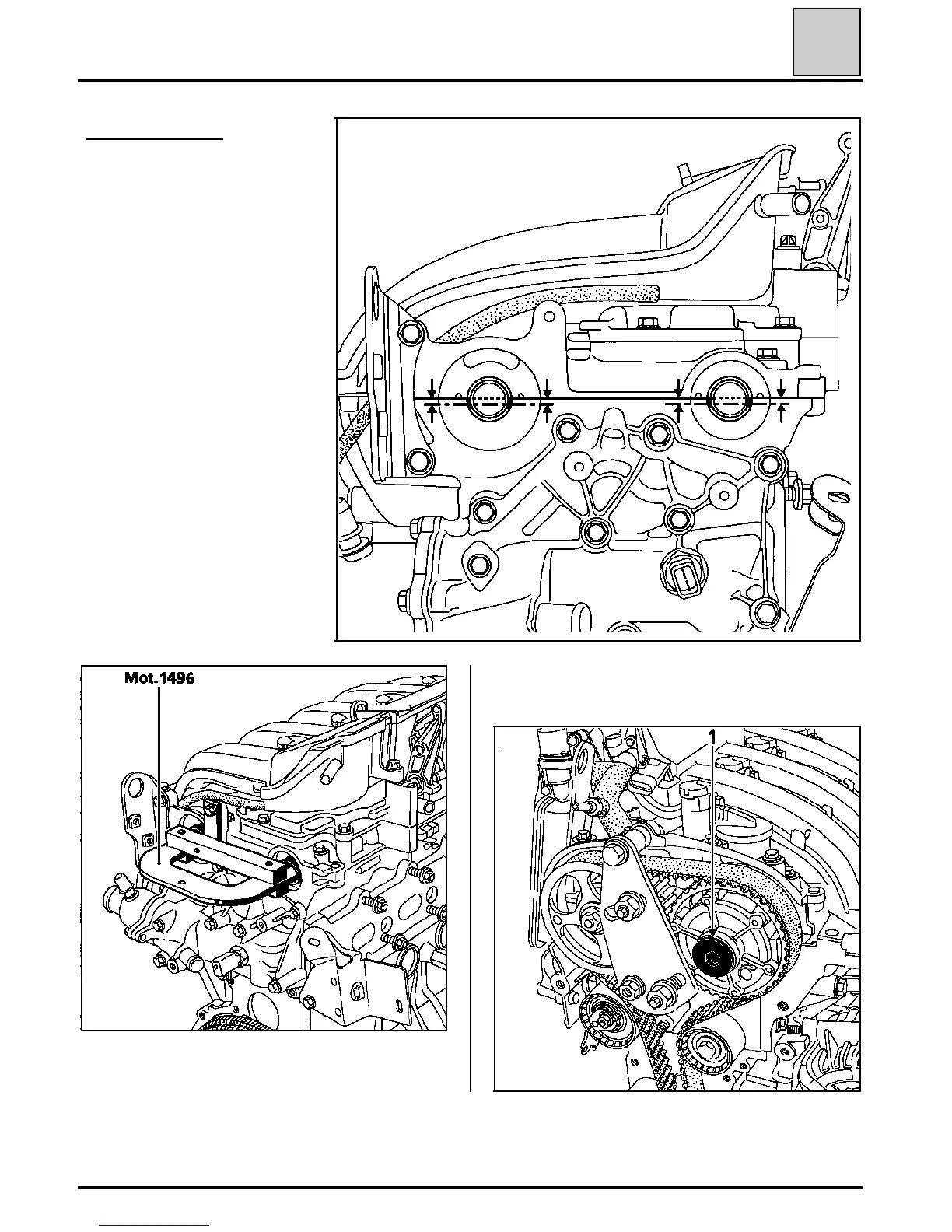

Fit the Top Dead Centre pin
(check that the marks made on
the camshaft pulleys by the
operator are aligned).
Fit (without using force) cams-
haft setting tool Mot. 1496
(the camshaft grooves should
be horizontal and offset down-
wards). If the tool does not en-
gage, the timing setting and
tensioning procedure must be
repeated.
Refit the phase shifter blanking piece (1) (fitted
with its new seal) tightening it to a torque of 2.5
daN.m.
11-19
