TOP AND FRONT OF ENGINE
Timing belt
11
15106S
15163-2S
Setting the timing
WARNING: it is essential to de-
grease the end of the cranks-
haft, the bore and the contact
surfaces of the crankshaft pi-
nion and the contact surfaces
of the crankshaft pulley to pre-
vent sliding between the ti-
ming and the crankshaft which
could destroy the engine.

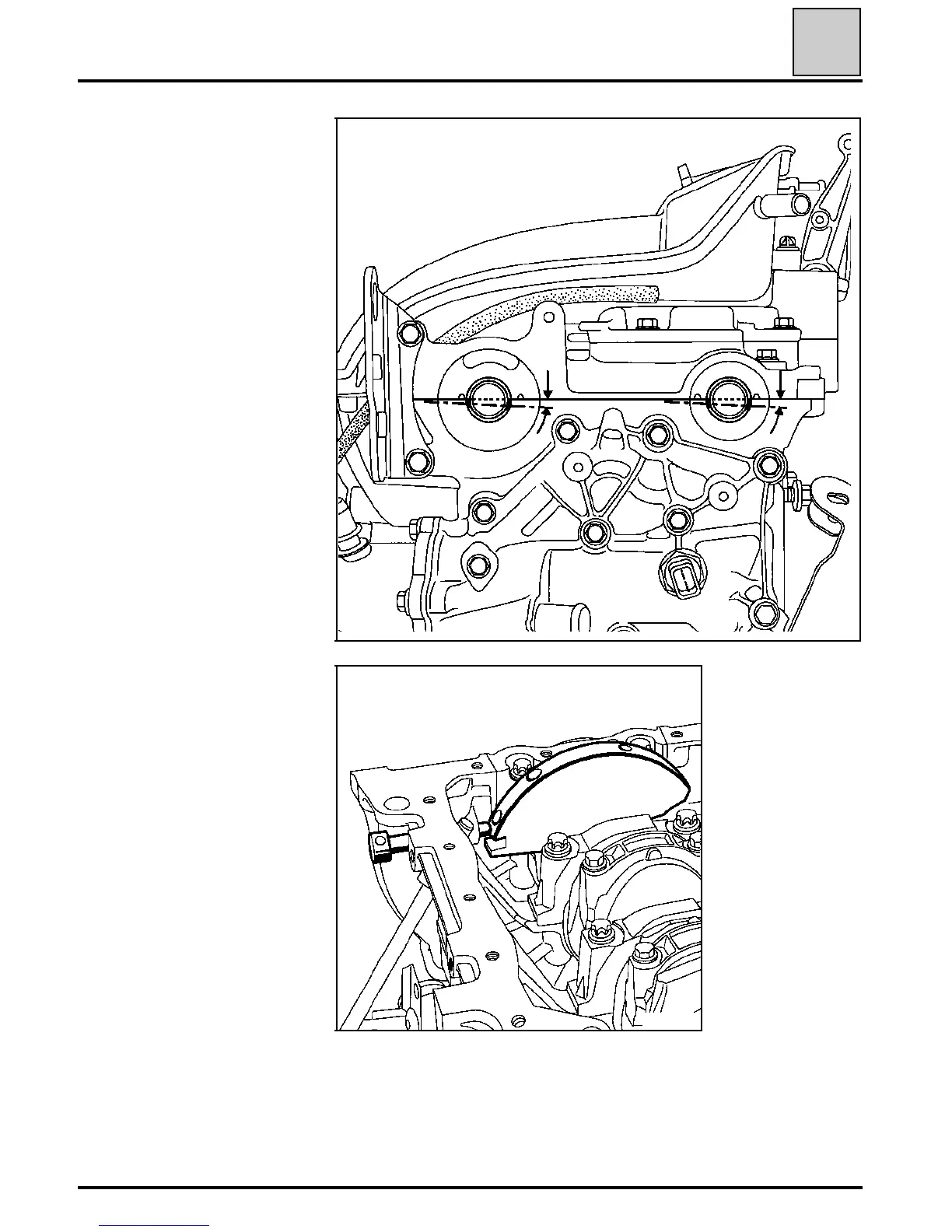

Position the camshaft grooves
downwards and almost hori-
zontal as indicated in the dia-
gram below, then insert the
Top Dead Centre pin Mot. 1054
to be between the balancing
hole and the crankshaft set-
ting groove.
11-22
