2.28
3
C
B
A

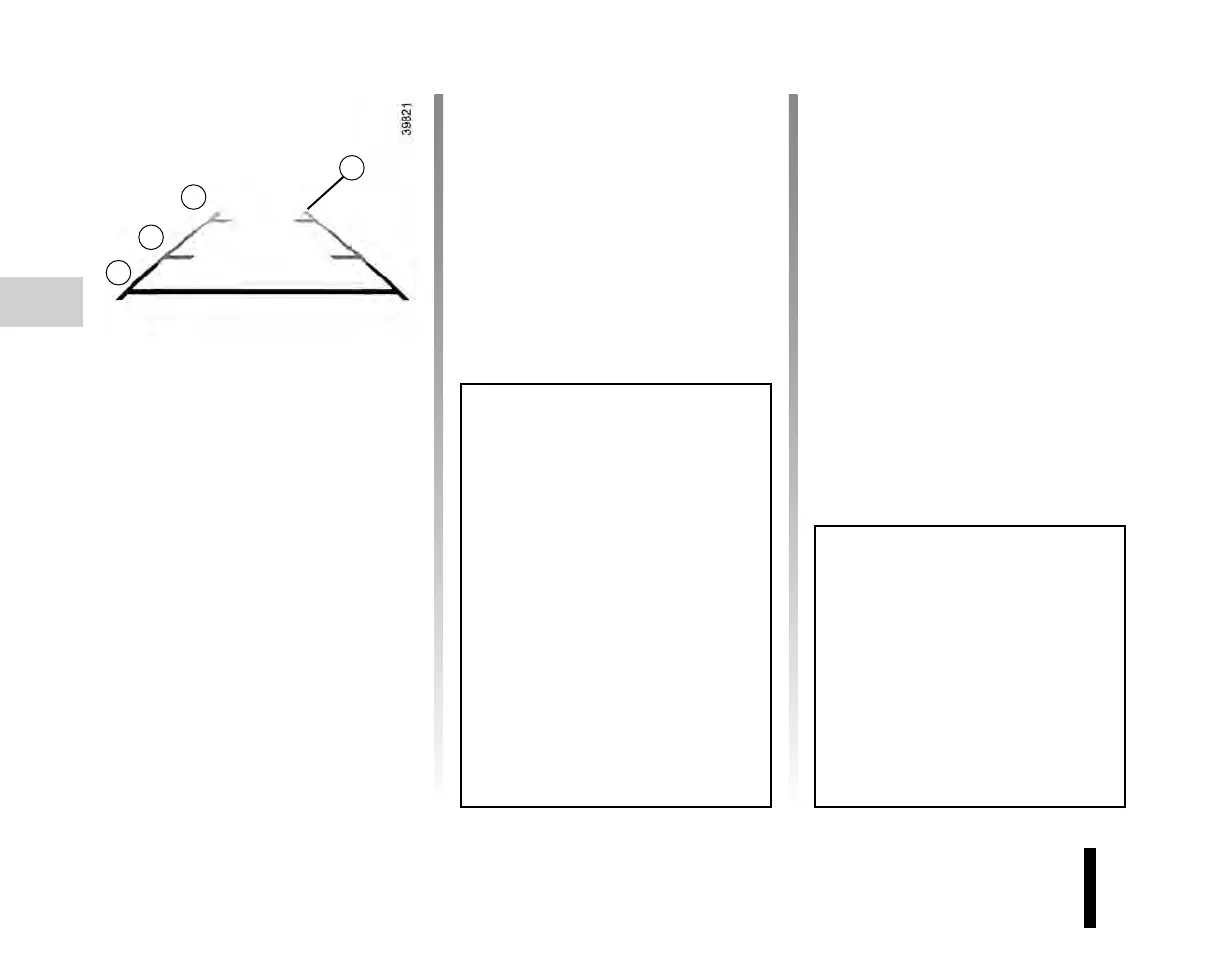

Static guide line 3:
The static guide line 3 has coloured
markers A, B and C showing the dis-
tance behind the vehicle:
– A (red) approximately 30 centime-
tres from the vehicle;
– B (yellow) approximately 70 centi-
metres from the vehicle;
– C (green) approximately 150 centi-
metres from the vehicle.
This gauge 3 remains fixed and indi-
cates the vehicle trajectory if the wheels
are in line with the vehicle.
The screen shows a reverse image.
The
frames are a representation
projected onto flat ground; this in-
formation must not be taken into
account when superimposed on a
vertical object or an object on the
ground.
Objects which appear on the edge
of the screen may be deformed.
In very bright light (snow, vehicle in
sunshine etc.), the camera vision
may be adversely affected.
REVERSING CAMERA (2/2)
The rear camera display will not
work if the vehicle speed exceeds
30 Kmph
