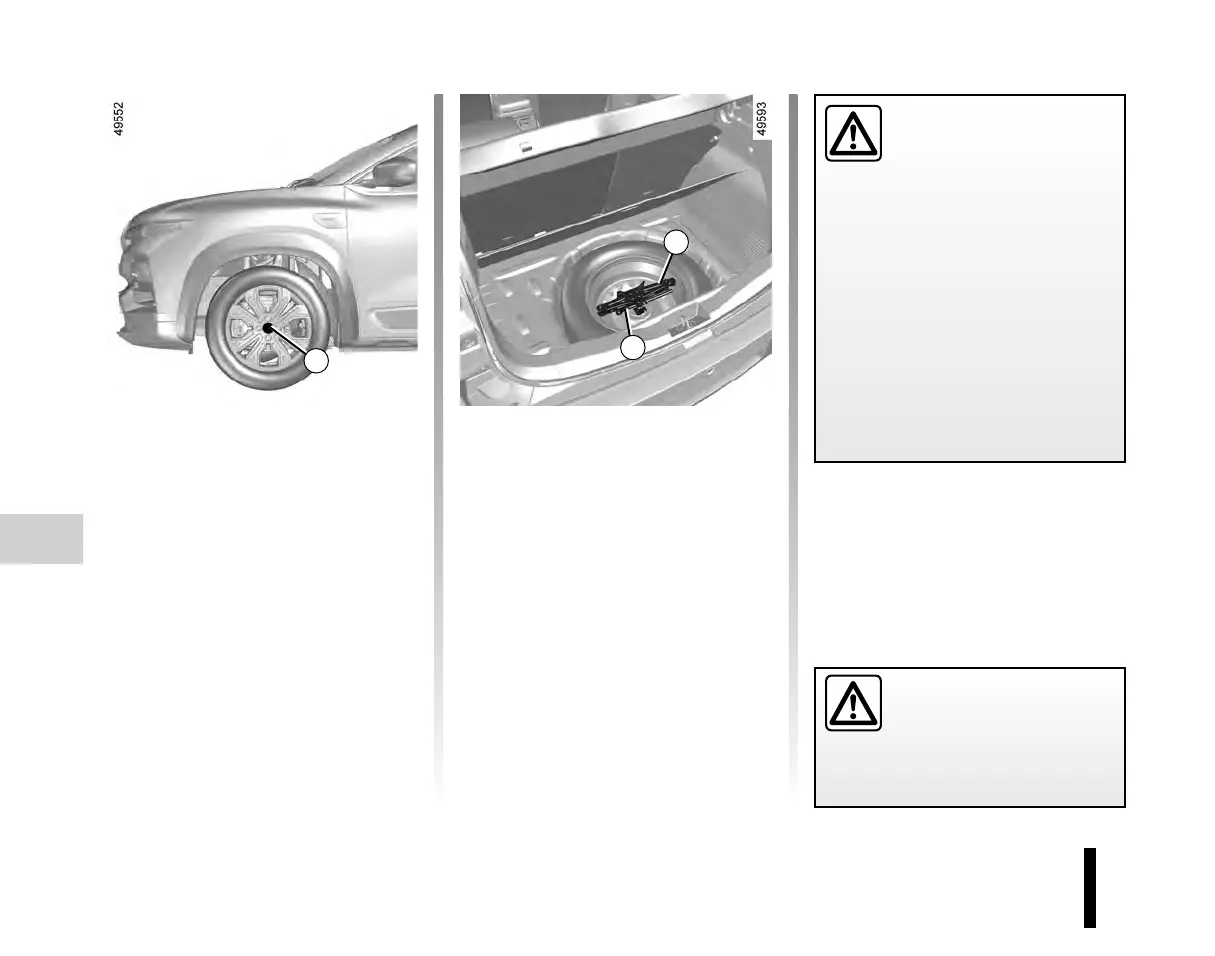

5.4
WHEEL TRIM, TOOLS
Central wheel trim with
visible wheel bolts
(example: wheel trim 1)
Depending on the version,the bolts are
accessible directly or after removing
the wheel cap.
Never leave tools unse-
cured in the vehicle: there
is a risk that they may be
thrown about during brak-
ing. After use, make sure the tools
are correctly positioned in their
housings: there is a risk of injury.
The jack is designed for wheel
changing purposes only. Under no
circumstances should it be used for
carrying out repairs underneath the
vehicle or to gain access to the un-
derside of the vehicle.
Accessing the tools
Jack 2 and wrench 3 are placed inside
the spare wheel in the luggage com-
partment.
To access the tools, open the tail gate
and lift the trunk carpet. Refer to the in-
structions in Chapter 5,” PUNCTURE,
EMERGENCY SPARE”.
1
Jack must be placed only in
specific places provided for
it. Placing jack against Rear
Axle or Front Transversal
Link is strictly prohibited.
2
3
