5.10
Low beam Headlights
– keep the engine in OFF condition;
– Tilt the steering towards Right hand
side completely to access the left
side headlamp;
– Remove the flap/ cover 1 from the
under fender/ Wheel;
– Remove head Lamp Dust cover 3 ;
– Disconnect the Bulb wiring harness;
– Unclip the spring and remove the
bulb;
– Repeat the same process to access
right side headlamp by tilting the
steering towards left hand side.
Bulb type: H7
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

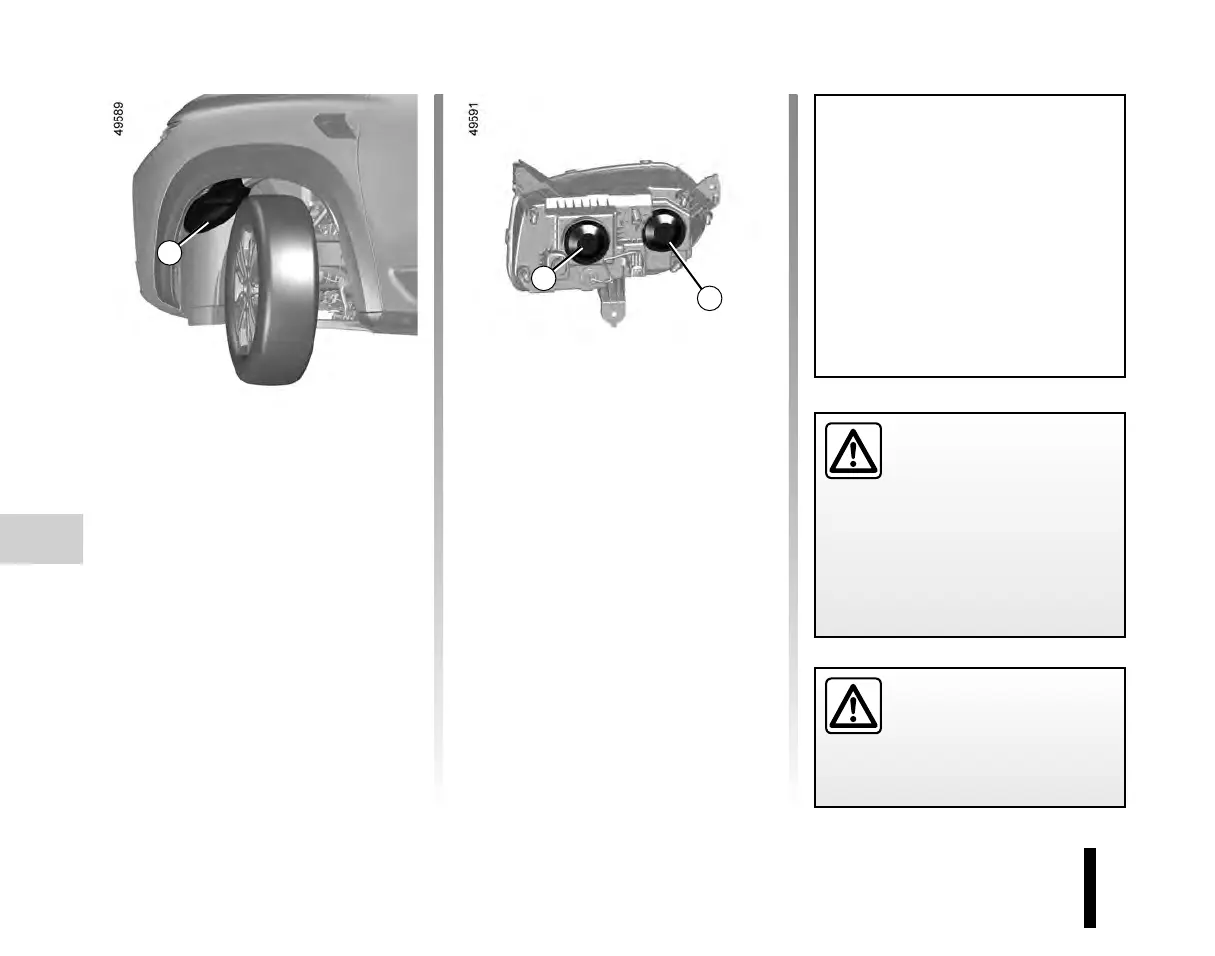

FRONT LIGHTS-CHANGING BULBS
1
Main beam Headlights
– keep the engine in OFF condition;
– Tilt the steering towards right hand
side completely to access the left
side headlamp;
– Remove the flap/ cover 1 from the
under fender/ Wheel;
– Remove head Lamp Dust cover 2 ;
– Disconnect the Bulb wiring harness;
– Unclip the spring and remove the
bulb;
– Repeat the same process to access
right side headlamp by tilting the
steering towards left hand side.
Bulb type: H7
3
2
The headlamps can be replaced.
However, we recommend you to
have them replaced with an ap-
proved dealer,if it proves difficult.
To comply with legislation, or as
a precaution, you can obtain an
emergency kit containing a set
of spare bulbs and fuses from an
approved dealer.
The engine may be hot
during operations in close
proximity.In addition, the
engine cooling fan may
come on at any moment.
Risk of injury.
