Renesas E2 Emulator User Manual

E2/E2 Lite Designing the User System
R20UT4582EJ0100 Rev.1.00 Page 10 of 30
Jul.16.19
2.3 Pin Assignments of the Connector on the User System
2.3.1 20-Pin and 10-Pin Connector Specifications

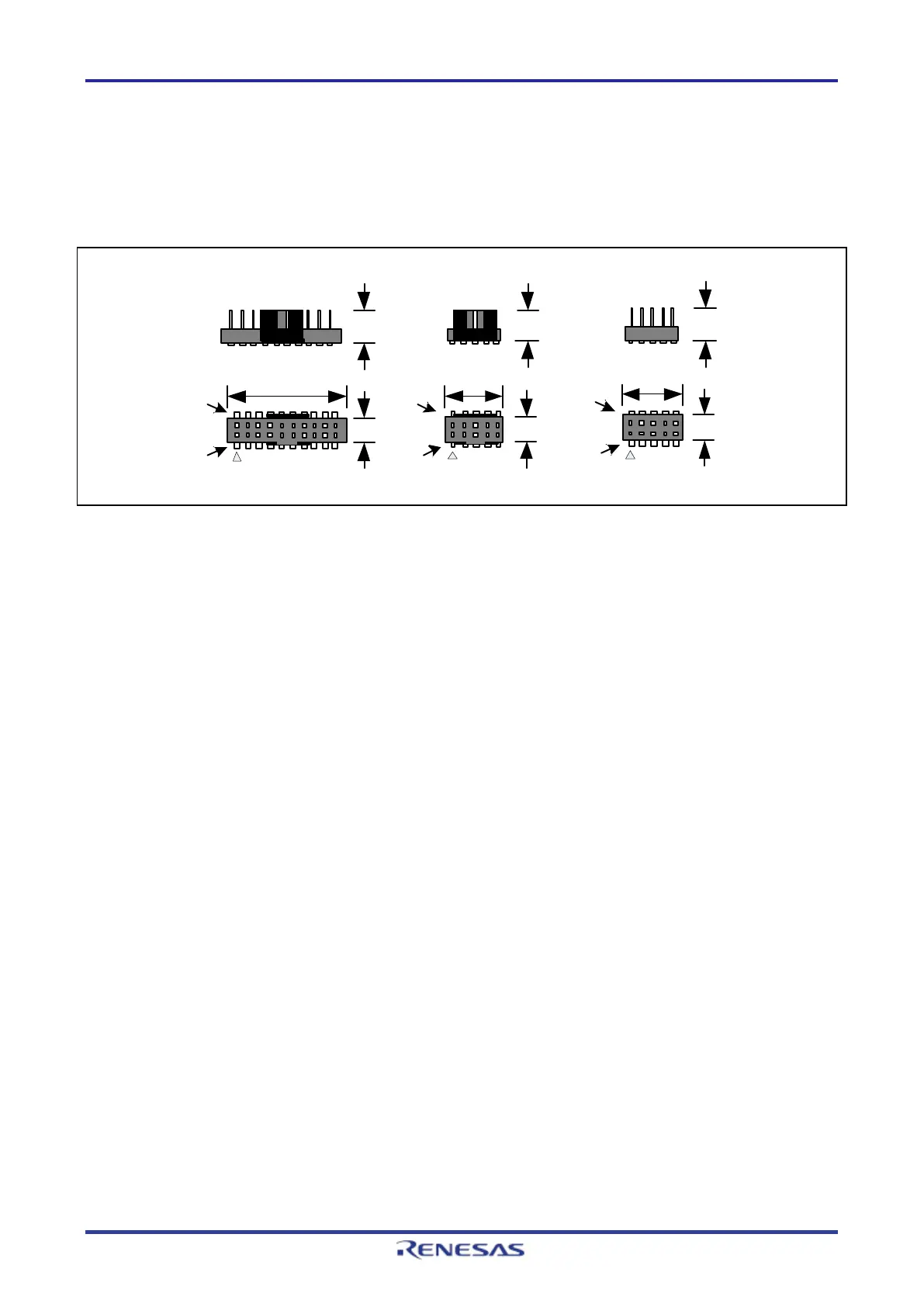

Figure 2.2 shows the specifications of the 20-pin and 10-pin connectors.
Table 2.3 shows the pin assignments of the 20-pin and 10-pin connectors for SWD interface connection.
Pin 2
Pin 1
FTSH-110-01-L-DV-K
Pin 2
Pin 1
FTSH-105-01-L-DV-K
Pin 2
Pin 1
FTSH-105-01-L-DV
Unit: mm
5.56 5.56
3.43 3.43
12.70
6.35
6.35
5.56
3.43
Figure 2.2 20-Pin and 10-Pin Connector Specifications
