Renesas E2 Emulator User Manual

E2/E2 Lite Designing the User System
R20UT4582EJ0100 Rev.1.00 Page 9 of 30
Jul.16.19
2.2.1 Connecting the User System Interface Cable to the 20-Pin Connector

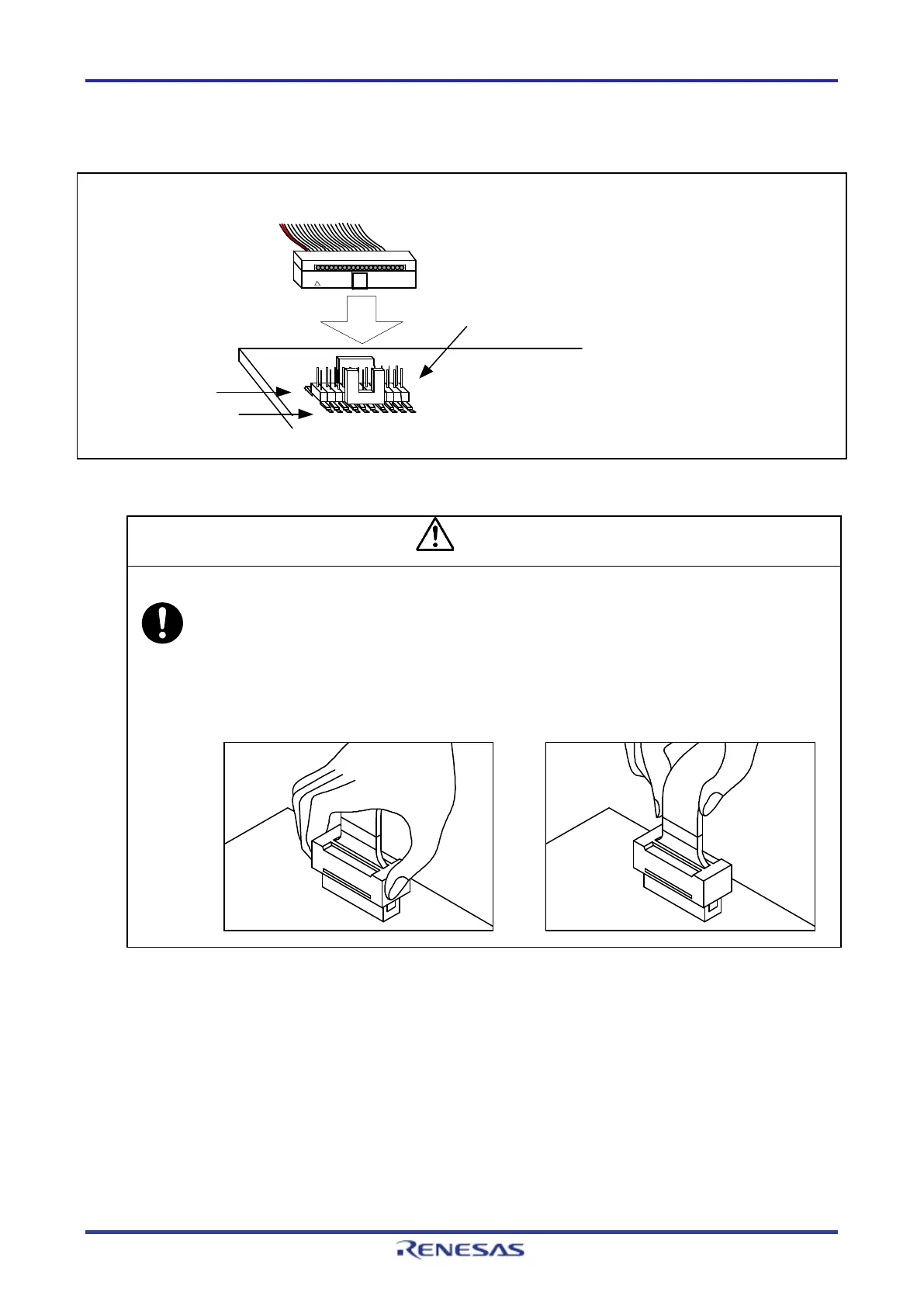

Figure 2.1 shows how to connect the user system interface cable to the 20-pin connector of the E2/E2 Lite.
User system
Connector:
20-pin (1.27-mm pin pitch) connector
Samtec type number: FTSH-110-01-L-DV-K
Pin 1
Pin 2
User system interface cable with the 20-pin
(1.27-mm pin pitch) connector
Figure 2.1 Connecting the User System Interface Cable to the 20-Pin Connector of the E2/E2 Lite
CAUTION
Notes on connector insertion and removal:
When connecting or disconnecting the user-system interface cable and the emulator or user system,
grasp the connector cover at the end of the cable. Pulling the cable itself will damage the wiring.
Also, be aware that the user-system interface cable has the direction in which it must be inserted. If
the cable is connected in the wrong direction, it may be damaged.
Correct example Incorrect example
