Renesas RA Family EK-RA2A1 – Quick Start Guide
R20QS0010EU0100 Rev.1.00 Page 16 of 20
Sep.17.19

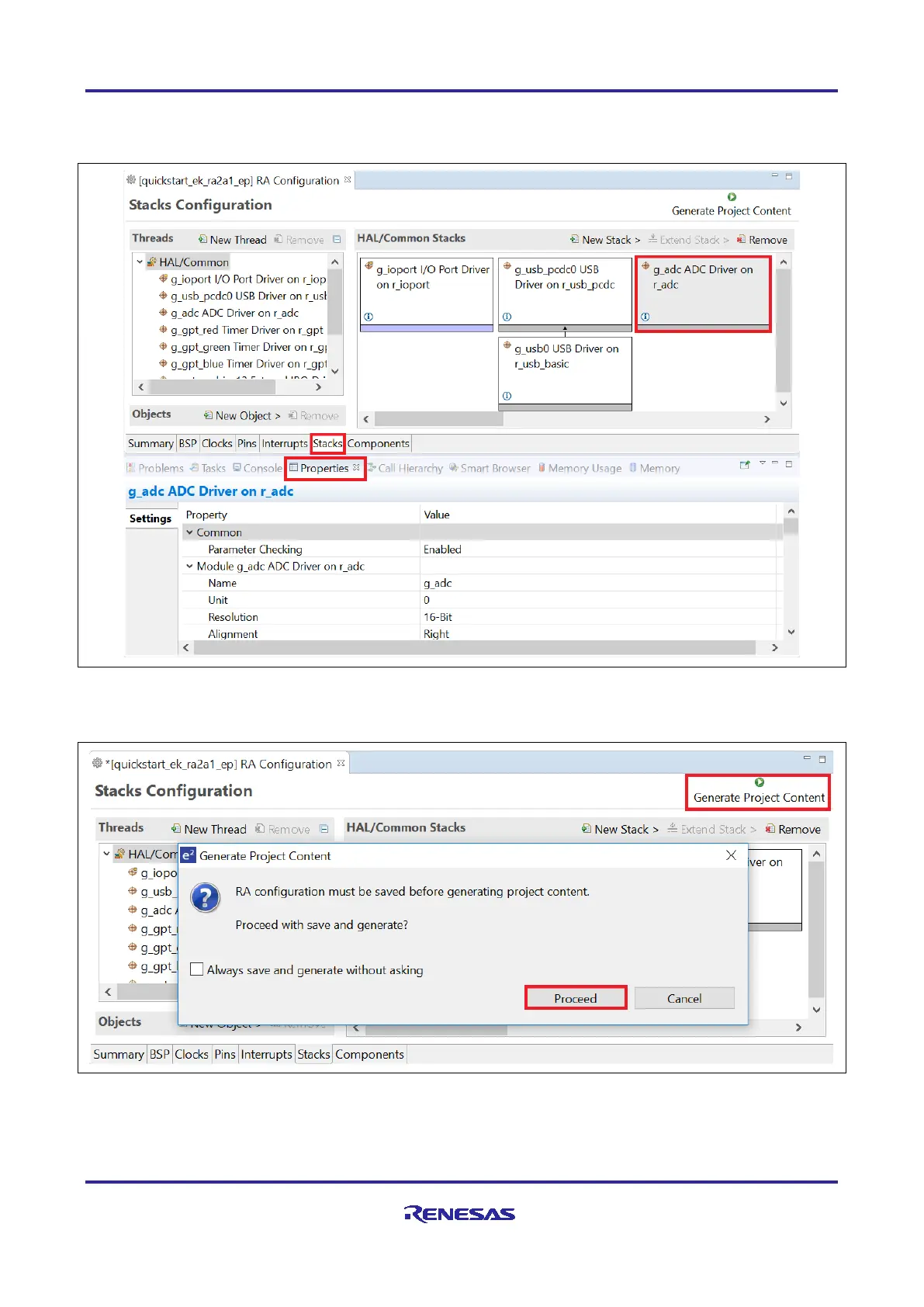

2. For example, in the Stacks tab of the configurator, the user can click to select modules to modify the
configuration settings, as required. The following screen shot illustrates modifying the ADC driver
configuration.
Figure 17. Modifying the Configuration Settings
3. After the desired modifications are made, click Generate Project. A dialog box may appear with an option
of saving the configuration changes. Click Proceed.
Figure 18. Saving the Configuration Changes
