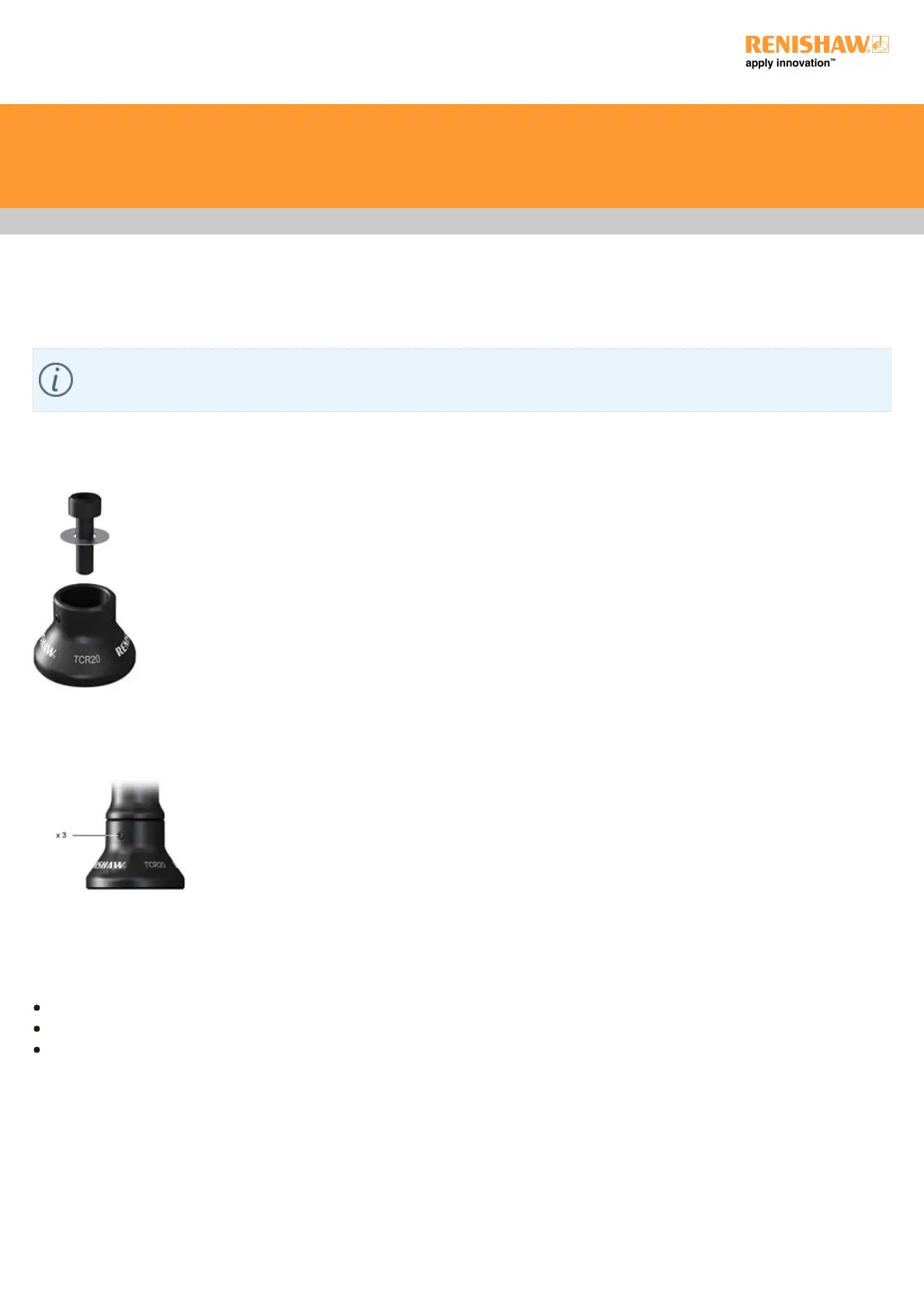

NOTE: To minimise the machine volume lost it is recommended that the TCR20 is mounted as close as possible to the extreme
edge of the CMM's operating envelope.
1. Fix the rack base to the CMM bed using the appropriate fixing screw. Depending upon the size of screw required it may be necessary to also
use a washer.
2. Fit the TCR20 leg into the base and orientate the rack. Secure the rack in the correct orientation by tightening the three grubscrews that are
located in the rack base.
TCR20 alignment and change routine
The following routines are handled through UCCserver for TCR20:
Alignment routine
Put down and pick up routine
Safe position
To Next Page
