Automatic Generator Start

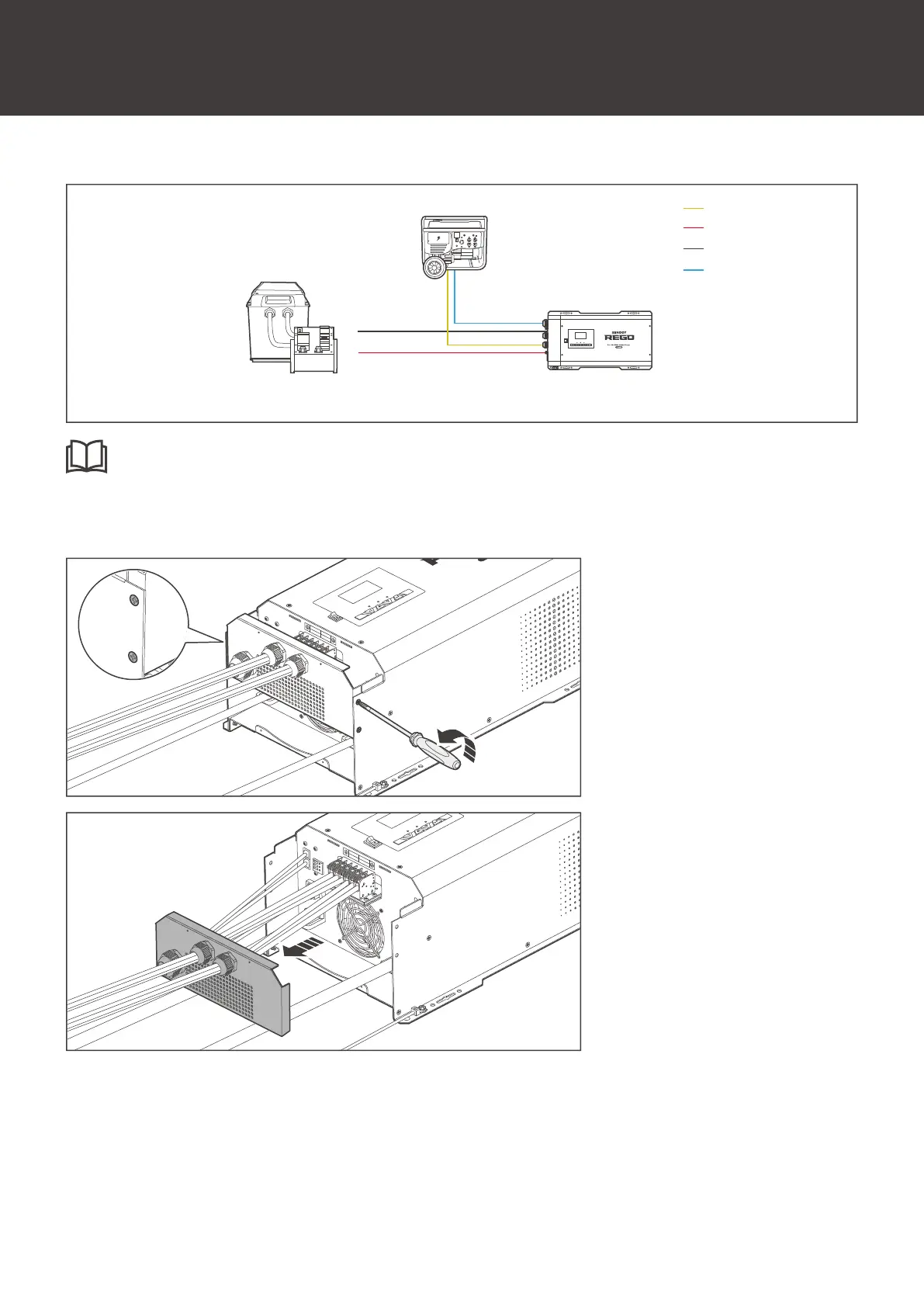

:LULQJ'LDJUDP
AC Generator
AC Input
Dry Contact Relay
Terminal Block
Battery System (12V)
+
-
Positive (DC)
Negative (DC)
Signal Line
ON
OFF
AC/INV CHG FAULT
INF
O
z
Connect three signal lines to NC (normally closed contact), NO (normally open contact), and
C (common static contact) of the AC Input. For more instructions, read the user manual of
AC Input.
AC / INV
CHC
FAULT
Pure Sine Wave Inverter Charger
REMOTE
DRY
CAN
NO
NC
C
CONTACT
CHARCER W
PROT
WARNING
please read the instructions carefully
Before working on this product.
High voltage,in order to avoid risks,
L
L
N
OUTPUT
INPUT
N
NEGATIVE
WARNING
please read the instructions carefully
Before working on this product.
High voltage,in order to avoid risks,
OFF
ON
CHARCER W
PROT
NEGATIVE
please read the instructions carefully
Before working on this product.
High voltage,in order to avoid risks,
1. Remove four retaining
QXWVRIWKH$&&DEOH
$FFHVVRU\3ODWHE\WXUQLQJ
WKHPFRXQWHUFORFNZLVH
with a Phillips screwdriver.
AC / INV
CHC
FAULT
REMOTE
DRY
CAN
NO
NC
C
CONTACT
CHARCER W
PROT
WARNING
please read the instructions carefully
Before working on this product.
High voltage,in order to avoid risks,
L
L
N
OUTPUT
INPUT
N
NEGATIVE
WARNING
please read the instructions carefully
Before working on this product.
High voltage,in order to avoid risks,
OFF
ON
2. 5HPRYHWKH$&&DEOH
Accessory Plate.
