ResMed Astral Series Clinical Guide

Ventilation modes
84
Entering the target values manually
The Target Va can also be determined to adopt a Target Patient Rate using a settable Target Va
parameter and patient height. Target Pt Rate should match the patient's normal breathing rate.

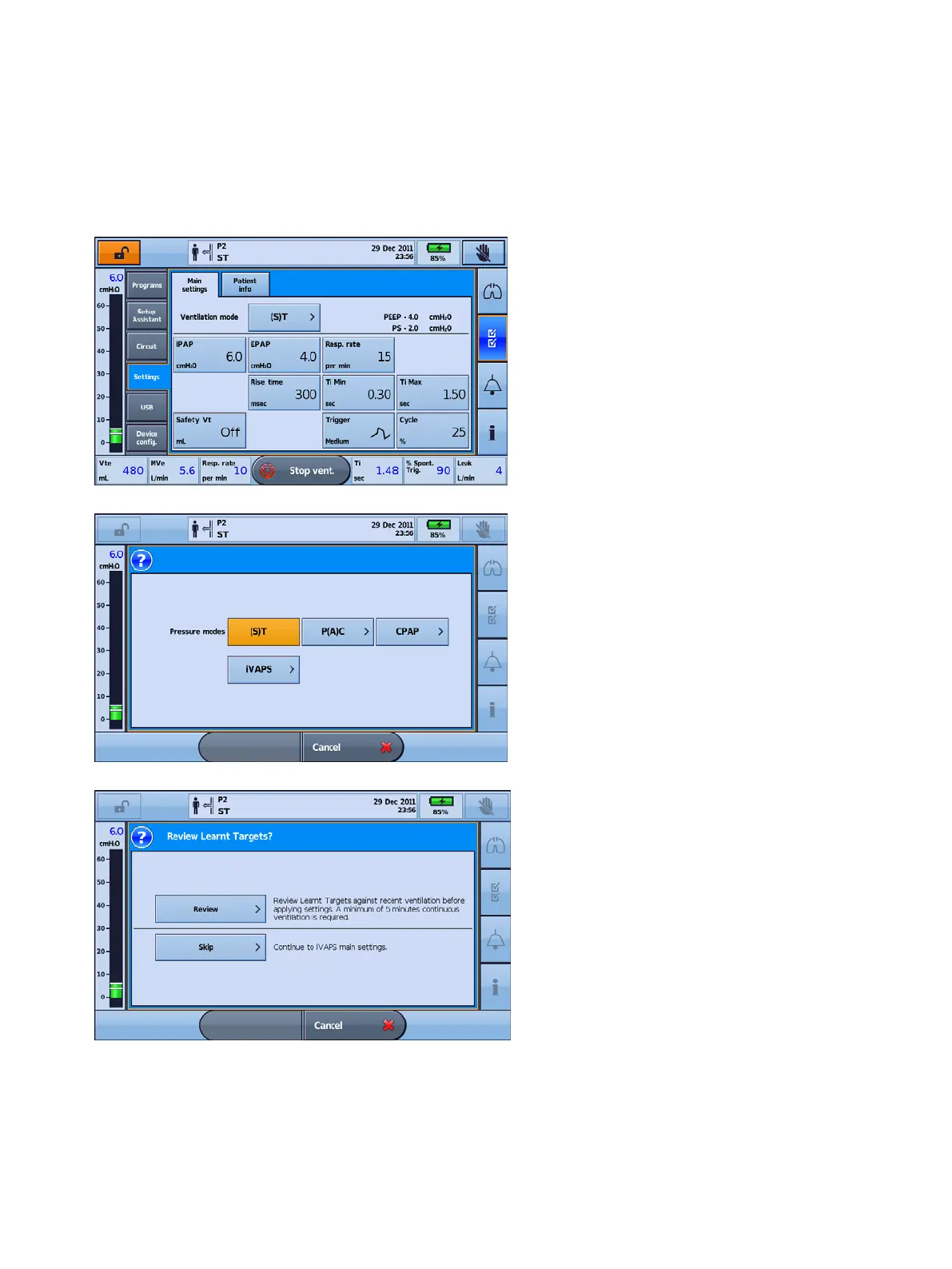

To enter the target values manually
1. From the Setup main menu, select Settings.
2. From the Settings menu, select the Main Settings tab.
3. From the on-screen selections, press Ventilation Mode, then select iVAPS.
4. Select Skip.

ResMed Astral Series Specifications

General

Type	Ventilator
Display	color LCD
Connectivity	USB
EPAP	0 to 25 cm H2O
Rise Time	Adjustable
PEEP	0 to 25 cm H2O
FiO2 Monitoring	Yes, with optional oxygen module
Battery Backup	Internal and external battery options
Oxygen Capability	Yes, with optional oxygen module
Alarms	Low battery
Pressure Support	0 to 30 cm H2O
