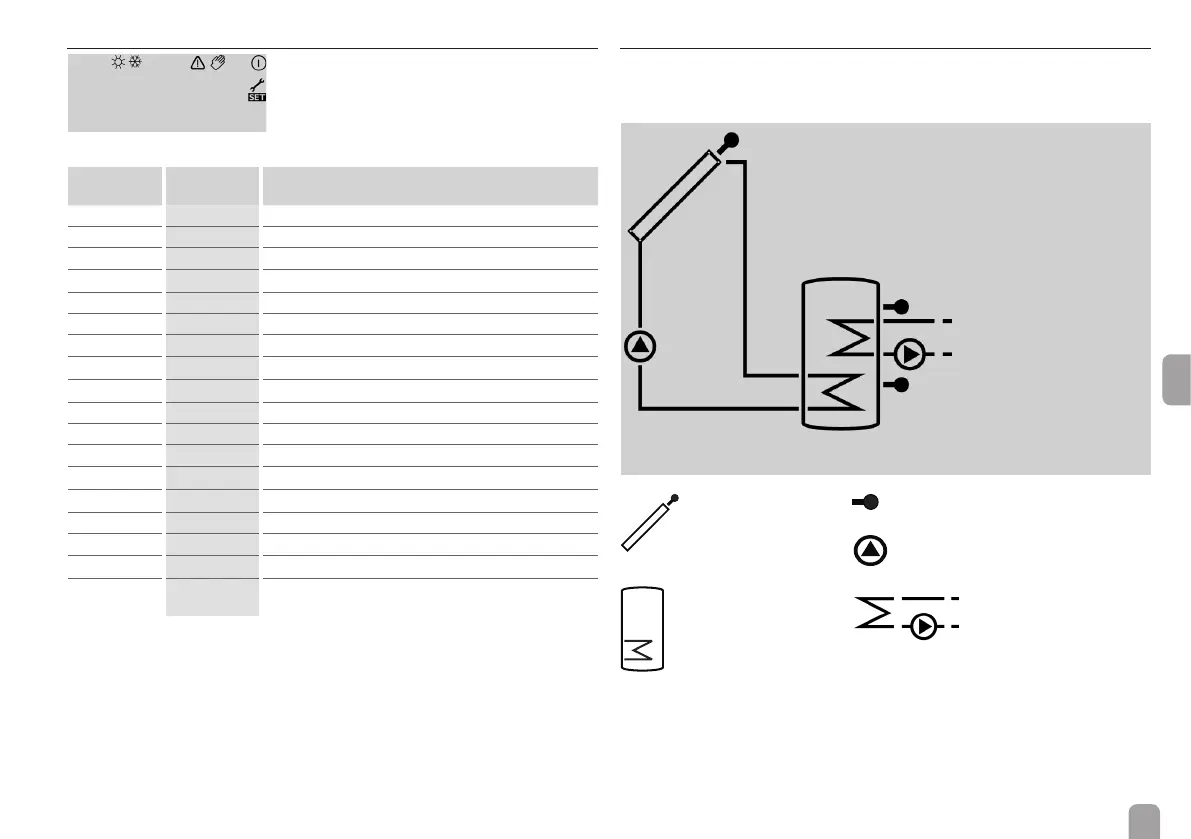

3.2.2 Tool bar
The additional symbols in the tool bar indicate the current system state.
Permanently
shown
Flashing Status indications:
⓵
Relay 1 active
⓶
Relay 2 active
☼
Maximum store temperature exceeded
⚠ + ☼
Store emergency shutdown active
⚠
Collector emergency shutdown active
⓵ ☼
Collector cooling active
⓵ ☼
System cooling active
⓵ + ☼
Store cooling active
⓵ + ☼
⚠
Holiday cooling active
❄
Collector minimum limitation active
❄
Antifreeze function activated
⓵ ❄
Antifreeze function active
☛ + ⓵
⚠
Manual mode relay 1 ON
☛ + ⓶
⚠
Manual mode relay 2 ON
☛ ⚠
Manual mode relay 1 / 2 OFF
☍ ⚠
Sensor fault
☍ + ⚠
PWM feedback error message
3 x ☛
Rapid heat-up not possible, because switch-off tempera-
ture exceeded
3.2.3 System screen
The system scheme is indicated on the System-Monitoring-Display. It consists of
several system component symbols which are – depending on the current status of
the system – either ashing or permanently shown.
Collector
with collector sensor
Temperature sensor
Pump
Store
with heat exchanger
Electric backup heating
(electric immersion heater)
