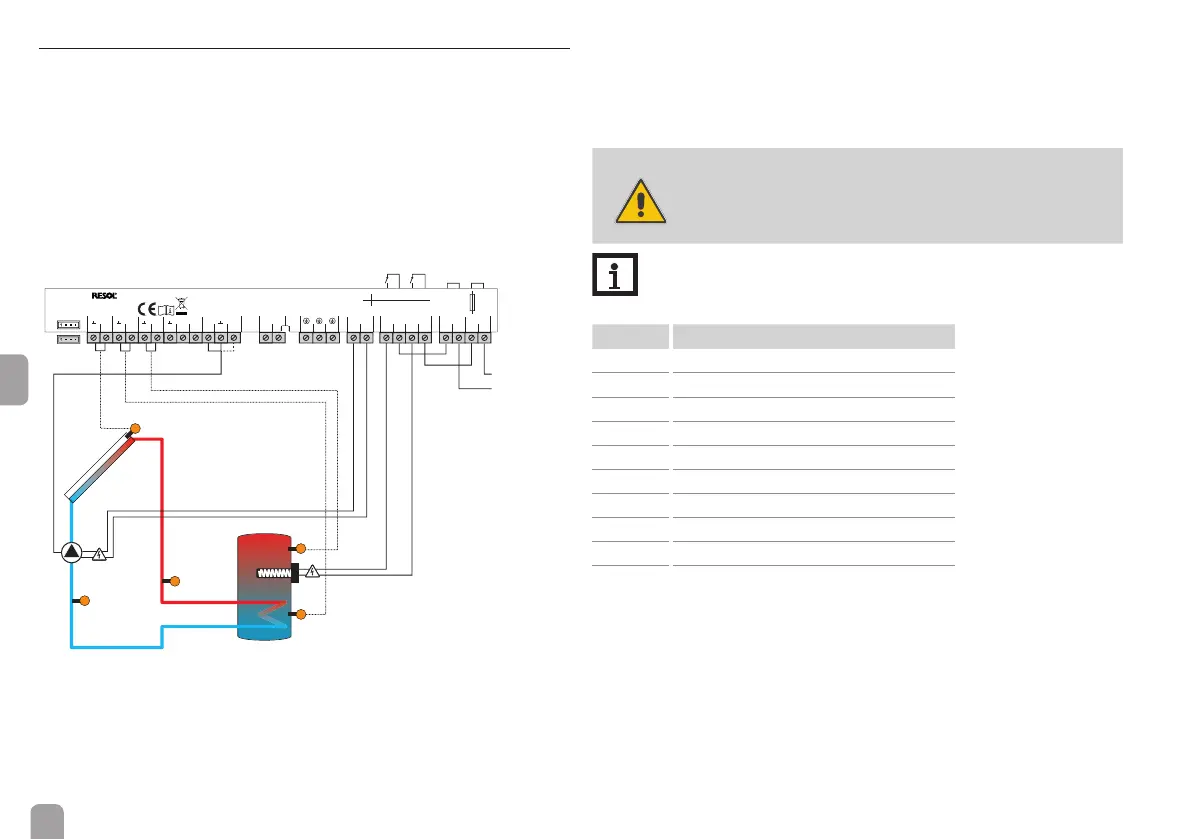

2.6 Terminal allocation with cable link
The controller calculates the temperature difference between collector sensor
S1 and store sensor S2. If the difference is larger than or identical to the adjusted
switch-on temperature difference (DT O), the solar pump will be activated by
relay 1, and the store will be loaded until the switch-off temperature difference
(DT F) or the maximum store temperature (S MX) is reached.
Sensor S3 is used for a thermostat function, which operates relay 2 for backup
heating purposes, when the adjusted thermostat switch-on temperature (BH O)
is reached. This function can optionally be combined with up to 3 adjustable time
frames.
Sensor S3 can optionally be used as the reference sensor for the thermal disinfec-
tion function (OTD) or the store emergency shutdown option (OSEM).
Sensor S4 can optionally be connected. For heat quantity measurement, S1 and S2,
S1 and VFD or VFD and S4 respectively can be used as ow and return sensors.
WARNING!
Electric shock!
Upon opening the housing, live parts are exposed!
Î Always disconnect the device from power supply
before opening the housing!
Note:
With this connection type, the immersion heater is supplied with power
directly from the mains connection.
Symbol Description
S1 Collector sensor
S2 Store sensor base
S3 Store sensor top
R1 Solar pump
R2-L Mains conductor
R2-L Conductor electric immersion heater
R2-N Neutral conductor mains
R2-N Neutral conductor electric immersion heater
⏚
Protective conductor
L/N Mains terminals
12
S1
S2
S3
S4
3456
T2A
100 ... 240 V~
50-60 Hz
VBus
910
11
12
13 14
DeltaSol
®
AL E HE
1 (1) A (100 ... 240) V~
14 (3) A (100 ... 240) V~
R1
R2
IP 20
Made in Germany
78
PWM PFB
LED
N
N
N
17
18
19
1615
R2-N R2-N
LL
20 21
R2-L R2-L R1
22 23
24 25 26 27
VFD
S1
S2
S3R1
S4 / VFD
VFD
100 … 240 V~
