2 Installation
2.1 Mounting
WARNING!
Electric shock!
Upon opening the housing, live parts are exposed!
Î Always disconnect the device from power supply
before opening the housing!
Note
Strong electromagnetic elds can impair the function of the device.
Î Make sure the device as well as the system are not exposed to strong
electromagnetic elds.
The unit must only be located in dry interior rooms.
If the device is not equipped with a mains connection cable and a plug, the device
must additionally be supplied from a double pole switch with contact gap of at
least 3 mm.
Please pay attention to separate routing of sensor cables and mains cables.

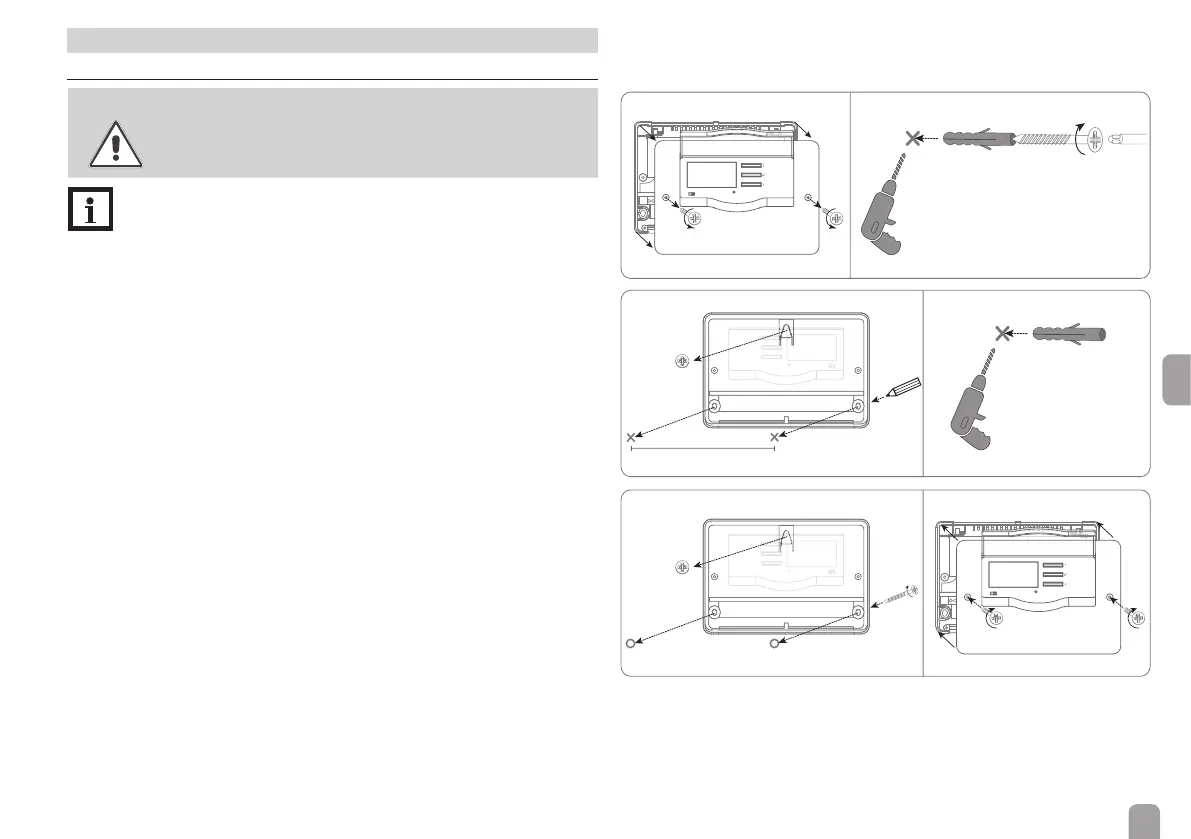

Î Unscrew the crosshead screw from the cover and remove the cover.
Î Mark the upper fastening point on the wall. Drill and fasten the enclosed wall
plug and screw leaving the head protruding.
Î Hang the housing from the upper fastening point and mark the lower fastening
points (centres 180 mm).
Î Drill and insert the lower wall plug.
Î Fasten the housing to the wall with the lower fastening screw and tighten.
Î Carry out the electrical wiring in accordance with the terminal allocation (see
page 6).
Î Put the cover on the housing.
Î Attach with the fastening screws.
1
3
4
5
6
0 Auto I
0 Auto I0 Auto I
0 Auto I
0 Auto I0 Auto I
180mm
0
A
uto
I
0 Auto I
0
A
uto
I
0 Auto I
2
Electrical connection see page 6
