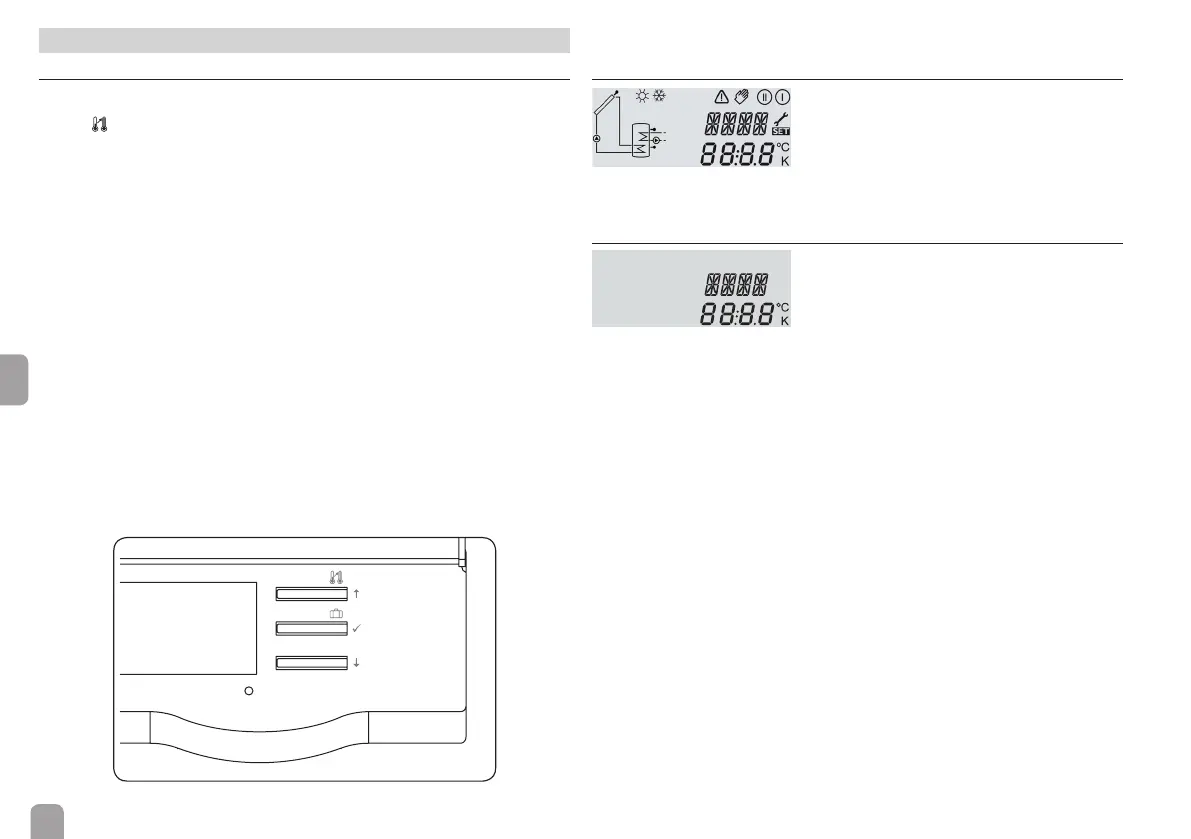

3 Operation and function
3.1 Buttons
The controller is operated via the 3 buttons next to the display:
Button
:
Activating the rapid heat-up function (press and hold down button for 3 s)
 :
Scrolling upwards, increasing adjustment values (press button briey)
Button
⛁
:
Activating the holiday mode (press and hold down button for 3 s)
 :
Ⓢ Conrming / selecting (press button briey)
Button  :
Scrolling downwards, reducing adjustment values
During normal operation, display channels will be displayed.
Î In order to scroll between display channels, press buttons  and .
Access to adjustment channels
Î Use button  in order to scroll to the last display channel, then press and hold
down button  for approx. 3 s.
If an adjustment channel is shown on the screen, Ⓢ will be displayed on the
right-hand side next to the channel name.
Î Press button in order to select an adjustment channel.
Ⓢ starts ashing.
Î Adjust the desired value with buttons  and .
Î Briey press button .
Ⓢ permanently appears, the adjusted value has been saved.
3.2 System-Monitoring-Display
The System-Monitoring-Display consists of 3 blocks: channel display, tool bar
and system screen.
3.2.1 Channel display
The channel display consists of 2 lines. The upper display line is an alphanumeric
16-segment display. In this line, mainly channel names and menu items are displayed.
In the lower 7-segment display, values and parameters are displayed.
