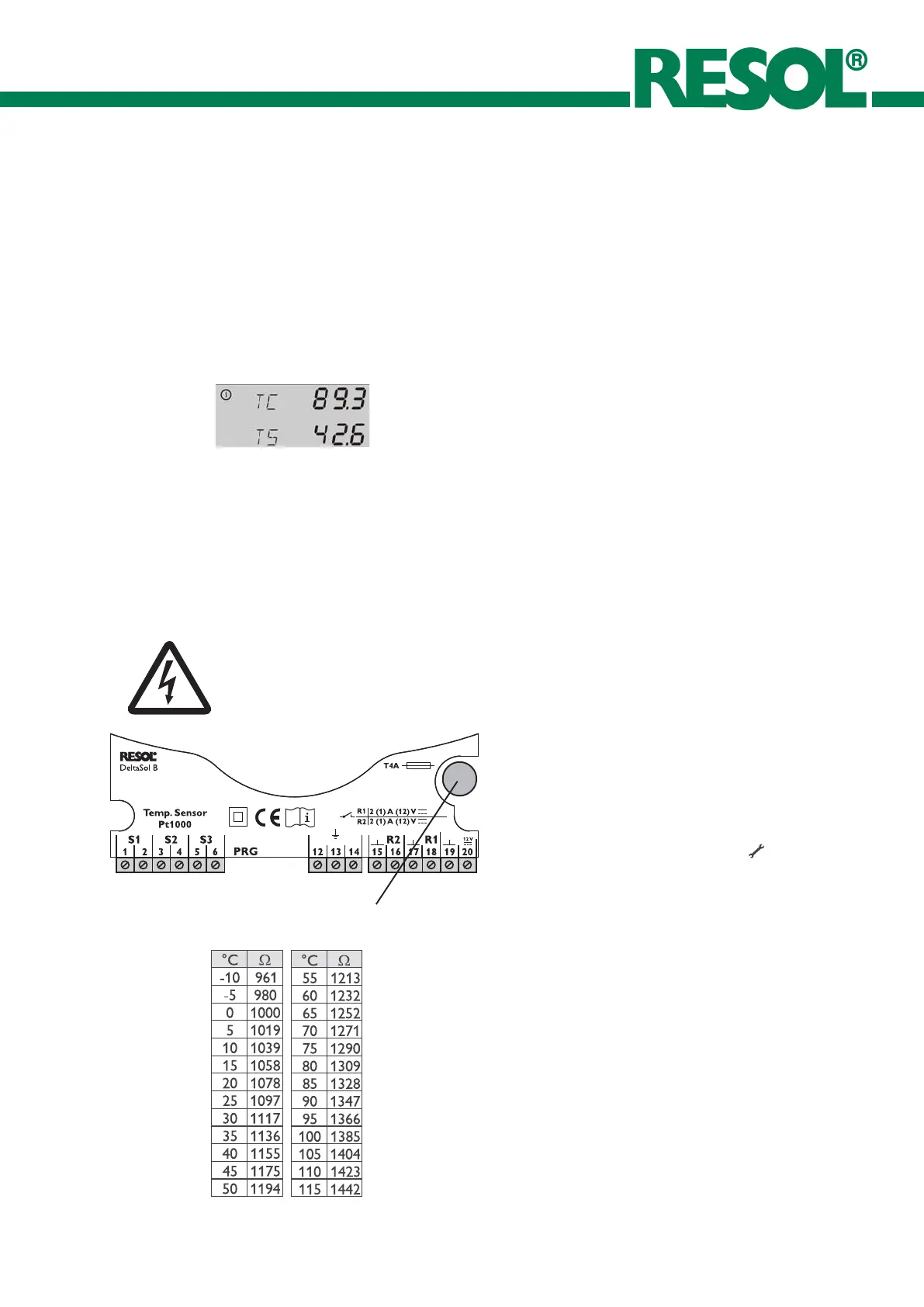

Page 11/16
© RESOL 08015 deltasol_b.monen.pmd
4. Commissioning
Ac power supply must be activated. The controller passes
an initialisation phase in which the operating control lamp
flashes red and green. After having finished the initialisation,
the controller is in automatic operation, which is the most
effective one for most of the systems with the indicated
factory settings.
If individual conditions require an adaptation of the
parameter, please adjust the values accordingly (see 3.2).
5. Tips for fault location:
Please check the following points if the controller
RESOL
DD
DD
D
eltaSeltaS
eltaSeltaS
eltaS
olol
olol
ol
®®
®®
®
B does not work faultlessly:
1. Power supply
If the operating control lamp is off, please check the power
supply of the controller.
The controller is protected by one can fuse T4 A, which is
situated at the base/isolation plate and can be replaced by
opening the cover of the housing (spare fuse is enclosed in
one of the accessory bags).
2. Sensor faults
If there is a malfunction due to a sensor defect, the operating
control lamp flashes red and the symbol is shown on the
display (T3 is not affected). An error code for the concerned
sensor is shown on the display (TC, TS or TT). The pushbutton
key <+> must once be pressed for checking the 3rd
temperature sensor.
Short-circuit: Short-circuit in the sensor wire with
indication of the concerned temperature sensor (TC, TS or
TT). The error code -888.8 is shown on the display.
Line break: Interruption of the sensor wire with
indication of the concerned temperature
sensor (TC, TS or TT). The error code
888.8 is shown on the display for the
concerned sensor.
Clamped Pt1000-temperature sensors can be checked by a
resistance-measuring device. The measured temperatures can
be compared with the resistance values of the table opposite.
resistance values of
PT1000 sensors
can fuse T4A
green constantly: at least one relay ist switched-ON
red constantly:: all relays are switched-OFF
red/green flashing: initialisation phase
sensor defect
manual operation
3.2.16 LED blinking codes
Attention!
Before opening the housing
please make sure that all poles
are separated from the line
voltage.
Depending on the PG version
the picture above is varying from
your controller!
