Page 5/16
© RESOL 08015 deltasol_b.monen.pmd

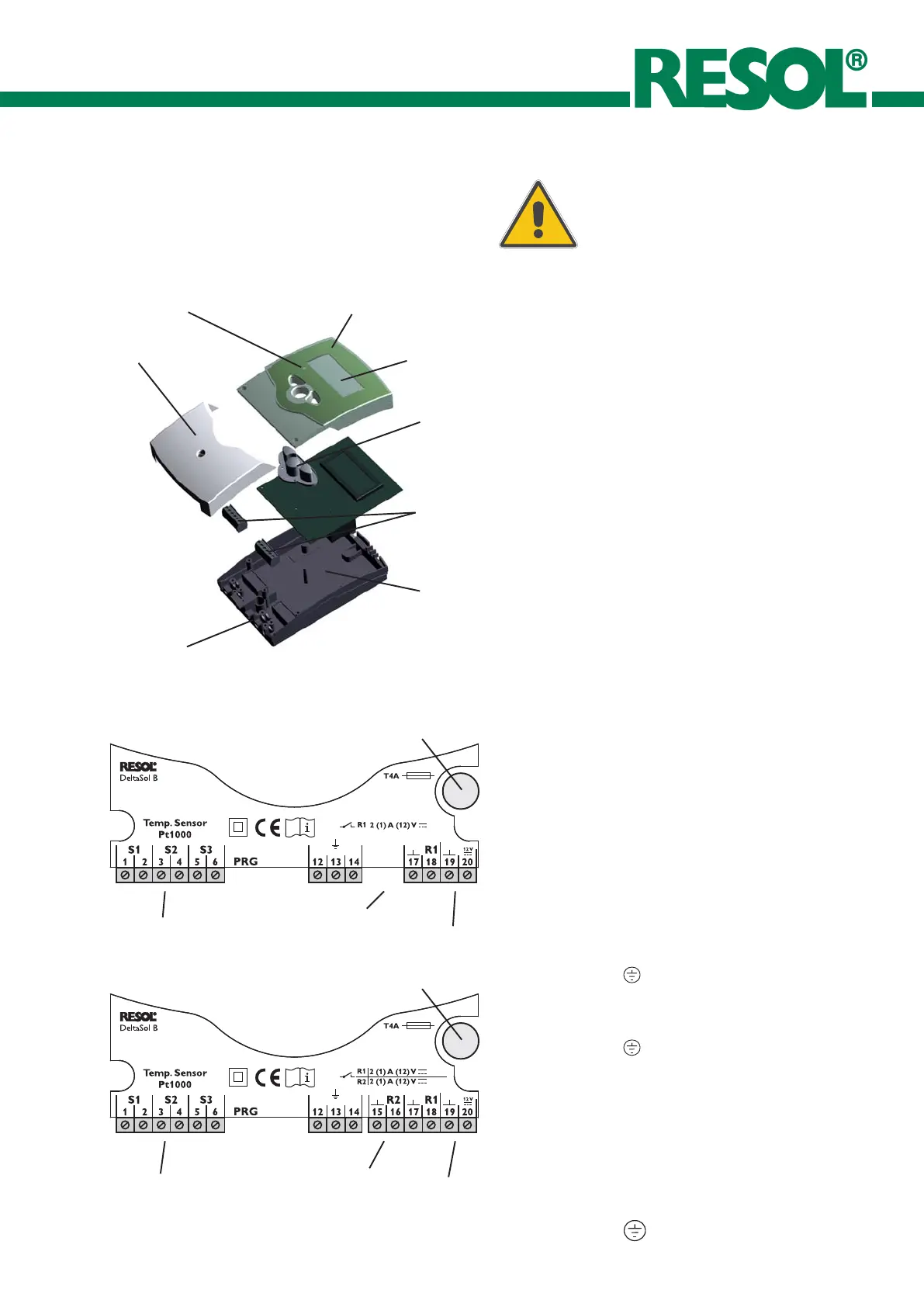

1.1Mounting
The unit must only be located internally. It is not suitable for
installation in hazardous locations and should not be sited
near to any electromagnetic field. The controller must
additionally be equipped with an all-polar gap of at least 3
mm or with a gap according to the valid installaton
regulations, e.g. LS-switches or fuses. Please pay attention
to a seperate laying of the cable lines and installation of ac
power supply.
1. Installation
housing
key field
base
clamps
cover
cable conduits with strain relief
operation control lamp
combined LCD
Warning!
Switch-off power supply before
opening the housing.
1. Unscrew the cross-recessed screw of the cover and
remove it from the housing.
2. Mark the upper fastening point on the underground and
premount the enclosed dowel and screw.
3. Hang up the housing at the upper fastening point and mark
the lower fastening point on the underground (hole pitch
130 mm), afterwards put the lower dowel.
4. Fasten the housing at the underground.
1.2 Electrical wiring
The power supply to the controller must only be made by
an external power supply switch (last step of installation!)
and the line voltage must be 12 Volt DC. Flexible lines are
to be fixed at the housing by enclosed strain relief supports
and screws.
Depending on the version the controller is equipped with
1 relay (PG 51.02 and PG52.02) or 2 relays (PG 53.02 and
PG54.02, cp. overview „Controller versions“ on p. 3) to
which the consumers e.g. pumps, valves etc. can be
connected:
• Relay 1 (PG 52.05 and PG 54.02)
18 = conductor R1
17 = neutral conductor N
13 = ground clamp
• Relay 2 (PG 53.02 and PG 54.02)
16 = conductor R2
15 = neutral conductor N
14 = ground clamp
The temperature sensors (S1 up to S3) will be connected
to the following terminals independently of the polarity:
1 / 2 = sensor for heat source (e.g. collector sensor)
3 / 4 = sensor for heat sink (e.g. store sensor)
5 / 6 = additional sensor (PG 51.02 and PG 52.02)
or thermostat sensor (PG 53.02 and PG 54.02)
The power supply is effected to the clamps:
19 = neutral conductor N
20 = conductor L
12 = ground clamp
net clamps
fuse
sensor clamps
consumer clamps
net clamps
sensor clamps
consumer clamps
fuse
