Page 3/16
© RESOL 08015 deltasol_b.monen.pmd

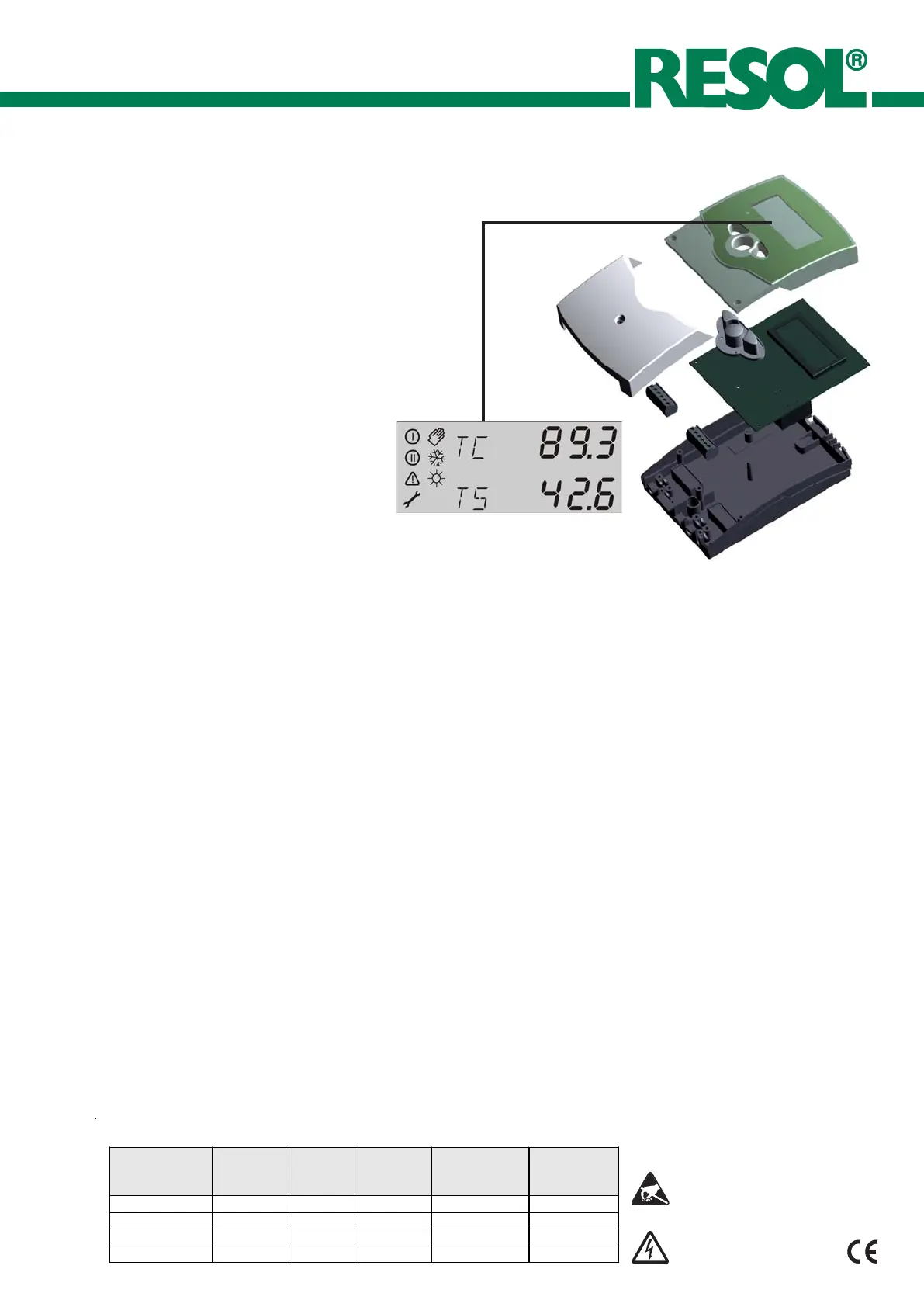

• housing in outstanding
design and compact
dimensions, easy to
install
• multifunctional com-
bined display
• user-friendly opera-
tion by simple hand-
ling
• intuitive menu mode
• function control
• optional speed control,
solar operation hours
counter and thermos-
tat function
RESOL
DeltaSolDeltaSol
DeltaSolDeltaSol
DeltaSol
®®
®®
®
B – the next generation of controllers
Technical data
Housing: plastic, PC-ABS and PMMA
Protection type: IP 20/DIN 40050
Environmental temperature: 0 ... 40°C
Size: 172 x 110 x 46 mm
Installation: wall mounting, mounting into
patch panels is possible
Display: LCD, multi-functional combined
display with 8 pictograms, two 2-digit
text fields and two 4-digit 7-segment dis-
plays as well as one 2-coloured lumines-
cent diode
Operation: by three pushbuttons in the
front of the housing
The controller RESOL DeltaSol
®
B
is used for application in standard so-
lar thermal systems as well as in hea-
ting and air conditioning systems and
persuades by its clear operation con-
cept.
A newly developed, multi-functional
display enables the user to simutane-
ously request two temperatures (e.g.
collector and store temperature). Simp-
le icons give information about function
and opertion mode of the device or
system which can be understood easi-
ly.
The controller is equipped with 3 sen-
sor inputs for Pt1000-sensors, store
temperature limitation and a manual
switch (menu). The central operation
element is the 3-key-field below the
display. The newly developed combined
LC-display enables an intuitive and re-
liable controller configuration as well
as a comprehensive visualisation of the
system status. Collector cooling and
recooling and recooling function as well
as a security switch-off, but also a ther-
mostat function can be realised easily.
A speed control and a solar operation
hours counter are also integrated de-
pending on the controller variant (look
at the overview „controller versions“)
The controller DeltaSol
®
B is also
available as an individual OEM-version,
so that further system adaptions are
possible.
Functions: standard solar controller with
adjustable values: minimum-maximum tem-
perature limitation, switch-on and switch-
off-temperature difference. Frost protec-
tion / cooling function, security switch-off,
function control according to BAW-direc-
tions, speed control and solar operation
hours counter (depending on program,
look at overview „controller versions“)
Inputs: 3 temperature sensors Pt1000
Output:
depending on version, look at overview „con-
troller versions“
Breaking capacity: max. 4A
Power supply:
12 V (DC)
Power consumption: approx. 2 VA
degree of pollution: 2
rating surge voltage: 2,5 kV
temp. for ball pressure check: 75°C
mode of functioning:
type 1.b (versions 51.02, 53.02)
type 1.y (versions 52.02, 54.02)
breaking capacity per relay:
semi-conductor relay: 1,6 (1)
electromechanical relay: 4 (2)
Electrostatical discharge can
cause damage of electronic
components.
Attention! Parts are high
voltage energized.
Controller
version PG
Semi-
conductor
relay
Standard
relay
Speed
control
Operation
hours counter
Thermostat
function
51.02 0 1 no yes no
52.02 1 0 yes no no
53.02 0 2 no yes yes
54.02 1 1 yes no yes
Controller versions:
