3. Operation and function
3.1 Adjustment keys

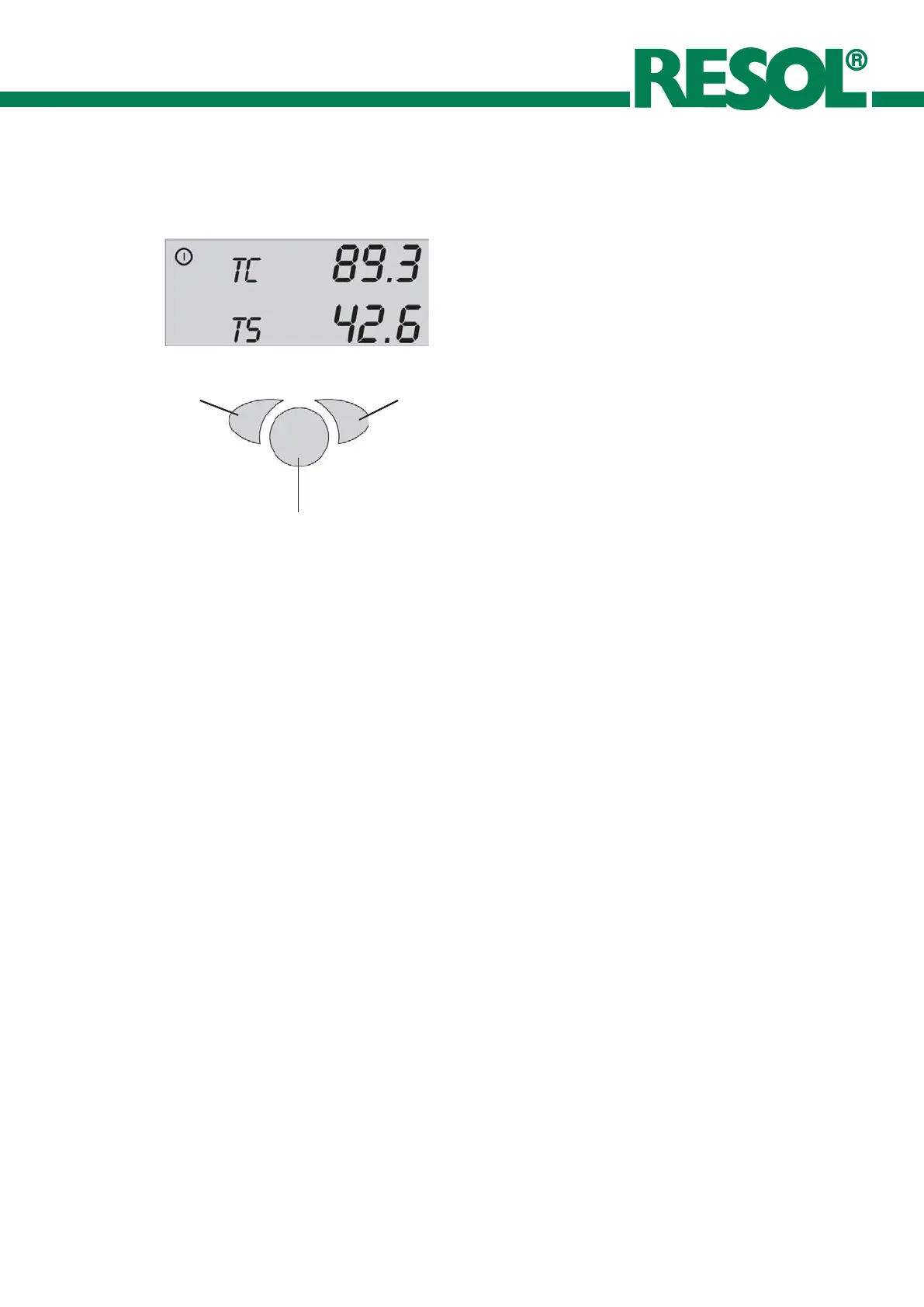

The controller is only operated by the 3 pushbuttons below
the display. The forward-key (1) is used for scrolling forward
through the indication menu or to increase the adjustment
values. The backwards-key (2) is accordingly used for the
reverse function.
The adjustment channels follow the pure indication channels
in the display. In order to come to these channels, press the
forward key to channel HO (PG 51.02 and PG53.02) or to
channel PC (PG 52.02 und PG54.02) for 2 sec. If an
adjustment value is shown on the display, SEt is indicated.
In this case you can press the key „Set“ (3) in order to
change into input mode.
y Select a channel by keys 1 and 2
y Shortly press key 3, so that „SEt“ flashes
y Adjust the value by keys 1 and 2
y Shortly press key 3, so that „SEt“ permanently
appears, the adjusted value is now saved
backwards
forwards
set
(selection / adjustment mode)
3.2 Controller parameter / indication channnels
•TC=TemperatureCollector
collector temperature
•TS=TemperatureStorage
store temperature
• TT/T3=Termperature (Thermostat)
Thermostat temperature (only PG 53.02 and PG 54.02)
•PC=PumpSpeed Current
current relative pump rotational speed
(only PG 52.02 and PG 54.02)
•HO=Hours of Operation
solar operating hours
(only PG 51.02 and 53.02)
•DO=Temperature Difference On
starting temperature difference
• DF=Temperature Difference OfF
switch off temperature difference
•SX=StorageTemperatur(MaXimum)
maximum store temperature
•CL=CollectorTemperature(Limited)
collector limiting temperature
•CX=CollectorTemperature(MaXimum)
maximum collector temperature
•CN=CollectorTemperature(MiNimum)
minimum collector temperature
•TO=ThermostatTemperature (On)
thermostat starting temperature
(only PG 53.02 and PG 54.02))
•TF=ThermostatTemperature(OfF)
thermostat switch off temperature
(only PG 53.02)
•FN=FuNction
Function
0 : Maximum store temperature deactivated
1 : Maximum store temperature activated
2 : Maximum store temperature deactivated, recooling
function activated
3 : Maximum store temperature activated, recooling
function activated
• PN=PumpSpeed MiNimal
minimum relative pump rotational speed
(only PG 52.02 and PG54.02)
•MM=ModeManual for PG 53.02 and PG 54.02
manual operation mode
0 : relays 1 and 2 are deactivated
1 : relay 1 is activated, relay 2 is deactivated
2 : relay 1 is deactivated, relay 2 is activated
3 : relays 1 and 2 are activated
4 : automatic operation
•MM=ModeManual for PG 51.02 and PG 52.02
manual operation mode
0 : relay 1 is deactivated
1 : relay 1 is activated
2 : automatic operation
•PG=ProGram
program number
•VN=VersionNumber
version number
Please note: The controller is equipped with a security switch-off of the store, which prevents a further loading of the
store at 90 °C store temperature.
