Resol DeltaTherm FK User Manual

en
11
Installation
CommissioningSettingsTroubleshooting
Accessories
Display
The controller calculates the temperature difference between solid fuel boiler sen-
sor S1 and store sensor S2. If the difference is larger than or identical to the adjust-
ed switch-on temperature difference and if the adjusted minimum temperature of
the solid fuel boiler, the pump (R1) will be switched on and the store will be loaded
until the switch-off temperature difference or the maximum store temperature is
reached.
Heat exchange control to an existent store via an additional pump (R2) can be
carried out with another temperature differential function (S3 heat source/S4 heat
sink).
1 (1) A 240 V~
1 (1) A 240 V~
R1
R2
Made in Germany
DeltaTherm
®
FK
Temp. Sensor Pt1000
S2S1 S3 VBus
11 12 13
T2A
100 ... 240 V~
50-60 Hz
NNR2
LN
R1
2019
18
171615
S4
—
—
PWM1/2
S1
S2
R1
R2
S4
S3
22
23
3 3

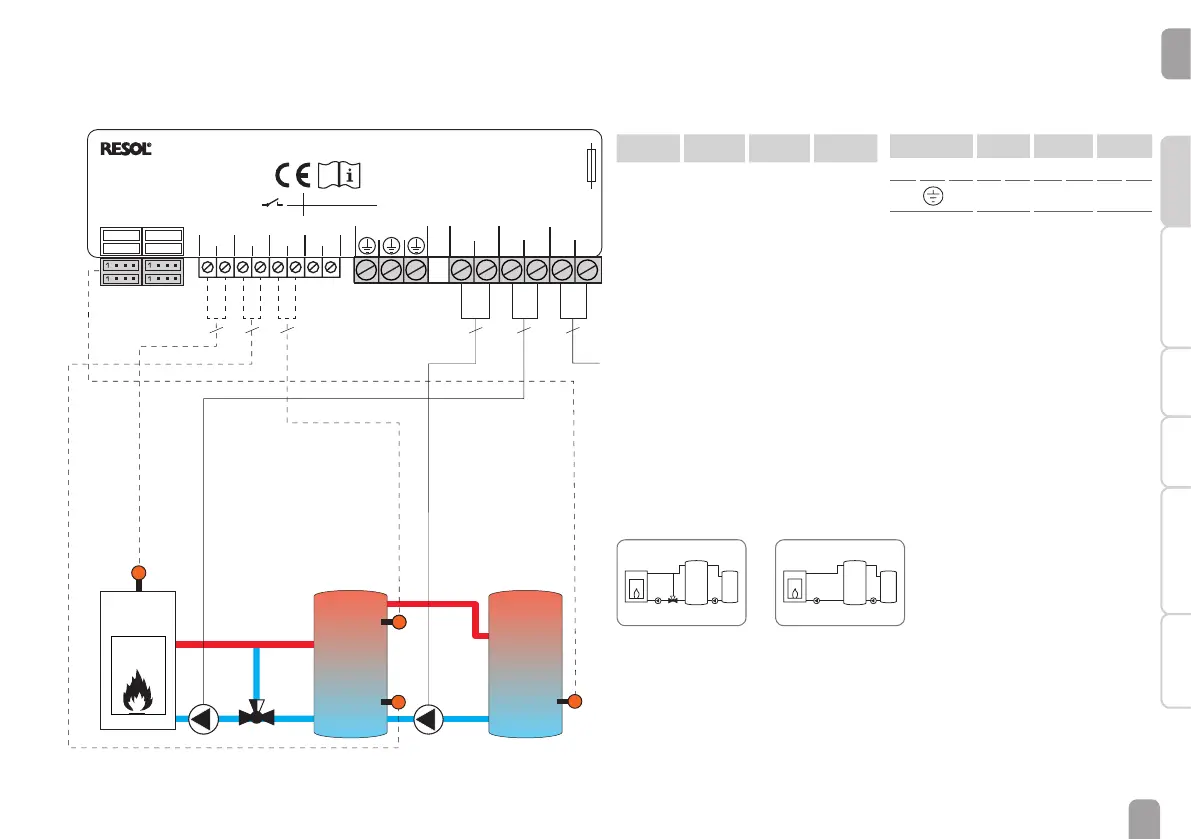

System 4 and 8
Store loading via solid fuel boiler and heat exchange
System 4
System 8
Sensor allocation
S1 S2 S3 S4
Solid fuel
boiler
Store
base
Store top Store 2
Relay allocation
PE R1 R2 Mains
11 12 13 17 18 15 16 19 20
N L N L N L
Protective
earth
conductor
Pump
Store
loading
pump
Mains
