Selecting a function or option:
Î Select the function or the option respectively with the lower and upper buttons
Î Press the centre button
Î Select Ye s to activate, or No to deactivate the function
Î Briefl y press the lower button to confi rm the selection
Î Press the centre button again in order to store the adjustment
An activated function is indicated by means of a marked checkbox. The correspond-
ing adjustment values are also displayed.
Î In order to get back to the display mode, press the centre button for 3 s
If no button is pressed within 2 min, the display automatically switches back to the
status display.
4 Commissioning
backwards (-)
forwards (+)
SET (selection / adjustment mode)

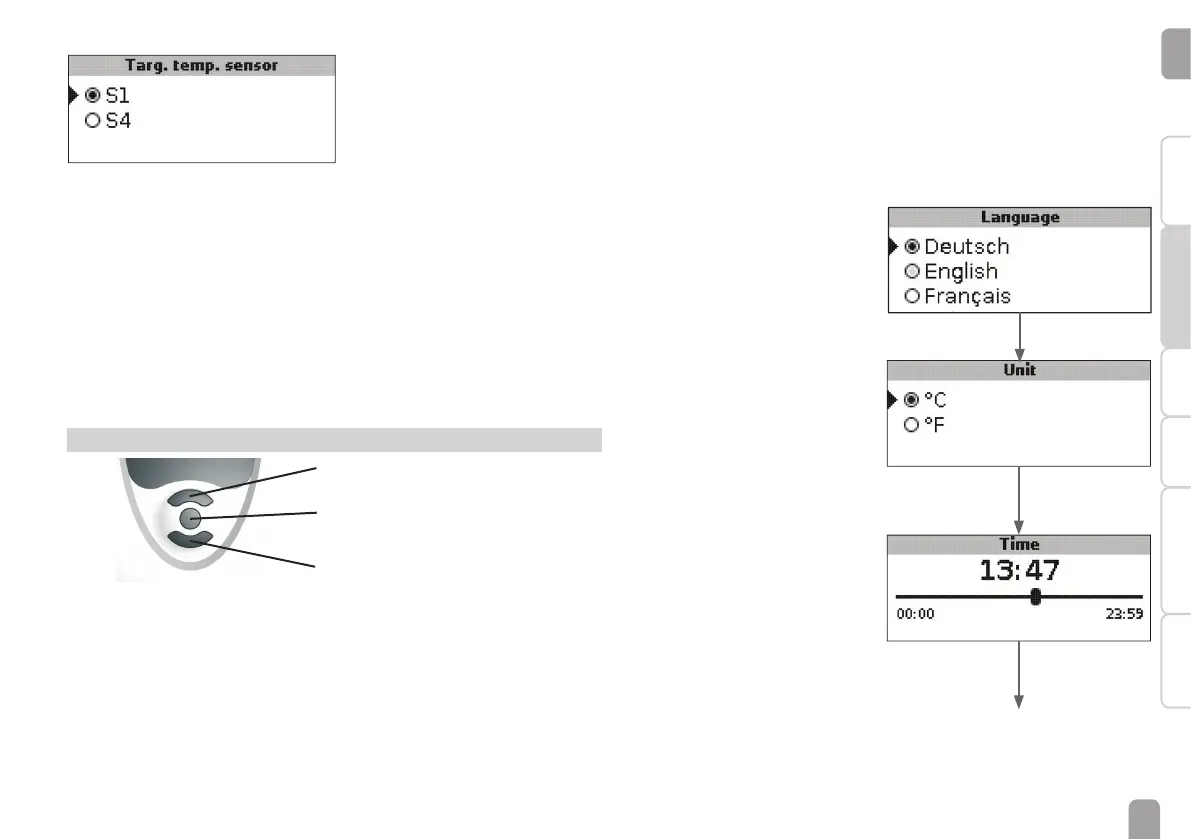

The three adjustment buttons of the DeltaTherm
®
FK controller
Î Connect the device to the mains
The controller runs an initialisation phase.
When the controller is commissioned or when it is reset, it will run a commission-
ing menu. The commissioning menu leads the user through the most important
adjustment channels needed for operating the system.
1. Language
Î Adjust the desired menu language.
language selection
Selection: Deutsch, English, Français,
Italiano, Español
Factory setting: German
2. Unit
Î Adjust the desired unit for temper-
ature indication.
Temperature unit
Selection: °C, °F
Factory setting: °C
3. Time
Î Adjust the current time for the re-
al-time clock.
Adjust the hours and the minutes sep-
arately, fi rst of all the hours, then the
minutes.
Real-time clock
Commissioning menu
Î Press the centre button in order to select an adjustment channel
Î Press the lower and the upper buttons in order to adjust the value
Î Briefl y press the centre button to confi rm the adjusted value
Î Press the lower or the upper buttons in order to get to the next or the previ-
ous adjustment channel
The commissioning menu consists of the following 10 adjustment channels:
