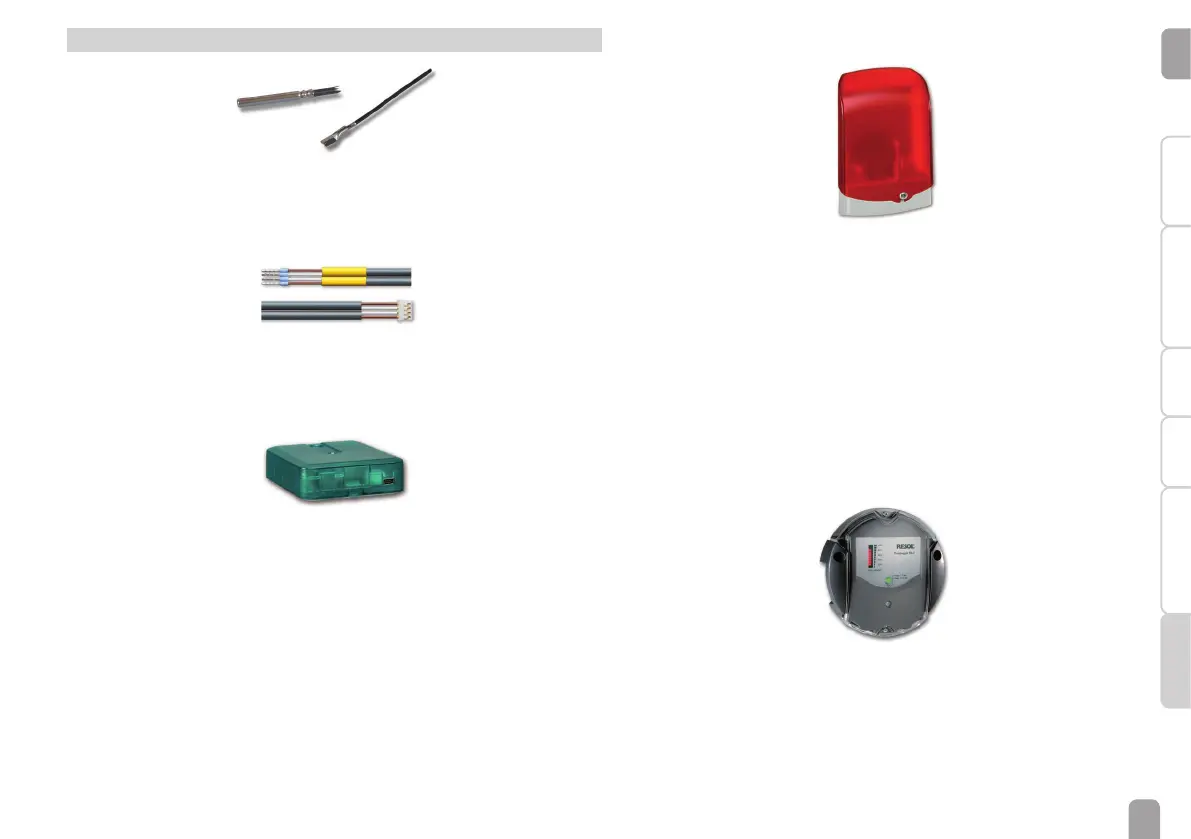

10 Accessories
Temperature sensors
The product range includes high-precision platinum temperature sensors, fl atscrew
sensors, outdoor temperature sensors, indoor temperature sensors, cylindrical clip-
on sensors, also as complete sensors with immersion sleeve.
Sensor adapter cable / PWM connection cable
The connection cable can be used as a sensor adapter cable for the connection to
a JST connector or as a PWM adapter cable.
VBus
®
/ USB & VBus
®
/ LAN interface adapters
The VBus
®
/ USB interface adapter is the interface between the controller and a
personal computer. With its standard mini-USB port it enables a fast transmission of
system data for processing, visualising and archiving data via the VBus
®
. The RESOL
ServiceCenter software is included.
The VBus
®
/ LAN interface adapter is designed for the direct connection of the con-
troller to a PC or router. It enables easy access to the controller via the local net-
work of the owner. Thus, controller access and data charting can be effected from
every workstation of the network. The VBus
®
/ LAN interface adapter is suitable for
all controllers equipped with a RESOL VBus
®
. The RESOL ServiceCenter software
is included.
AM1 Alarm module
The AM1 Alarm Module is designed to signal system failures. It is to be connect-
ed to the VBus
®
of the controller and issues an optical signal via the red LED if a
failure has occurred. The AM1 also has a relay output, which can e. g. be connected
to a building management system (BMS). Thus, a collective error message can be
issued in the case of a system failure. Depending on the controller and the sensors
connected, different fault conditions can be signalled, e. g. sensor failures, excess or
negative system pressure as well as errors in the fl ow rate, such as a dry run of
the pump.
The AM1 Alarm module ensures that occurring failures can be immediately recog-
nised and repaired, even if the system and the controller are diffi cult to access or
located in a remote place. Thus, the reliability and the stable yield of the system are
ensured.
DL2 Datalogger
This additional module enables the acquisition and storage of large amounts of data
(such as measuring and balance values of the solar system) over a long period of
time. The DL2 can be confi gured and read-out with a standard Internet browser
via its integrated webinterface. For transmission of the data stored in the internal
memory of the DL2 to a PC, an SD card can be used. It can be connected directly to
a PC or router for remote access and thus enables comfortable system monitoring
for yield monitoring or for diagnostics of faults.
