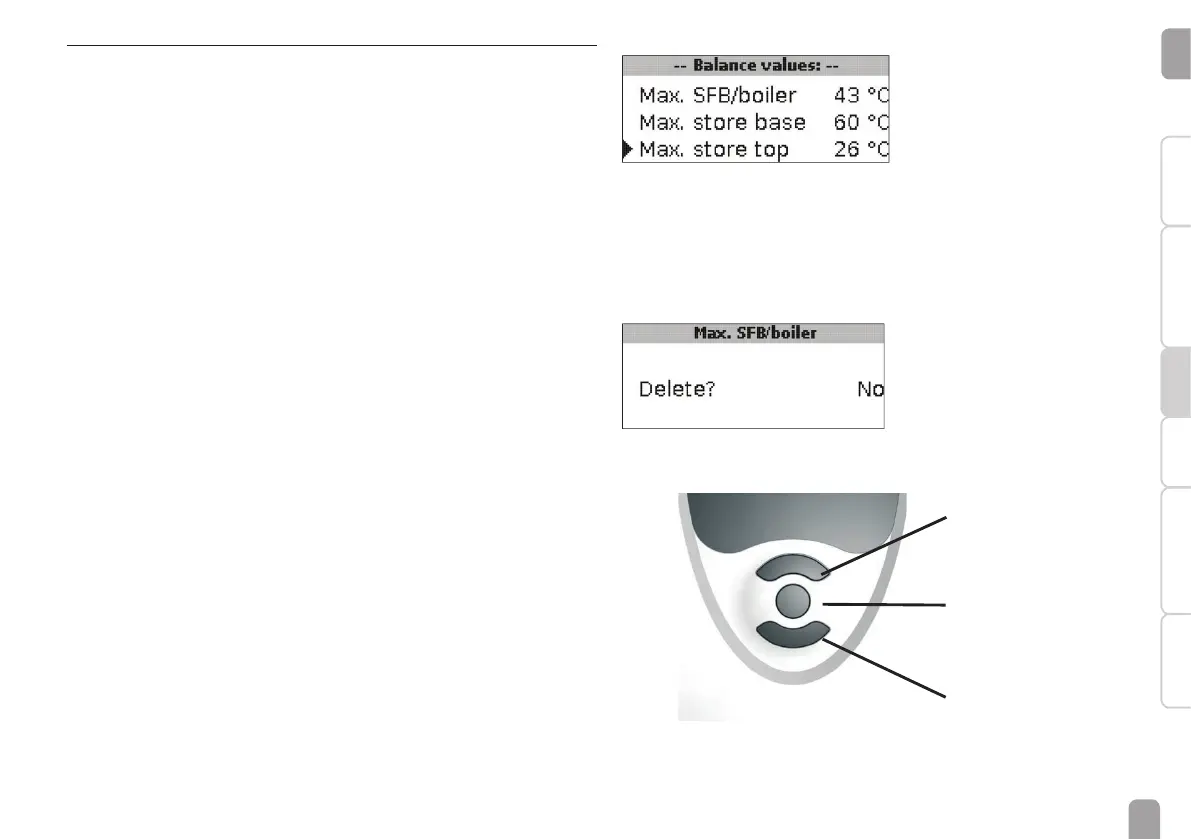

5.3 Balance values
The balance values display shows the following values, depending on the system
selected.
Max. SFB / boiler
Display of the maximum solid fuel boiler temperature in °C measured since com-
missioning or last reset.
Max. store base
Display of the maximum store temperature at the bottom in °C measured since
commissioning or last reset.
Max. store top
Display of the maximum store temperature at the top in °C measured since com-
missioning or last reset.
Max. SFB / boiler fl ow
Display of the maximum temperature of the solid fuel boiler / boiler fl ow in °C
measured since commissioning or last reset.
Max. SFB / boiler return
Display of the maximum temperature of the solid fuel boiler / boiler return in °C
measured since commissioning or last reset.
Max. HC ret
Display of the maximum temperature of the heating return in °C measured since
commissioning or last reset.
Max. store 2
Display of the maximum temperature of store 2 in °C measured since commis-
sioning or last reset.
Oper. hours R1
Display of operating hours of relay 1 since commissioning or last reset.
Oper. hours R2
Display of operating hours of relay 1 since commissioning or last reset.
Operating days
Display of operating days of the device since commissioning or last reset.
The balance values can be set back to zero in the balance and adjustment menu.
Î Press the centre button for 3 s.
The display shows the balance and adjustment menu.
Î Select the balance value to be reset with the lower and upper buttons.
Î Briefl y press the centre button.
A security enquiry appears.
Î Confi rm the security enquiry by with Yes
The value will then be set back to zero.
backwards
SET
(selection/
confi rmation)
forwards (+)
