Mounting
The unit must only be located in dry interior locations. It
is not suitable for installation in hazardous locations. The
interface adapter is light and small enough to not require
any form of mounting. It can be placed directly on the desk
or on a system component (pay attention to the allowed
ambient temperature!).
Four self-adhesive, skid-proof rubber pads are included with
the adapter. If necessary, these can be affixed to the corre-
sponding molds on the base part of the housing to ensure
a secure placement of the device without wall mounting.
If desired, the interface adapter can be mounted to a wall:
Î Mark the desired hanging position on the wall.
Î Drill and prepare the hole with a wall plug and screw.
Î Hang the device onto the screw.
Î Mark the position for the mounting screw (centres
70 mm).
Î Drill and prepare a hole with a wall plug.
Î Hang the device and fasten it by means of the second
screw.

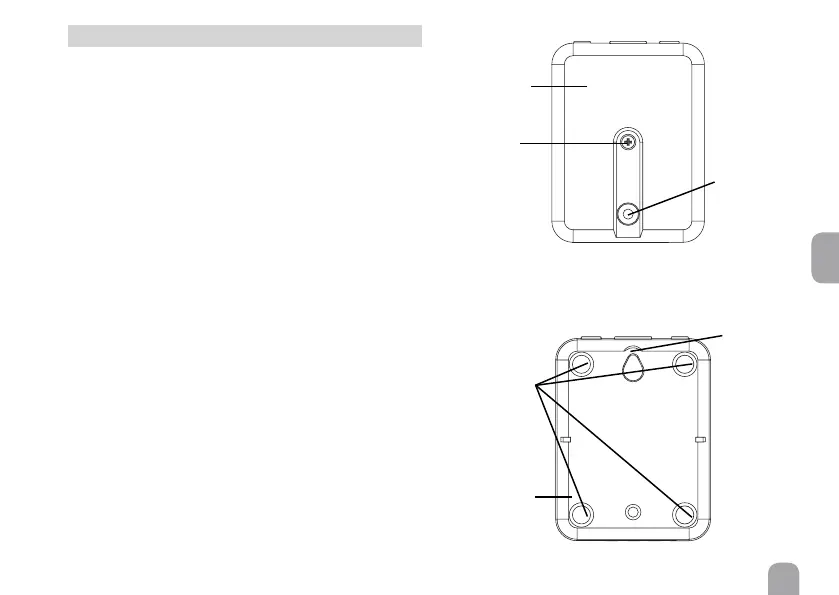

Front view
Back view
Cover screw
Upper part of
the housing
Opening for
the mounting
screw
Molds for the
rubber pads
Fastening
Base part of
the housing
