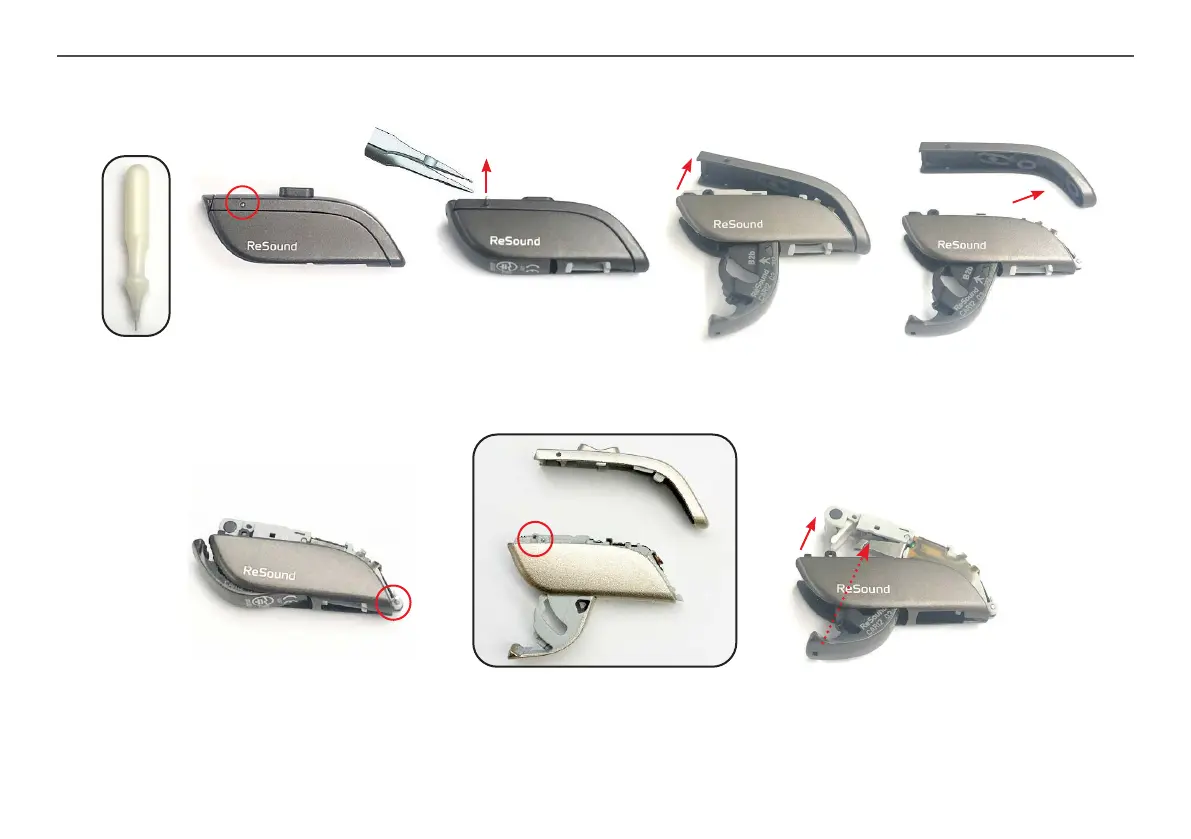

Disassembling Procedure for size 312 & 13 DRW models
For 61-DRW 312: Locate the module pin in the sound outlet end and push it out with a pin removal tool. Pull it out
with a tweezers. For 62-DRW 13: Locate the module pin (in the BAT end) and push it out with a pin removal tool.
Pull it out with a tweezer. For both models: Gently lift up the module and BAT DR from BOT HSG
Locate the TOP HSG pin and push it out using a pin removal tool. Pull the pin complete out using a tweezers. Gently lift o the TOP HSG as shown
PIN REMOVAL TOOL
15502500
312 13
