Replacing Rec Tube

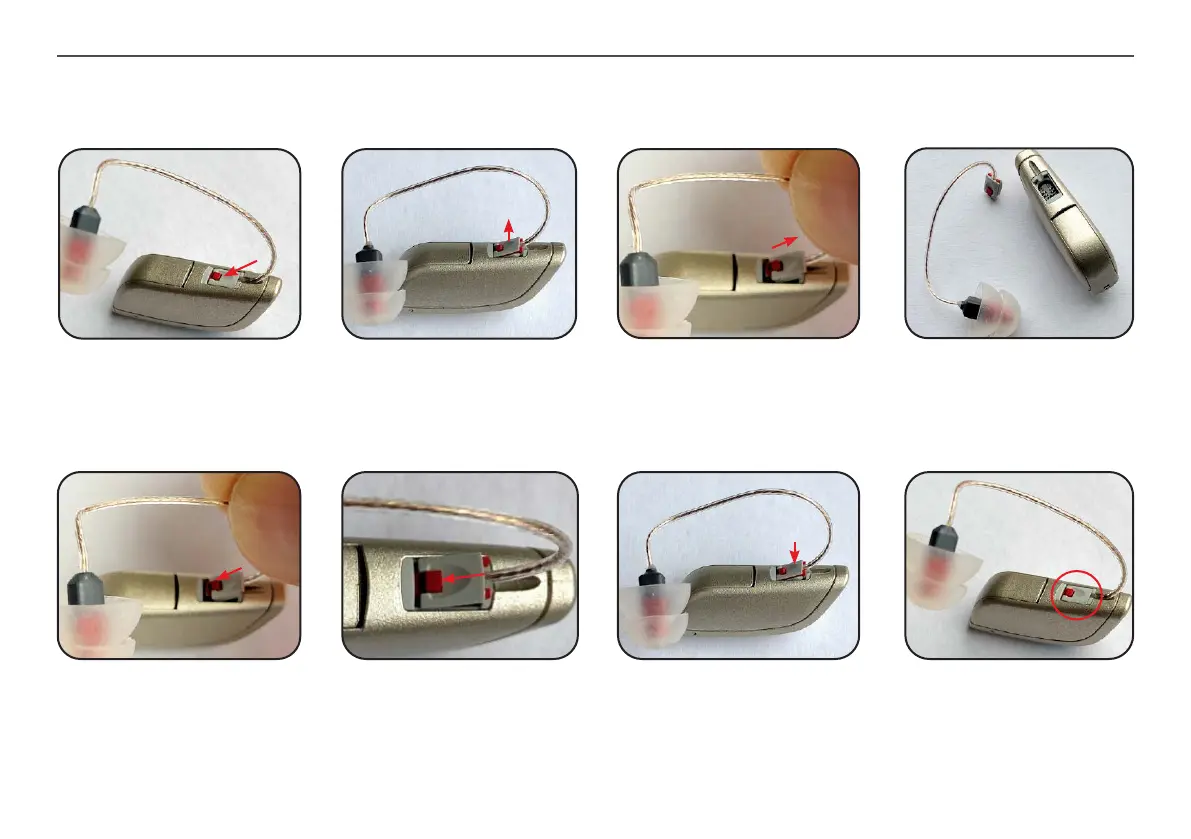

Use a ngernail to slide the receiver lock towards the bat end of the HI (red rec lock for right side is shown here). The receiver lock will unlock the receiver
and it will pop out. Pull the receiver away from the HI
Connect a new receiver by sliding it into the HI as shown. Press to click it in place using e.g. a nger. Check that the rec is correct in place
Pop out
Click
Remove the rec
Use either the removal procedure described here or use the rec removal tool - see instr in the guide which is enclosed the rec removal tool kit
Connect the rec
