Doc 0371130 rev. F
Page 16 of 22
Not subject to issue control when printed

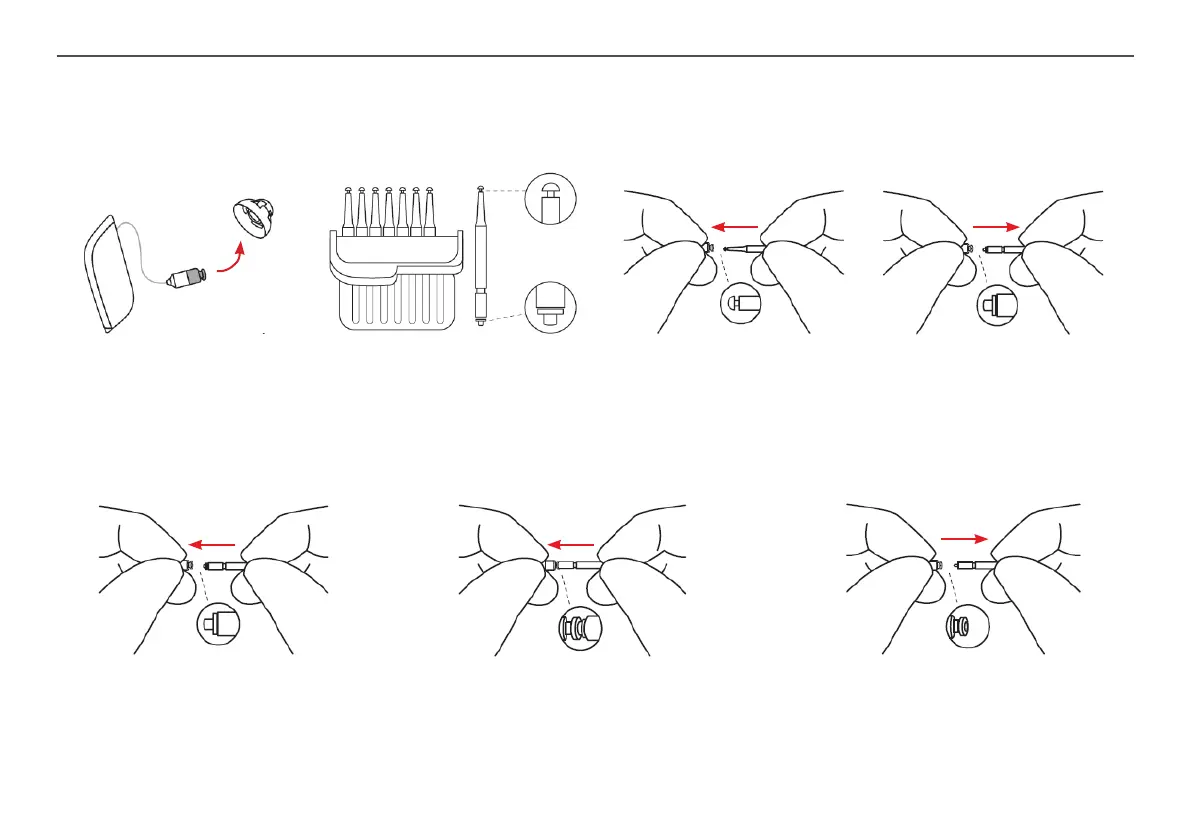

Replacing Filter in Rec Tube
Remove the used wax lter:
Box of 8 wax lter tools. The wax lter
tool has two functions:
A removal tip to collect the used l-
ter, and a replacement tip with a new
white lter
Insert the removal tip into the used wax lter and then pull the tool straight
out. It is important to pull it straight and not on an angle
Insert the other end of the tool into
the sound outlet (the end with the re-
placement lter)
Insert the new wax lter:
Gently press the replacement lter
straight into the sound outlet until the
outer ring is touching the sound outlet
Pull the tool straight out – your new wax
lter will remain in place. Re-attach your
dome or a replacement dome
If a dome is mounted, remove
it before starting replace the
wax lter
