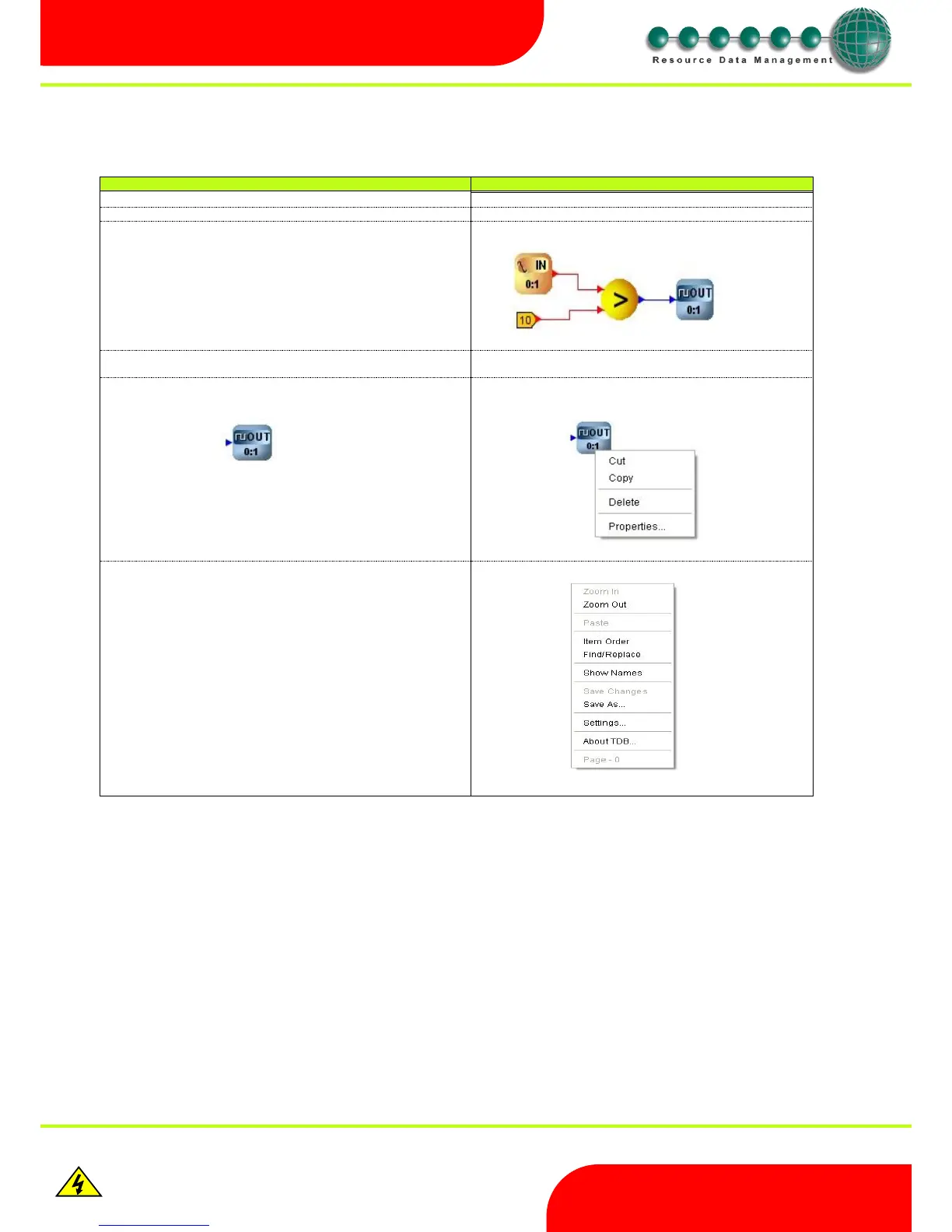

Designing the Application
General editing principles
Mouse Action
Result
Left double click on object
Opens object properties box
Left click and hold-drag-release
Moves object
Left click hold-drag-release on wire connection points (nodes)
Blue points to blue, or red to red
Note: Red to blue and blue to red connections are not allowed
Wire objects point to point
Left click hold-drag-release on wire connection, then workspace (not
a node)
Unwires object
Right click on object
Sub menu: -
Right click on workspace
Save Changes
Save As...
Sub menu: -
