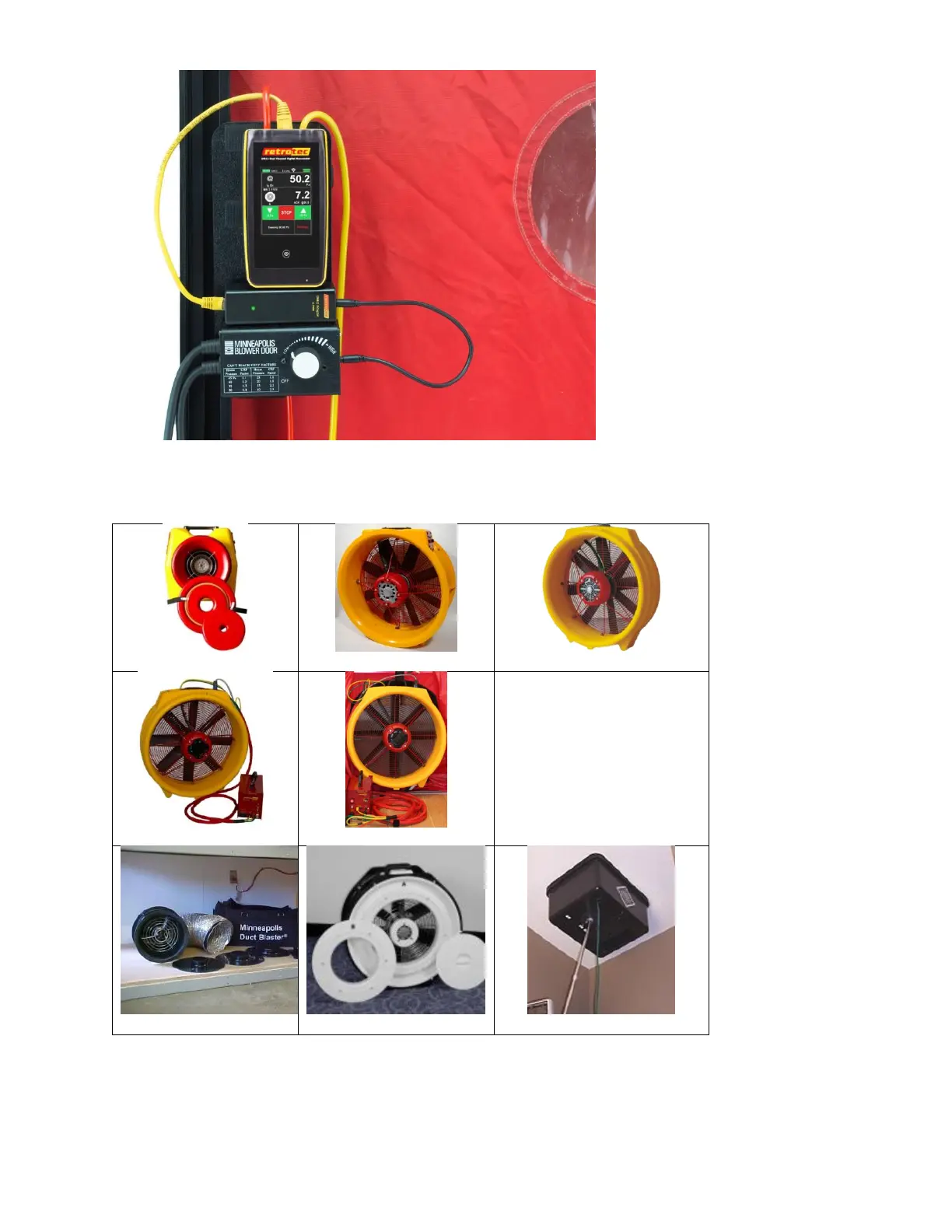

Figure 12: Control a TEC fan using the gauge and Fan Speed Control Adapter (part FN275, produced by Retrotec)
Table 5: Images of devices compatible with the gauge
“200”
“1000”- yellow tube only
“2000”- yellow tube only
“3000”- yellow tube only
“3000SR”-yellow and green tube
“MN DB”
“MN 3/4”
“Exhaust” (Fan Flow Meter)
