Page 24 of 91
© Retrotec 2017

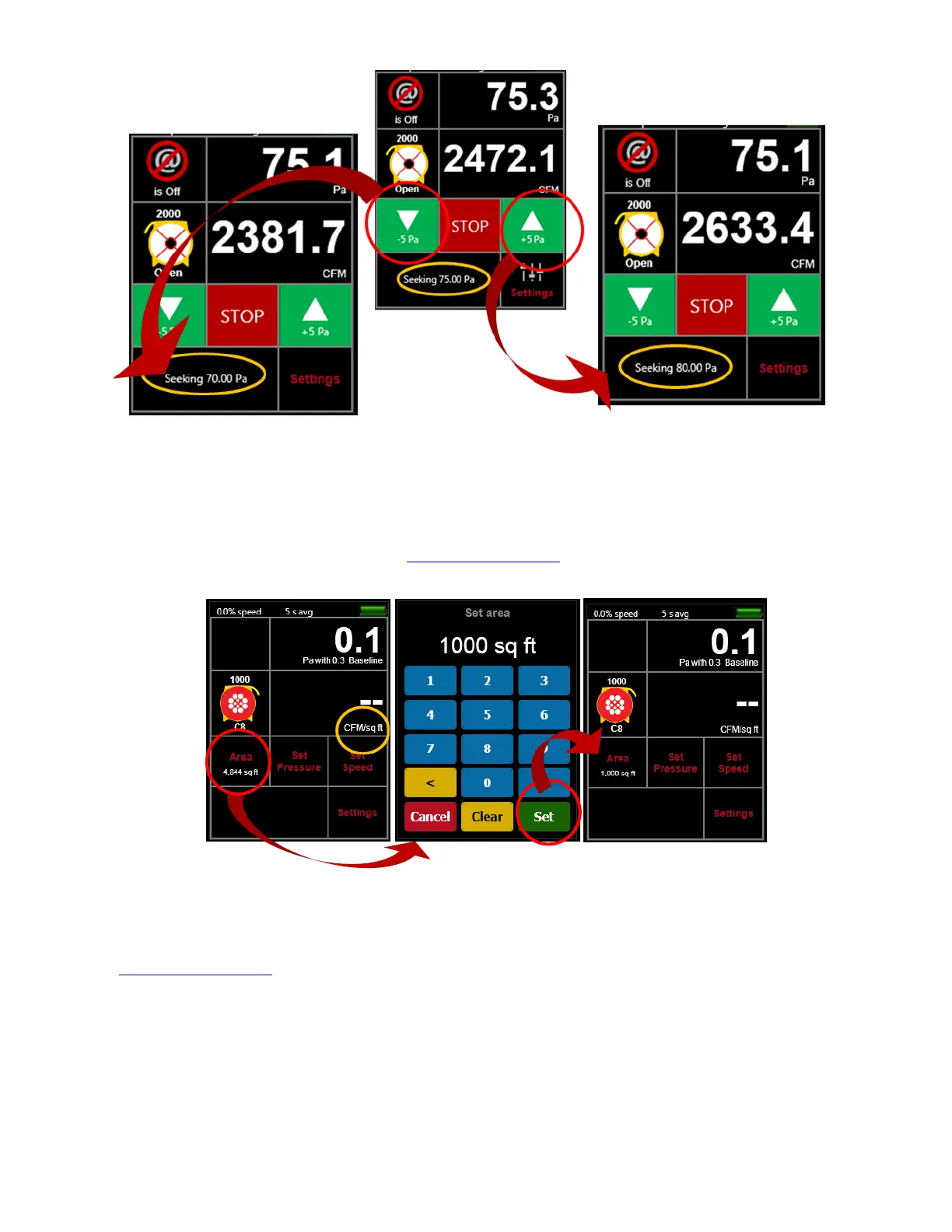

Figure 18: Adjust pressure up or down 5 Pa using [Jog] keys
3.3.7. Tap [Area] or [Volume] to enter dimension for particular Results
The [Area] key only appears on the Home screen if one of the permeability results requiring an input of
area for the calculation is selected as the “Result to be displayed” on [Channel B].
Figure 19: Enter an [Area] if the Result to be displayed is calculated with an Area
The [Area] key from the Home screen opens the same screen as the [Settings][Area] key combination.
The [Volume] key only appears on the Home screen if “ACH” (Air Changes per hour) is selected as the
“Result to be displayed” on [Channel B].
