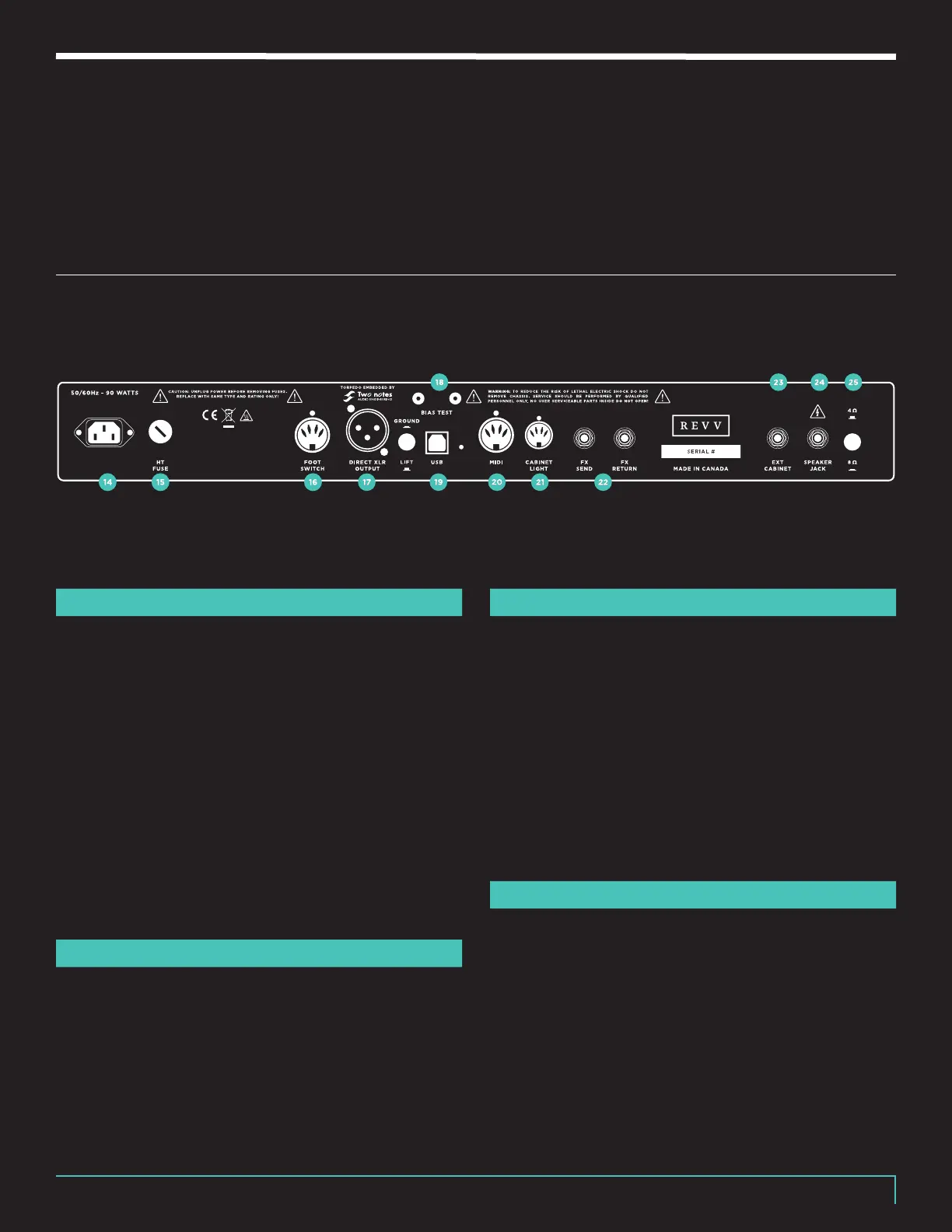

BACK PANEL
MAIN POWER CONNECTION
14
When plugging the amplifier into the mains A/C wall
receptacle, always make sure the amplifier power and
standby switches are in the o position. The Required
voltage and fuse ratings are marked on the amplifier
underneath the mains input. Verify they are correct for
your electrical mains supply before plugging it in.
The mains input is a 2-part assembly on the D25; not
only will it allow you to plug the amplifier power cable
into it, but the main fuse is also a part of the assembly.
Should the fuse ever blow on the amplifier, you will also
find the fuse in this assembly. A spare fuse compartment
is built-in to keep a spare fuse with you. The fuse type
is marked on the rear of the amplifier.
HT FUSES
15
The HT fuse is in place to protect you and the amplifier
from overload conditions. Always replace them with
the same type and rating only! Always unplug the
amplifier from the mains before replacing the fuses.
Fuse requirements are marked on the rear panel of the
amplifier.
FOOT SWITCH JACK
16
This connection powers your foot switch and allows
it to control the D25. Should the provided foot switch
cable fail, any 5 PIN DIN cable can be used. For use
only with the included Revv D25 foot switch.
Note: This cable sends important data between the
amplifier and the foot switch. If a lesser quality 5 PIN
DIN cable is used, incorrect or erratic behavior could
occur. A high-quality cable is recommended, which can
be purchased on the Revv website should you need a
replacement.
XLR OUTPUT & GROUND LIFT
17
The balanced output XLR jack is a direct output from
Two-notes Torpedo-embedded. Connecting this output
to the front of house or an audio interface lets you
capture D25’s tone without a microphone! You may use
this XLR output simultaneously with D25’s speaker or
alone for silent performance. (See Section “Two-notes
Torpedo-embedded.” Page 14 for more information)
The ground lift switch will defeat the ground on
D25 should you encounter ground noise from other
equipment you have connected.
