Rexnord Falk A - Drive Identification; Basic J Drive Configuration; Drive Type Configurations; Drive Accessories

Drive Identification
J is the basic drive identification. It can be outfitted for use as a shaft mounted drive JR; a flange mounted drive JF; or a screw
conveyor drive JSC, as illustrated below. These unique identifiers, JR, JF & JSC, are used throughout this manual to assist you in
identifying the instructions which apply to your drive arrangement. The prefix “M” identifies a drive that features a nominal metric
high speed shaft.
Rexnord Industries, LLC 3001 W. Canal St., Zip 53208-4200, Milwaukee, WI USA (PN-2128394) 378-200
Telephone: 414-342-3131 Fax: 414-937-4359 November 2010
e-mail: info@rexnord.com web: www.rexnord.com Supersedes 6-07
Falk™
Quadrive
Shaft Mounted Drives Model A
•
Owners Manual
Sizes 5107-5315 (Page 3 of 44)

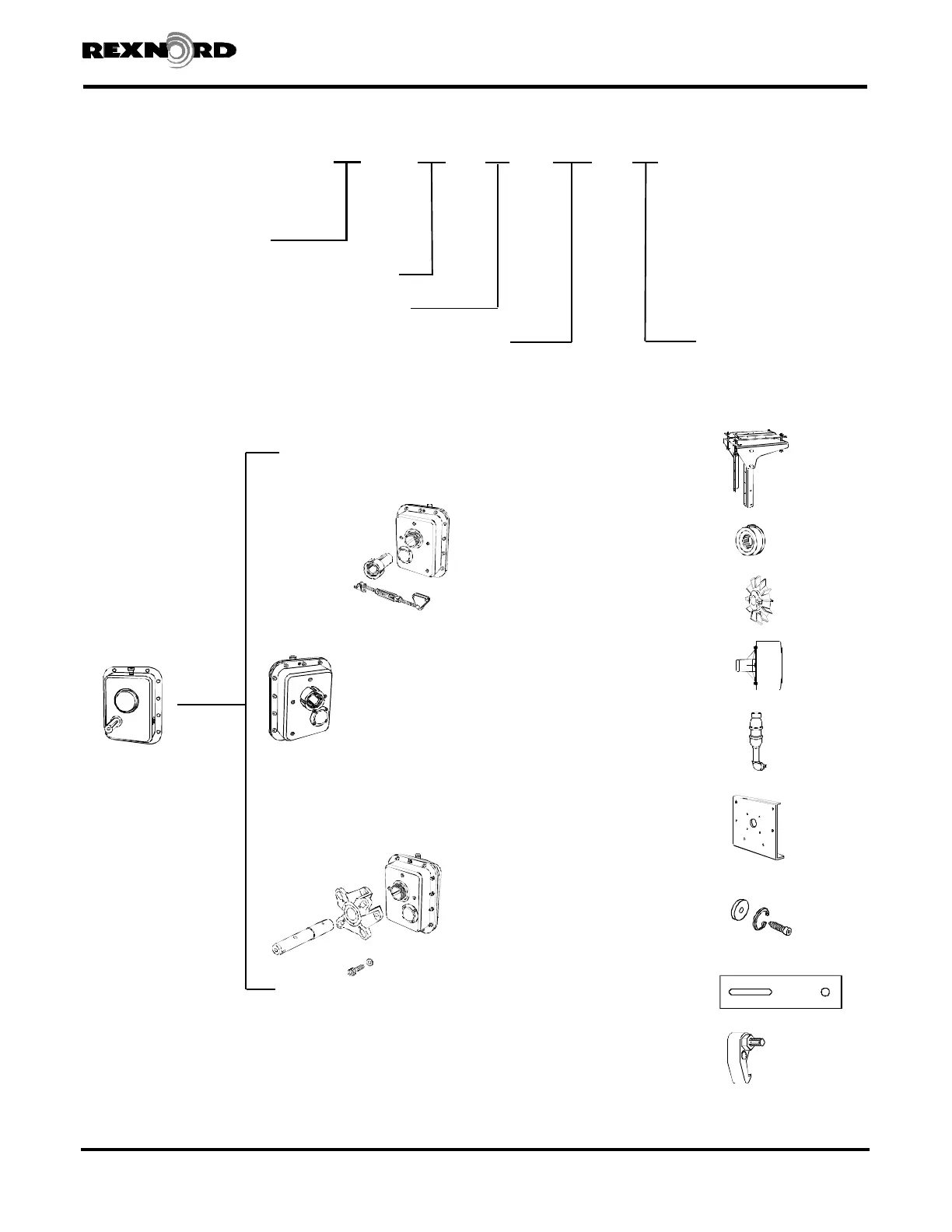

5 107 J 25 A
Size (Series)
Maximum Bushing Bore (1 7/16")
Drive Type
Ratio (Nominal 25:1) Model
Basic “J”
(JR) Shaft Mounted Drive
1) Basic Drive
2) Torque Arm
3) TA Taper Bushing
(JSC) Screw Conveyor Drive
1) Basic Drive
2) Seal Housing
3) Drive Shaft
+ Motor Mounts
+ Backstops
+ Shaft Fans
(5215 thru 5315 only)
+ TA Removal Tool
+ Vertical Standpipe
+ Trough Ends
+ Thrust Plate Kits
+ V-Belt Guards
(JF ) Flange Mounted Drive
1) Basic Drive
TA Taper Bushing Optional
+ Electric Fans
(5307 & 5315 only)
NOTE: Use a TA-Taper bushing when mounting these drives on a straight driven shaft. (Hollow shaft is taper bored.)
