IDENTIFYING & ORDERING PARTS
1. Refer to the drive component diagram, Figure 18, and
exploded parts diagram, Figure 19, and make a list
of the parts required by part reference number. For
example, Ref. #15, 20 100, 1A, 2A1, and 2A2. When a
gasketed joint is separated, always replace with new
shim-gaskets. Order Ref. #100 shim-gasket kit.
2. Now refer to the parts list, Table 11, and determine the
part description and Falk part number using the part
reference number (Step 1) and the drive identification
(e.g. 5107J25) in the column headers of the parts list.
3. Use the part description and Falk part number to order
the required parts. In the examples in steps 1 and
2, Ref. #15, 20, 100, 1A, 2A1 and 2A2 for a 5107J25
would be ordered as follows:
Seal cover . . . . . . . . . . .4723094
Seal . . . . . . . . . . . . . .2921419
Shim-gasket kit . . . . . . . .4729429
Shaft assembly with gear . . .4729373
Bearing . . . . . . . . . . . .2926359
Bearing . . . . . . . . . . . .2926359
4. Table 12 and 13 convert Falk part numbers to
bearing and seal manufacturer’s part numbers. Tooth
combinations are listed in Appendix G.
5. Place your order with your local Rexnord distributor. If
you need to locate a distributor, phone (414)342-3131
in the United States or Canada.
RECOMMENDED SPARE PARTS
1. For non-critical drive applications, a complete set of
bearings, seals and shim-gaskets is recommended.
If stored in their original packaging in a dry, cool
location, these parts have a minimum shelf life of
five years.
2. For critical drive applications (where an outage would
create a major production loss), a complete drive is
recommended.

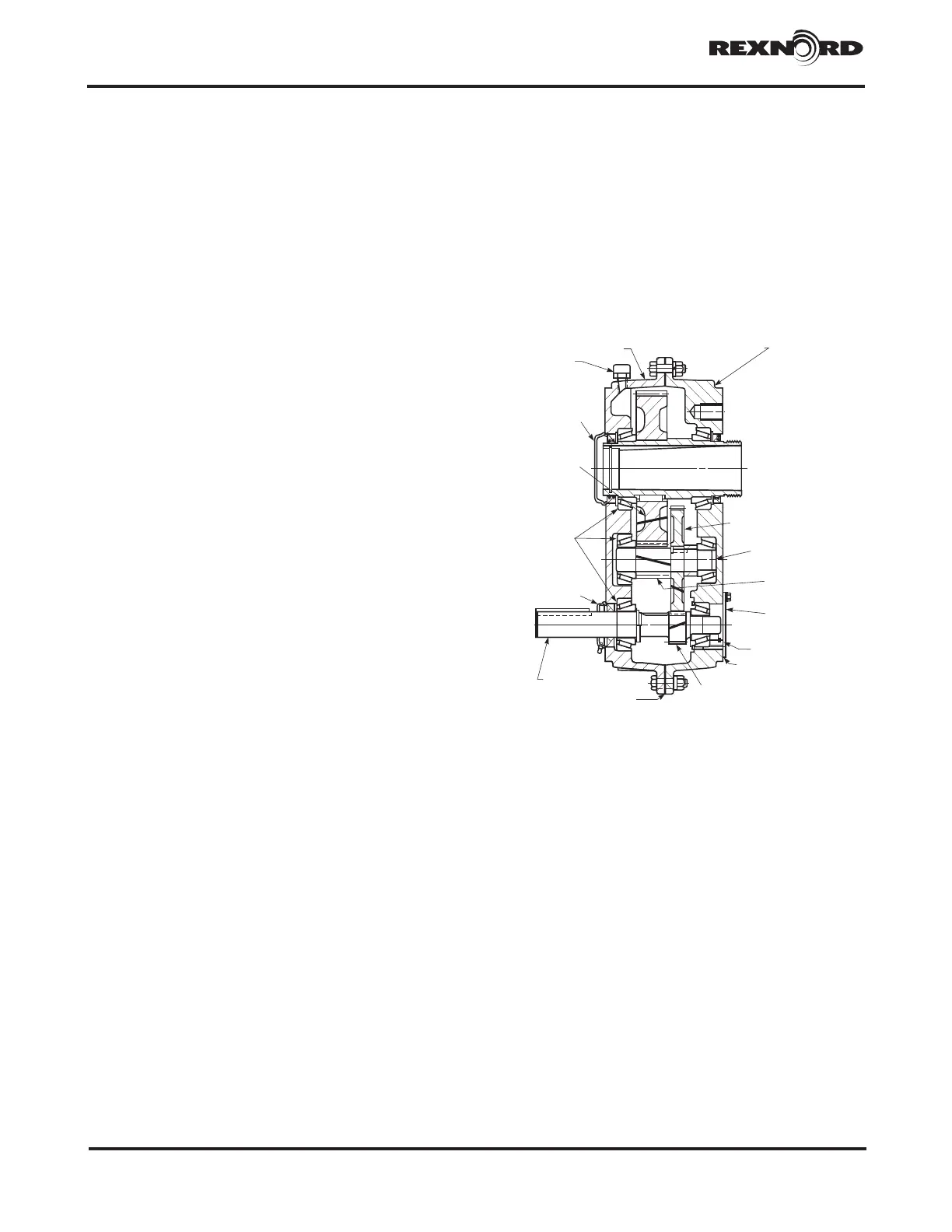

INPUT HOUSING HALF
OUTPUT HOUSING HALF
LOW-SPEED
SHAFT COVER
LOW-SPEED
GEAR
METAL SHIMS
HIGH-SPEED
SEAL COVER
HIGH-SPEED
SHAFT ASSEMBLY
GASKET
ELIMINATOR
HIGH-SPEED PINION
GASKET
BACKSTOP
HIGH-SPEED
SHAFT COVER
(BACKSTOP COVER)
LOW-SPEED
PINION
LOW-SPEED
PINION
ASSEMBLY
HIGH-SPEED GEAR
AIR VENT
Figure 18
