Vertical Standpipe Installation
INTRODUCTION
The following instructions apply to the installation of
standpipe kits to standard drives mounted for vertical
operation (high-speed shaft up or down). Drawings are
representative of this series of drives and may not agree in
exact detail with all drive sizes.
HIGH-SPEED SHAFT DOWN — FIGURE 1
1. After installing the drive per the Owners Manual
installation instructions, determine which of the lower
side plug locations on the drive will provide the best
location for the standpipe, observing clearance
required to remove dipstick (Dimension D, Table 1).
Discard the air vent. When the air vent location is not
used for the standpipe, relocate the pipe plug from the
selected standpipe location to the air vent location. Re-
coat pipe plug threads with Permatex #3 or equivalent
sealant before reinstalling.
6. Scribe Dimensions X + A and X + B on the dipstick as
illustrated in Figure 1. Make measurements from the
felt pad in the dipstick cap.
7. Lightly chisel permanent oil level marks on the scribed
lines and cut the dipstick to the length marked. File
end of dipstick smooth.
8. Install magnetic drain plug furnished in oil drain
location.
9. Remove the oil filler plug. Add oil until the oil level
reaches the “Full” mark on the dipstick. Coat the filler
plug (not vented) with Permatex #3 or equivalent
sealant and replace it.
10. Filler plug must always be removed to relieve
entrapped air before checking oil level.
HIGH-SPEED SHAFT UP — FIGURE 2
1. After installing the drive per the Owners Manual
installation instructions, determine which of the upper
four side plug locations on the drive will provide the
best location for the standpipe, observing clearance
required to remove dipstick (Dimension D, Table 1).
Discard the air vent. When the air vent location is not
used for the standpipe, relocate the pipe plug from the
selected standpipe location to the air vent location. Re-
coat pipe plug threads with Permatex #3 or equivalent
sealant before reinstalling.
2. Coat all pipe threads of kitted parts with Permatex #3
or equivalent sealant.
3. Assemble kitted parts to drive as illustrated in Figure
2 and then secure the standpipe with an external
support to maintain its vertical position.
4. See Figure 1 and follow steps 4 thru 7.
5. Install magnetic drain plug furnished in oil drain
location.
6. Remove one of the three oil level plugs. Add oil
through the standpipe until the oil level reaches
the plug hole. Coat the plug with Permatex #3 or
equivalent sealant and replace it. Be sure to use only
the vented filler plug in the standpipe.
TABLE 1 — Dimensions – Inches (mm)
DRIVE SIZE A B C D
5107 0.90 (23) 1.10 (28) 1.60 (41) 19.2 (488)
5115 0.90 (23) 1.10 (28) 1.60 (41) 18.3 (465)
5203
1.08 (27) 1.28 (33) 1.78 (45) 18.2 (462)
5207 1.14 (29) 1.34 (34) 1.84 (47) 20.4 (518)
5215 1.54 (39) 1.74 (44) 2.24 (57) 22.1 (561)
5307 1.54 (39) 1.84 (47) 2.34 (59) 23.7 (602)
5315
1.70 (43) 2.20 (56) 2.70 (69) 23.1 (587)
2. Coat all pipe threads of kitted parts with Permatex #3
or equivalent sealant.
3. Assemble kitted parts to the drive as illustrated in
Figure 1 and then secure the standpipe with an
external support to maintain its vertical position.
FILE SMOOTH
OIL
LEVEL
MARKS
FULL
LOW
OIL DRAIN
USEREDUCING
BUSHING FOR
STRAIGHT
EDGE
SCALE
X
D
CLEARANCE
FORDIPSTICK
REMOVAL
X+A
X+B
X+C
{
FELT
PAD
DIPSTICK
CAP
FILLER
PLUG
SIZES 5107 THRU 5207

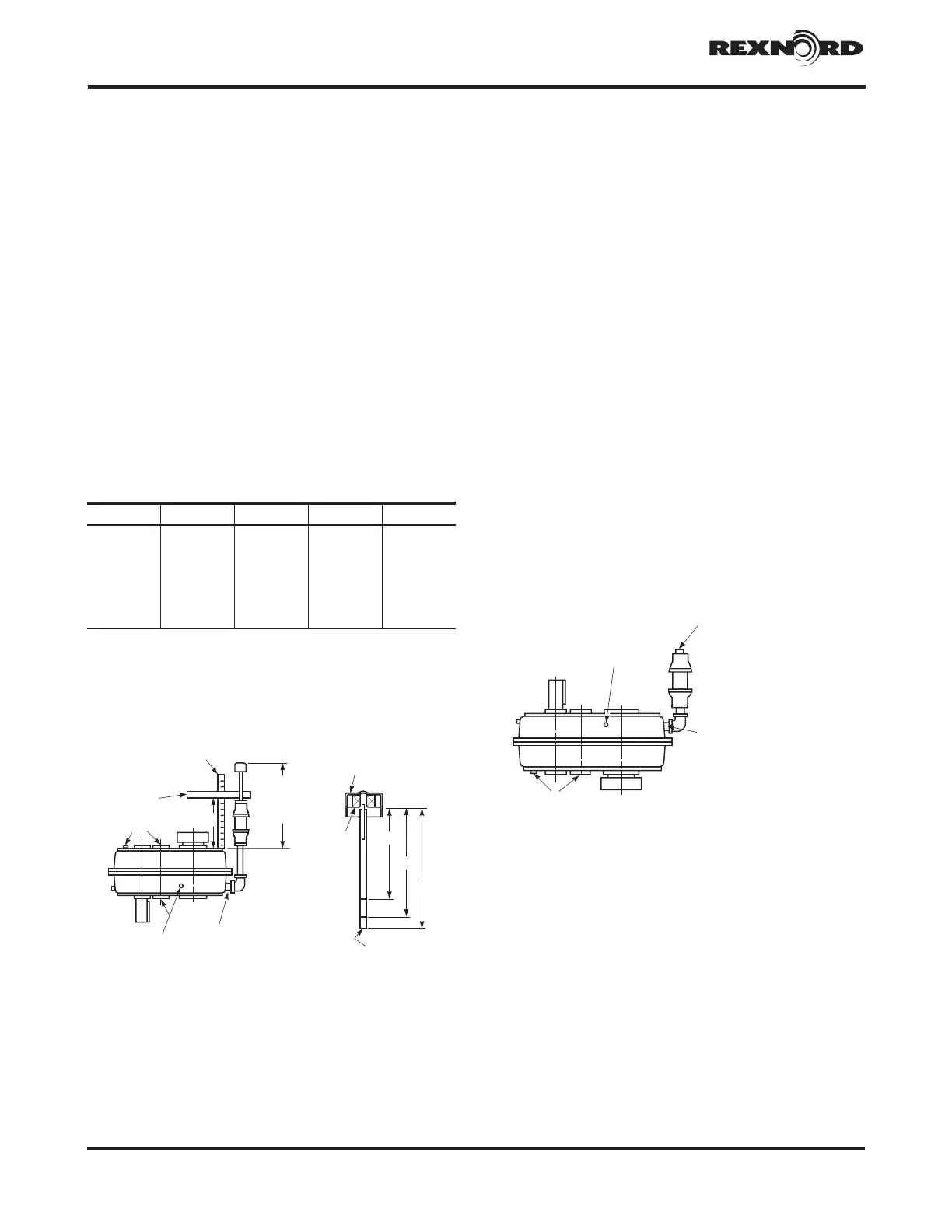

Figure 1
4. Carefully measure Dimension “X” as illustrated in Figure 1.
5. From Table 1:
X + A equals oil level “Full” mark.
X + B equals oil level “Low” mark.
X + C equals dipstick length.
OIL LEVEL
OIL DRAIN
VENTED FILLER PLUG
USE REDUCING BUSHING
FOR SIZES 5107 THRU 5207
Figure 2
