Falk Quadrive Shaft Mounted Drives Model A • Appendix F
Sizes 5107-5315 (Page 41 of 52)
Rexnord (PN-2128394) 378-200
3001 W. Canal St., Milwaukee, WI 53208-4200 USA January 2019
Telephone: 414-342-3131 Fax: 414-937-4359 www.rexnord.com Supersedes 04-17
Modifications for Non-Standard Mounting Positions
UP
STANDARD DRIVE
MOUNTING LIMITS
The standard drive incline limits from
the basic 3, 6, 9 & 12 o’clock mounting
positions are given in Section I, Page 4.
For higher limits, follow the instructions
on Page 38 and the drawings below (6
o’clock illustrated).
Standard Pipe Fittings
— Inches
.375-18 NPT Falk No. .500-14 NPT Falk No.
.375 Street Elbow
0915252
.500 Street Elbow
0915251
.375 Cap
0914802
.500 Cap
0914803
.375 x 1 Nipple
0915724
.500 x 1.12 Nipple
0915734
.375 x 1.5 Nipple
0915725
.500 x 1.5 Nipple
0915735
.375 x 2 Nipple
0915722
.500 x 2 Nipple
0915736
.375 x 3 Nipple
0915727
.500 x 2.5 Nipple
0915723
.500 x 3 Nipple
0915737
.500 x 4 Nipple
0915739
c Kits: Falk Nos. 0786775 & 0786776, oil expansion chamber parts. All
pipe fittings are galvanized.
CODE
C — Cap N — Nipple
E — Street Elbow P — Pipe Plug
L — Oil Level STD — No Modifications

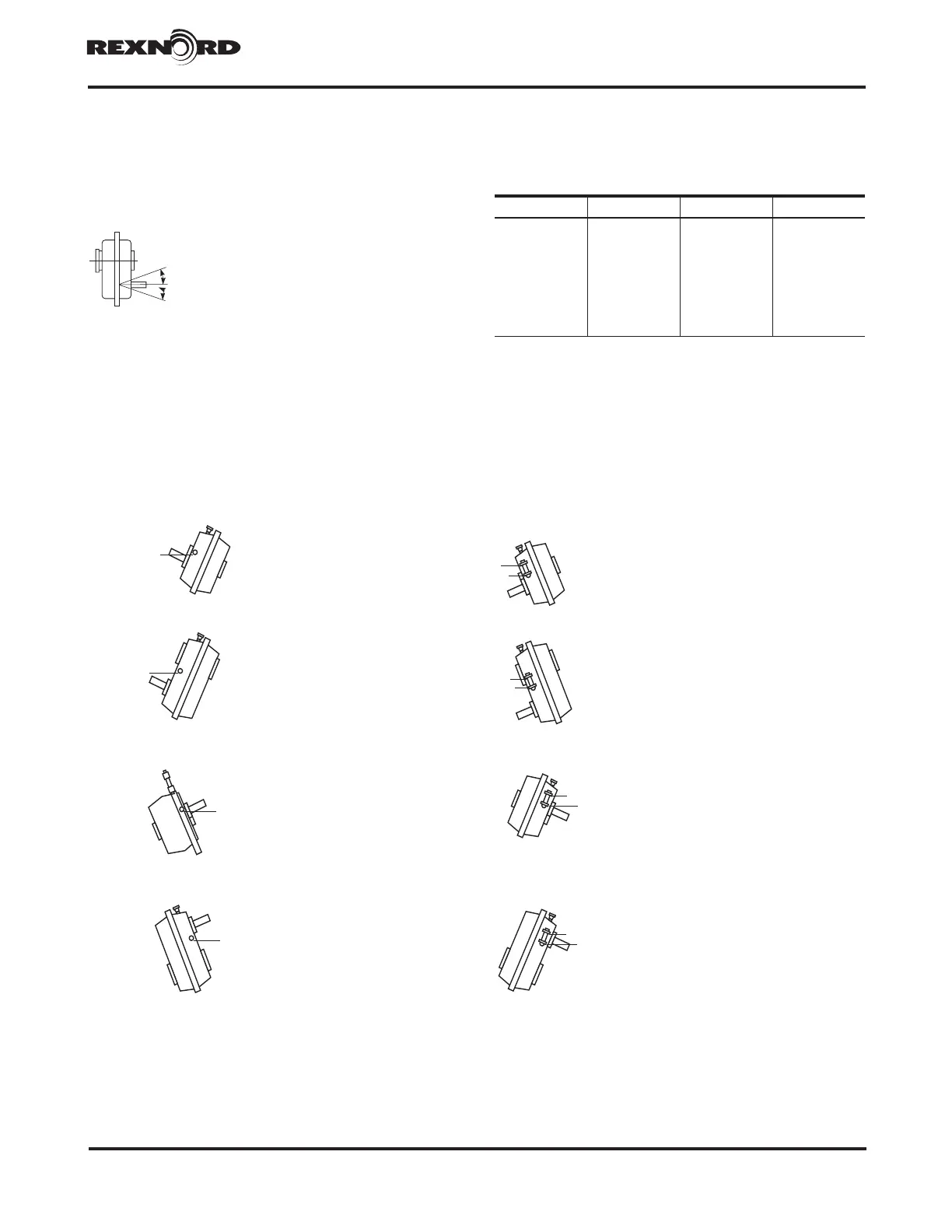

HORIZONTAL DRIVE MODIFICATIONS FOR INCLINED H.S. SHAFT
H.S. Shaft Inclined 20 to 30° Up H.S. Shaft Inclined 5 to 30° Down
3 o’Clock — H,S,S Up 3 o’Clock — H,S,S Down
6 o’clock — H,S,S Up 6 o’Clock — H,S,S Down
9 o’clock — H,S,S Up 9 o’Clock — H,S,S Down
12 o’Clock — H,S,S Up 12 o’Clock — H,S,S Down
5107 THRU 5315 = STD
5107 THRU 5315 = STD
5107 THRU 5307 = STD
5315 = KIT 0786776
5107 THRU 5315 = STD
5107 = 5-25° .375 E/P
5107 = 26-30° .375 E/C, .375 X 1.00N & KIT 0786775
5115 = 5-20° .375 E/C & .375 X 1.00N
5115 = 21-30° .375 E/C, .375 X 2.00N & KIT 0786775
5203 = 5-30° .375 E/C & .375 X 1.50N
5207 = 5-15° .375 E/P
5207 = 16-30° .375 E/C & .375 X 2.00N
5215 = 5-30° .500 E/C & .500 X 2.50N
5307 = 5-30° .500 E/C & .500 X 2.50N
5315 = 5-30° .500 E/C & .500 X 2.50N
5107 = .375 E/P
5115 = .375 E/C & .375 X 2.00N
5203 = .375 E/C & .375 X 1.50N
5207 = .375 E/C & .375 X 2.00N
5215 = .500 E/C & .500 X 2.50N
5307 = .500 E/C & .500 X 2.50N
5315 = .500 E/C & .500 X 2.50N
5107 = 5-15° STD
5107 = 16-30° .375 E/P & KIT 0786775
5115 = 5-15° .375 E/P
4115 = 16-30° .375 E/C, .375 X 2.00N & KIT 0786775
5203 = 5-20° .375 E/P
5203 = 21-30° .375 E/C, .375 X 1.50N & KIT 0786775
5207 = 5-20° .375 E/C
5207 = 21-30° .375 E/C, .375 X 2.00N & KIT 0786775
5215 = 5-15° .500 E/P
5215 = 16-30° .500 E/C, .500 X 2.00N & KIT 0786776
5307 = 5-20° .500 E/P
5307 = 21-30° .500 E/C, .500 X 2.00N & KIT 0738471
5315 = 5-30° .500 E/C, .500 X 4.00N & KIT 0738471
5107 = 5-15° .375 E/P
5107 = 16-30° .375 E/C, .375 X 1.00N & KIT 0786775
5115 = 5-15° .375 E/P
5115 = 16-30° .375 E/C, .375 X 2.00N & KIT 0786775
5203 = 5-30° .375 E/C & .375 X 1.50N
5207 = 5-30° .375 E/C & .375 X 2.00N
5215 = 5-30° .500 E/C & .500 X 2.50N
5307 & 4315= 5-30° .500 E/C & .500 X 2.50N
4 This oil level applies when only a street elbow with a pipe plug is used.
L — Always locate at high side plug.
KIT — Install at standard air vent location.
