Falk Quadrive Shaft Mounted Drives Model A • Appendix L
Sizes 5107-5315 (Page 49 of 52)
Rexnord (PN-2128394) 378-200
3001 W. Canal St., Milwaukee, WI 53208-4200 USA January 2019
Telephone: 414-342-3131 Fax: 414-937-4359 www.rexnord.com Supersedes 04-17
WARNING: Consult applicable local and national safety
codes for proper guarding of rotating members.
WARNING: Lock out power source and remove all external
loads from drive before servicing drive or accessories.
with belt guard back
with hardware
with fan
with fan cover and plate
with sheaves
with belt guard cover
CH_930001
WARNING
!
with belt guard back
with hardware
with fan
with fan cover and plate
with sheaves
with belt guard cover
CH_930001
WARNING
!
with belt guard back
with hardware
with fan
with fan cover and plate
with sheaves
with belt guard cover
CH_930001
WARNING
!
with belt guard back
with hardware
with fan
with fan cover and plate
with sheaves
with belt guard cover
CH_930001
WARNING
!
with belt guard back
with hardware
with fan
with fan cover and plate
with sheaves
with belt guard cover
CH_930001
WARNING
!
with belt guard back
with hardware
with fan
with fan cover and plate
with sheaves
with belt guard cover
CH_930001
WARNING
!

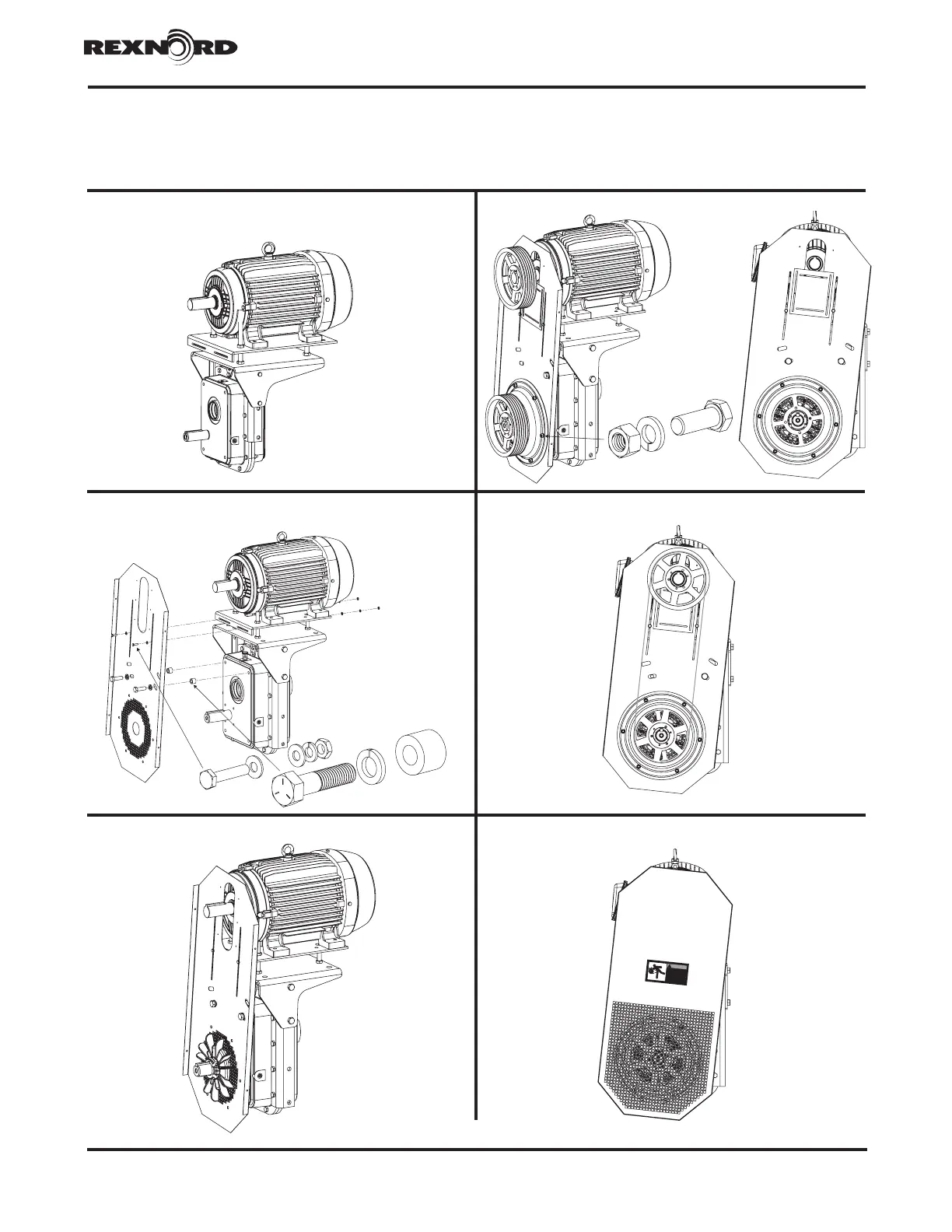

1. ASSEMBLE MOTOR MOUNT AND MOTOR TO DRIVE AS
INSTRUCTED IN APPENDIX D
4. INSTALL FAN COVER AND SLOT COVER(S)
2. ASSEMBLE BELTGUARD BACKPLATE WITH SPACERS TO
DRIVE FRONT AND MOTOR PLATE
5. MOUNT BELT DRIVE AS INSTRUCTED IN APPENDIX D
3. INSTALL FAN ONTO SHAFT 6. MOUNT COVER AND APPLY WARNING LABEL
OSHA V-Belt Guard Installation for Drives with Shaft Fan
no screws
with screws
with cover plate
with pulleys
with cover
with belt
To Next Page
