L1 L2 L3 (+) B U V W
Easy Start Guide
1. Power and Motor Connections (Single Phase)
Page 2
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
Before commencing, confirm that the Inverter and
all cables are completely isolated from the power
supply, have been isolated for at least 5 minutes
and that the motor is not turning.

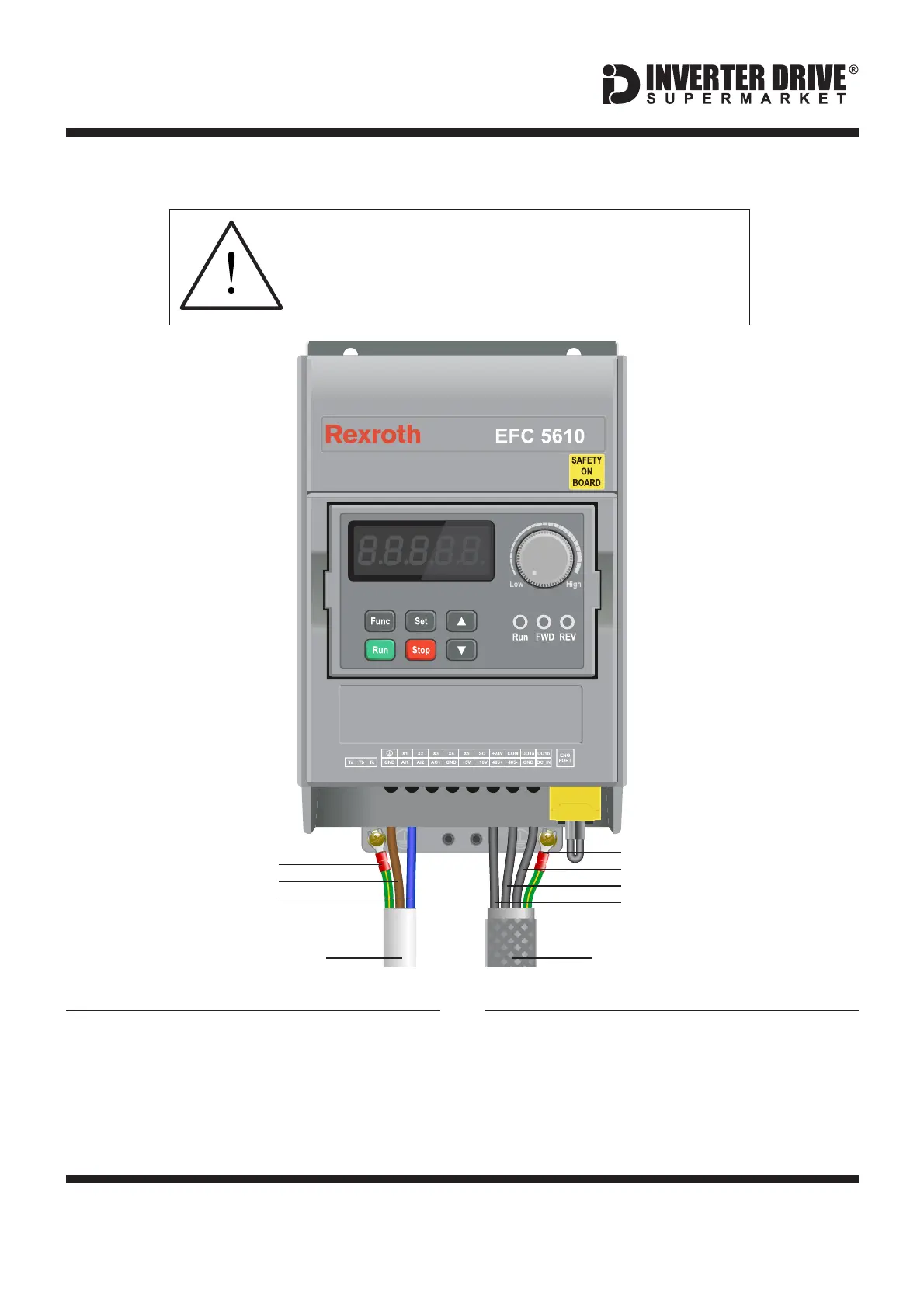

Bosch Rexroth EFC 5610 Series Inverter
MotorPower
Earth
Phase (W)
Phase (V)
Phase (U)
Live (L1)
Neutral (L2)
Earth
The order of the three motor phases
determines the initial direction the motor turns.
Notes:
The illustration above is based on the 0.75kW
230V model. The terminal layout for other
ratings is similar.
The supply must match the Inverter
specification.
Important:
Use screened or armoured cable between the
Inverter and Motor and ensure it is grounded
as shown.
The motor must be separately earthed.
