Easy Start Guide
6. How to set a Parameter value
Page 6
All content, including but not limited to graphics, text and procedures copyright The Inverter
Drive Supermarket and must not be reproduced or altered without prior written permission.
©
This guide has been produced by The Inverter Drive Supermarket Ltd.
Bosch Rexroth EFC 5610 Series Inverter

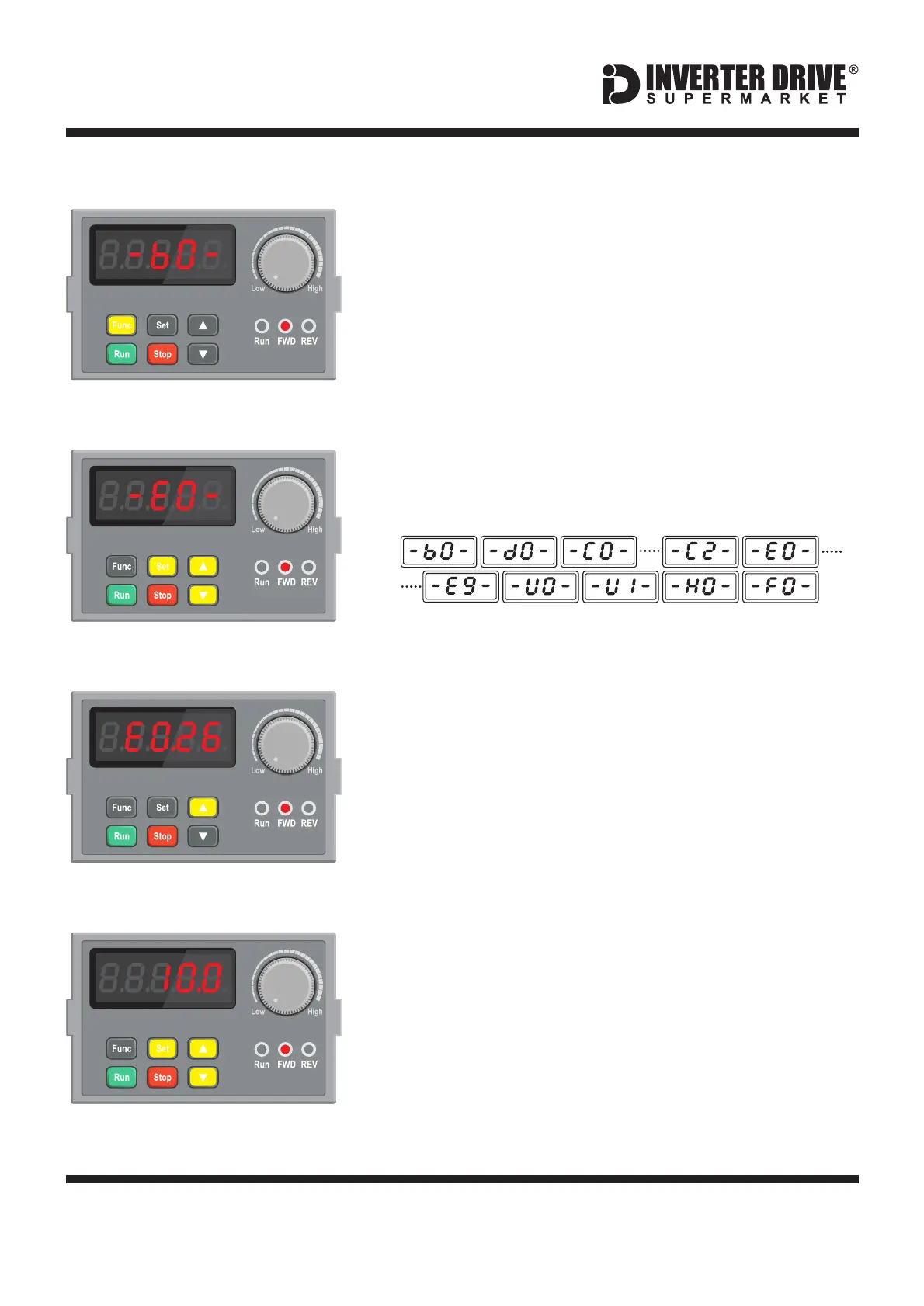

Press the “Func” key repeatedly until the display shows
“-b0-” (shown in the illustration opposite). Use the up and
down keys to cycle through the parameter groups.
6.1 Find Parameter Groups.
This example demonstrates the steps required to set
parameter E0.26 which is Acceleration time in seconds.
6.2 Find a Parameter Group eg. E0
Some parameter groups may be hidden when “Advanced
Parameters” are not enabled. Press “Set” to select “-E0-”.
There are a total of 17 parameter groups when
“Advanced Parameters” are enabled:-
6.3 Find a Parameter eg. E0.26
Use the up and down keys to navigate to parameter
E0.26. Press the “Set” key to modify the parameter value.
Note that in some cases, the value of a parameter can be
restricted by the value of another parameter.
The display will show “E0.00" to indicate parameter 00
within group E0.
Press the “Set” key to save changes. The display will
show the next available parameter.Press “Func” twice to
exit.
Use the up and down keys to increase or decrease the
value. Press and hold the up or down key to change the
value more quickly.
Note: If the keypad is not used for more than 30 seconds
the display will return to the set point value.
6.4 Change a Parameter value.
