2.1.3 Overview of Electric Connections

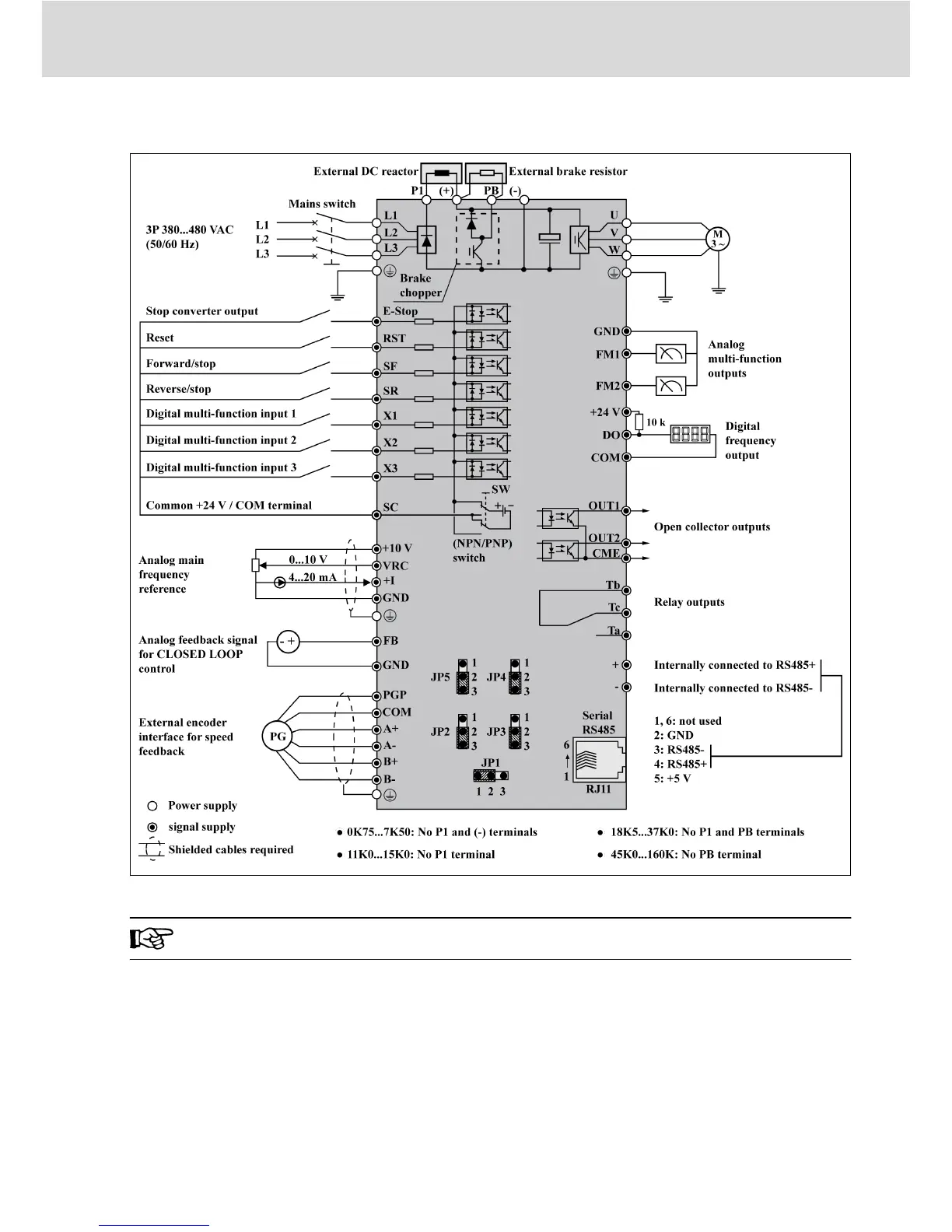

Fig. 2-1: Block diagram
Fe up to 15K0 have internal brake choppers.
Bosch Rexroth AG
Electric Installation
DOK-RCON01-FE*********-IN04-EN-P
9/31
