Form CP-MAPSIII-D21, Doc No 303070, Page 18
4.2 Alarm
Management
(cont’d)

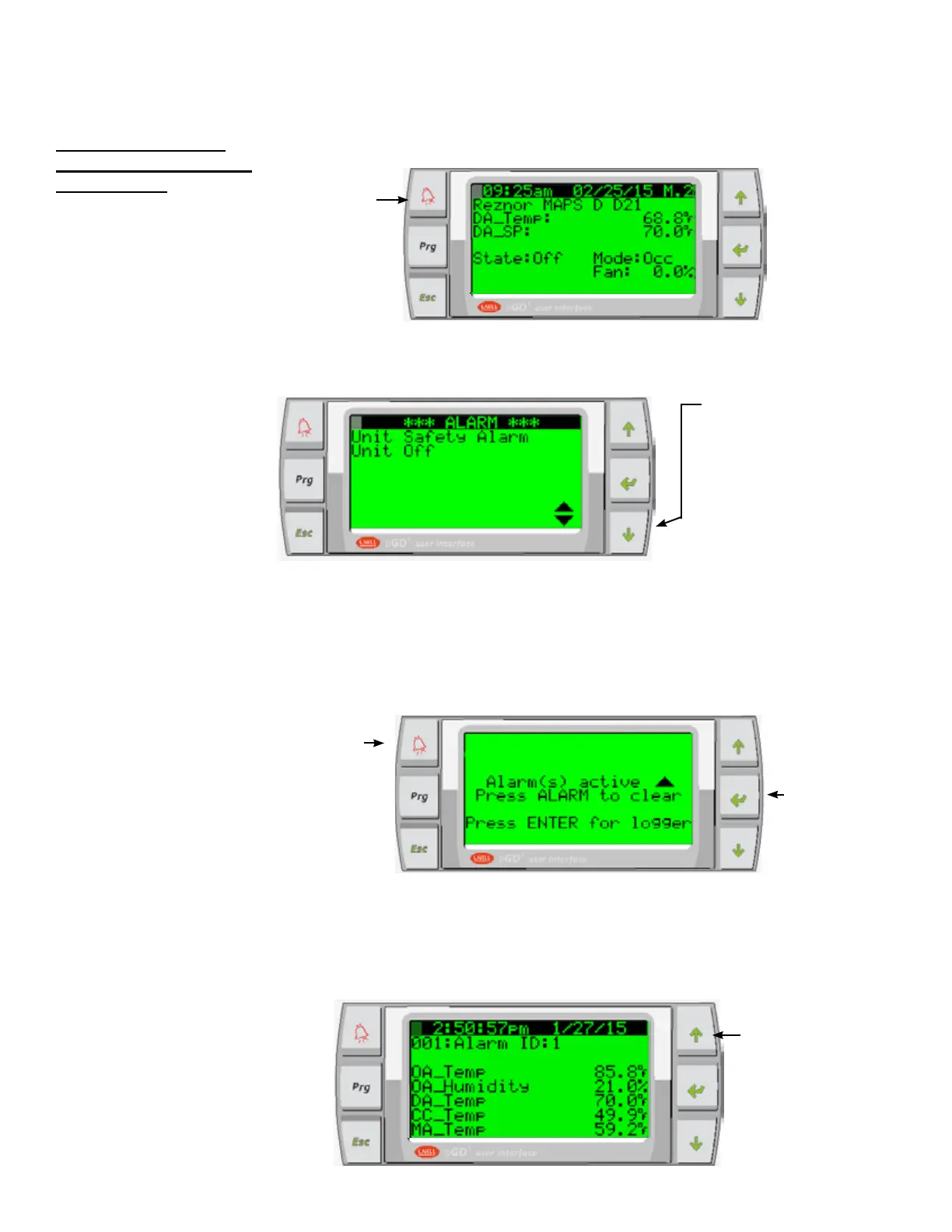

Acknowledging Unit
Alarms and Viewing the
Alarm Logger
Press the
ashing
alarm
key.
Press the down
key to scroll
through the
current list of
active and or
unacknowledged
alarms.
When a unit has an active and or unacknowledged alarm, it needs to be managed
locally from the unit controller display or from an optional PDG1 remote display.
.
The most recently queued active and or unacknowledged alarm and message will be
displayed.
When you reach the end of the queued alarm list, you will be prompted to either press
the alarm key to clear the alarms or press the enter key to display the alarm logger.
Pressing the alarm key will perform the following two functions:
1. The controller will be prompted to attempt a reset of any critical shutdown
alarms that have occurred. If the critical shutdown condition is no longer
active, the controller will re-enable the unit.
2. The controller will clear any of the non-critical alarms that are no longer active.
Pressingtheenterkeywilldisplaytherstpageofthealarmlogger.Therstpageof
the alarm logger will contain the most recently logged alarm with a date, time, Alarm ID
and a snapshot of the OA Temp, OA Humidity, DA Temp, CC Temp, and MA Temp sen-
sors at the time the alarm was logged. Pressing the up key in succession will display
any remaining logged alarms from the most recent to least recent entry.
Up Key
Alarm
Key
Enter
Key
To Next Page
