6.0 Controller
History Log
Hardware Inputs, Outputs, and selected setpoints listed in the Setpoint History Log
Tablewillbesampledinve-minuteintervals.Thehistorylogwillrolloverwhenthe
datallstheavailablelogspace.

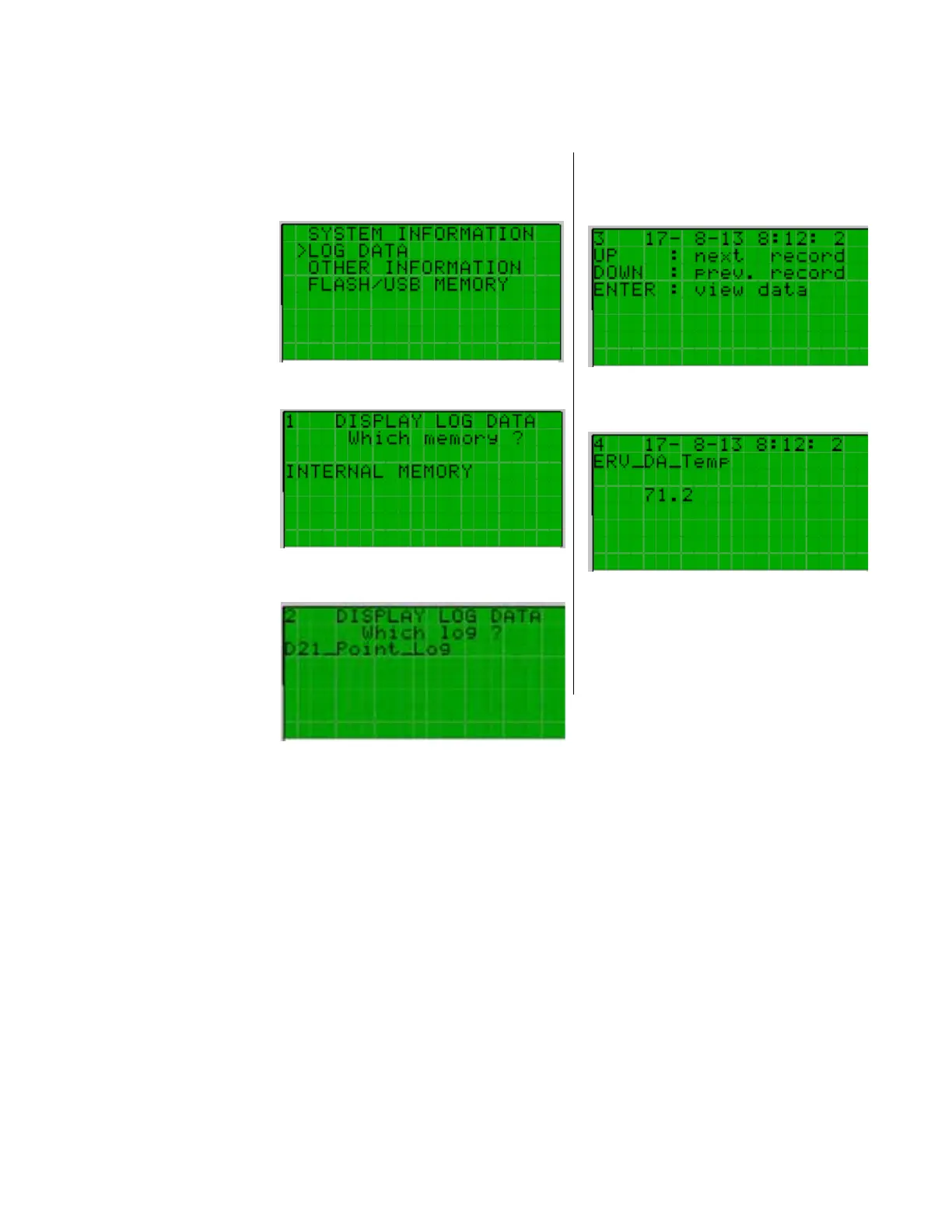

To access the controller history log:
Press the alarm and enter key simultane-
ously for 5 seconds and the system bios
screen will appear. Use the down key to
select LOG DATA and press enter.
The #1 DISPLAY LOG DATA screen will
appear. Press the enter key to advance.
The #2 DISPLAY LOG DATA screen will
appear. Press the enter key to advance.
The #3 record selection screen will
appear. Use the up and down keys to
select the desired record by date and
time and press enter to view the data.
Use the up and down keys to scroll
through the history log point values for
that date and time record.
Press the escape key in succession to
return to the previous screens.
