RF Mogul Eagle User Manual

19 | P a g e
RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20

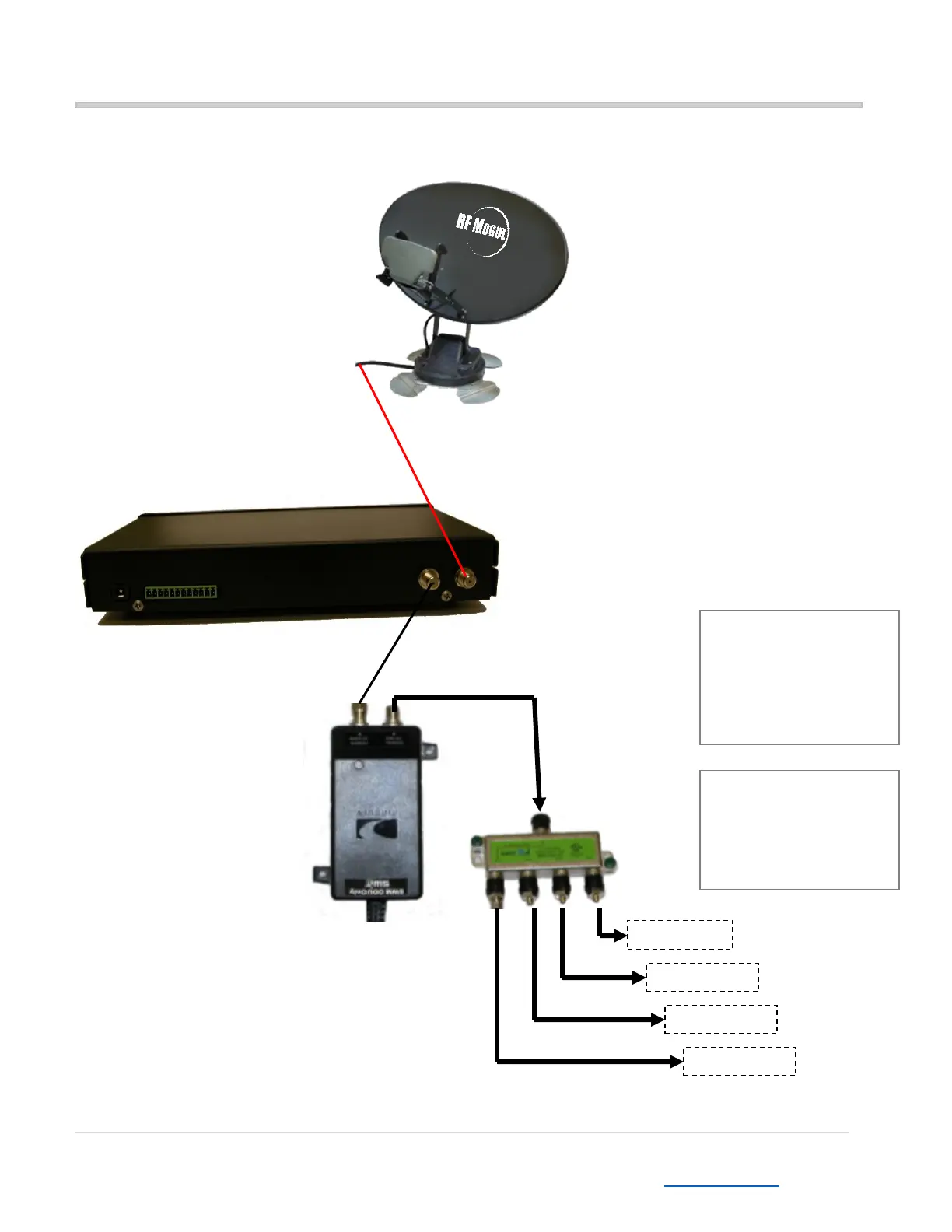

DirecTV SWM Connection Diagram
Note: This installation does not represent the Genie 3 that has a built in Power Inserter.
Receiver #1
Receiver #2
Receiver #3
Receiver #4
Note:
The SWM LNB has 8 channels
available. Each DVR takes 2
channels (one coax).
A non-DVR uses one channel
(one coax). You may use any
combination of receivers until
you use up all 8 channels.
Example: A HR34 uses 5
channels leaving 3 channels
available.
A 2, 4 and 8 Port splitters
are available,
A 4 Port splitter is
shown.
110 Volts AC
21 Volt Power Inserter
used.
Do not use a 29-volt
Power Inserter with an
RF Mogul System.
Receiver LNB
Eagle Controller
LNB Coax

RF Mogul Eagle Specifications

General

Brand	RF Mogul
Model	Eagle
Category	Satellite TV System
Language	English
