RF Mogul Eagle - SHAW Connection Diagram

20 | P a g e
RF MOGUL 3604 South Via Terra Salt Lake City, Utah 84115 Sales: 801-895-3392 Email: sales@rfmogul.com Rev 8/20

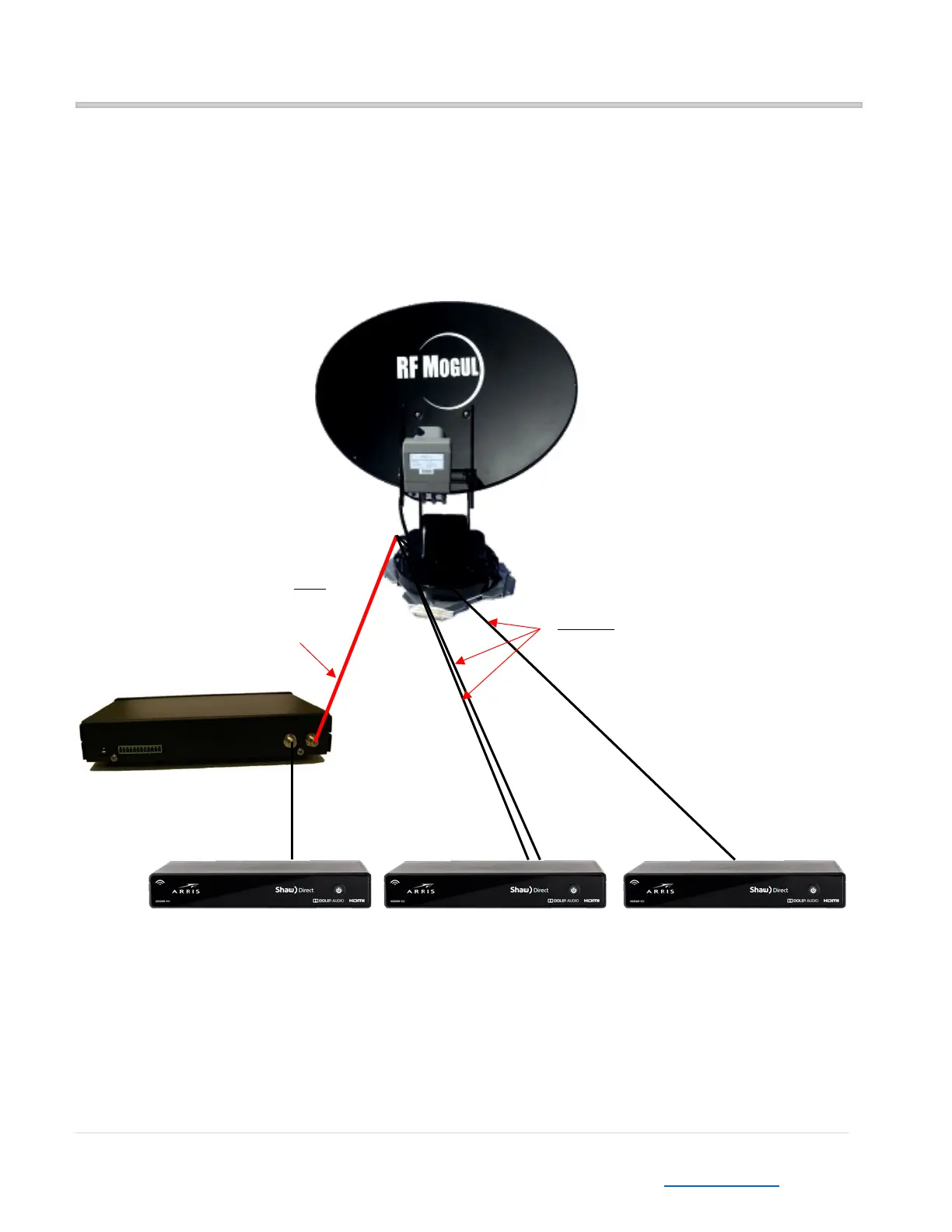

SHAW Connection Diagram
The SHAW system can be ordered with 4 coax cables. Standard configuration of the RF Mogul
Antenna System includes 3 coax cables unless it is specifically ordered with 4. Most RV installations
can operate with 3 (2 receivers, 1 Non-DVR and 1 Dual Tuner). Some SHAW DVR’s take only 2 coax
cables as single tuner Non-DVR receivers use only 1 coax. One coax cable must come directly
through the Eagle Controller and then route to a Non-DVR or DVR receiver.
Receiver LNB
LNB Coax must run
directly to the
controller from the
antenna
Non-DVR
DVR Dual Tuner
(2 coax cables)
Non-DVR
Optional Coax comes
directly from the antenna
to additional DVR’s
Eagle Controller
