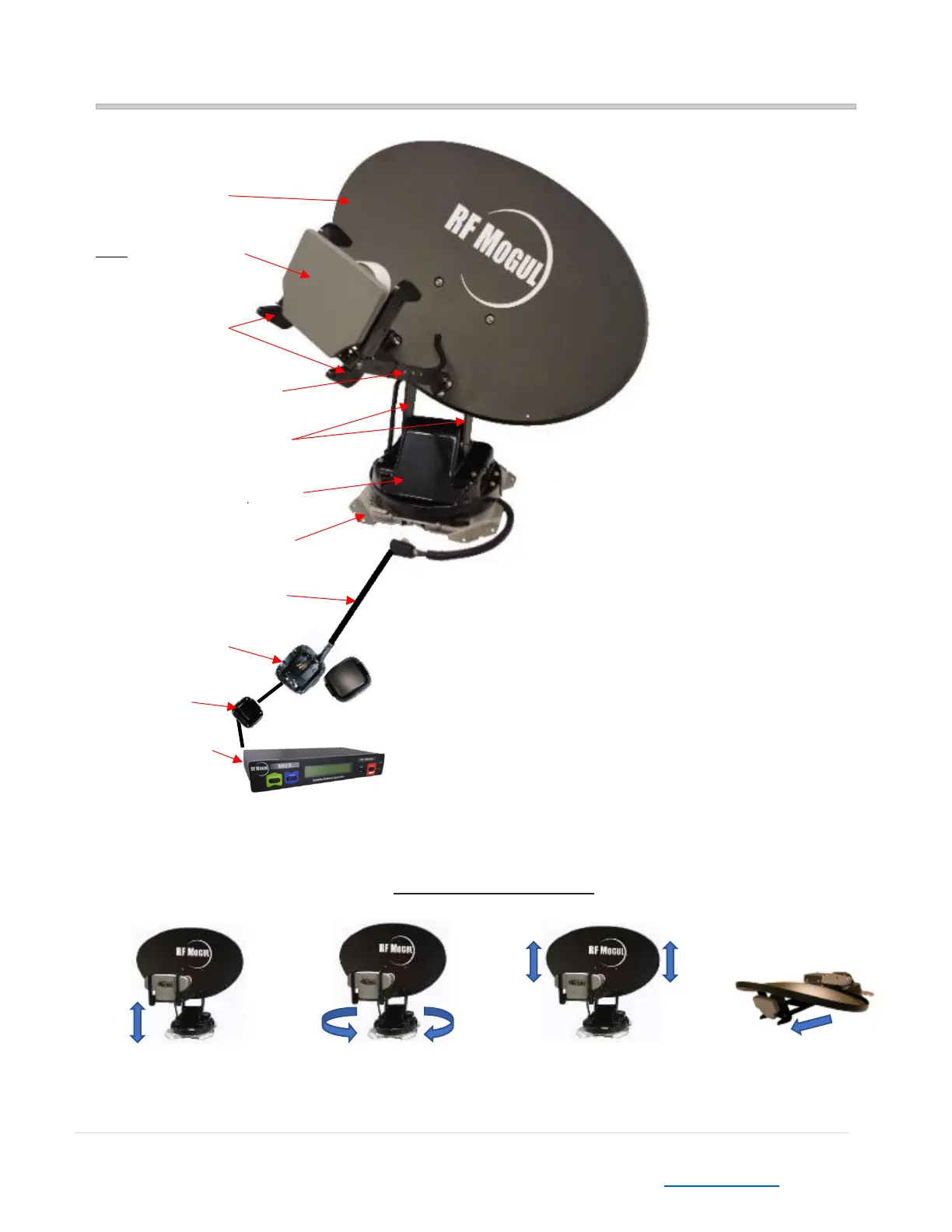

Eagle TV Parts and Movement Definitions
Elevation (EL)
Raises Up and Down
Azimuth (AZ)
Rotates CW and CCW
Skew (SK)
Reflector Tilt Up and Down
Stowed
(travel
position)
Items Included with the System:
1 ea. EAGLE Controller
1 ea. Mount base assembly
1 ea. Reflector
1 ea. LNB Arm Assembly w/LNB
2 ea. Stow Brackets
1 ea. LNB Landing Plate
25 ft Control Cable
1 ea. Clam Shell
1 ea. Weather Cover
6 ea. 1/4x20x3/4 screws
1 ea. Connector, green, 12 pins
1 ea. Power Supply, 12 VDC 7 amp
1 ea. Owner’s Manual
Reflector
or Dish
LNB Arm Assembly
Elevation Arms
Mount Base
and covers
Mounting Feet
LNB (DirecTV SWM shown)
Note: LNB’s vary by shape
depending on your service
provider.
Stow
Brackets
Control & Coax
Cables
Mount Movements
Eagle Controller
Clam Shell
(For roof
entry)
Weather cover
connector box

RF Mogul Eagle Specifications

General

Brand	RF Mogul
Model	Eagle
Category	Satellite TV System
Language	English
