Eagle Controller (IDU) Operations

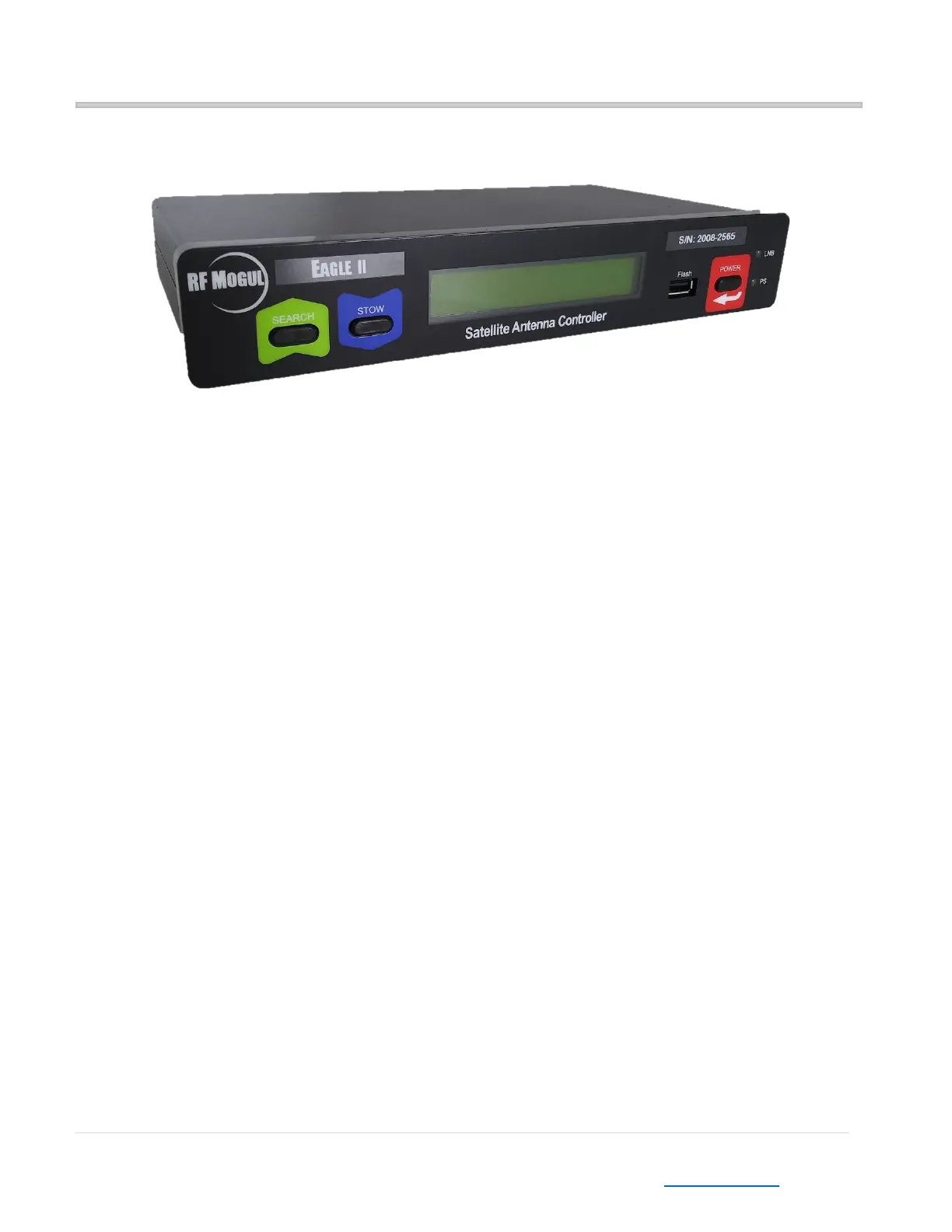

FRONT VIEW Definitions
SEARCH
Directs the system to "SEARCH" Satellites.
Navigates through the menu and selects a specific function.
STOW
Directs the system to "STOW" the mount and prepare it for travel
Navigates through the menu and selects a specific function.
LCD Display
Displays the actions of the system.
USB Programming Port
Used for upgrading firmware.
POWER
Will turn controller ON and OFF.
2
nd
push navigates through the Menu options.
LED
REC indicates the receiver coax is attached to the controller.
VDC indicates power is being supplied to the controller by the provided Power Supply.
