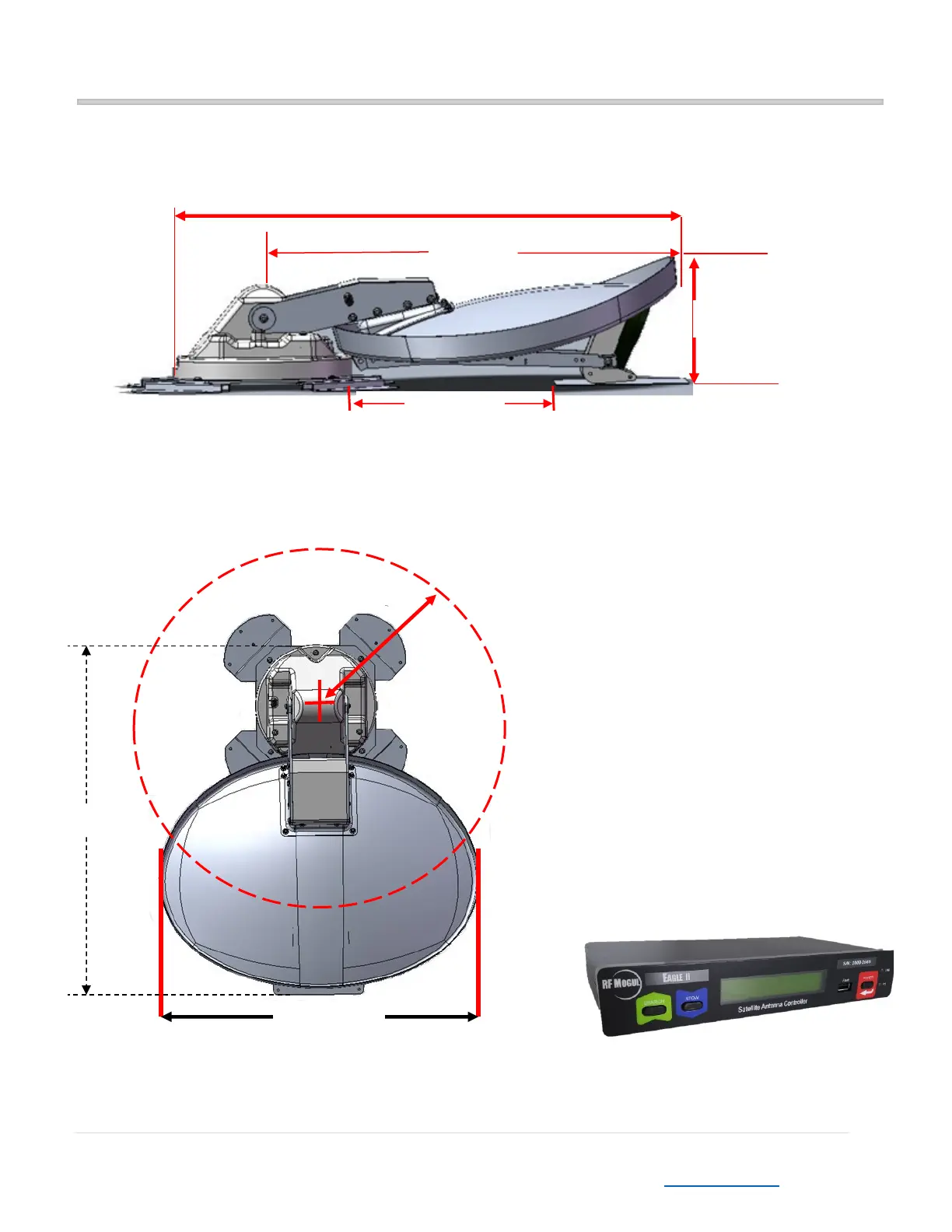

Clearance Requirements
The arm of the Eagle antenna extends 26” from the center of the base. Ensure there is adequate rotational
clearance for the antenna to safely operate.
37 Inches
8.5 Inches
33.5 Inches
Rotational clearance from center
rotation point is 26 inches when dish is
elevated and rotating. This is a safety
zone. Anything higher than 6 inches
within this zone is at risk.
10" Wide x 6” Deep x 2” High
13.5 Inches
Distance for installing LNB
Landing Plate
Safety Zone
26 Inch radius
29 Inches
37 inches
CONTROLLER Dimensions
